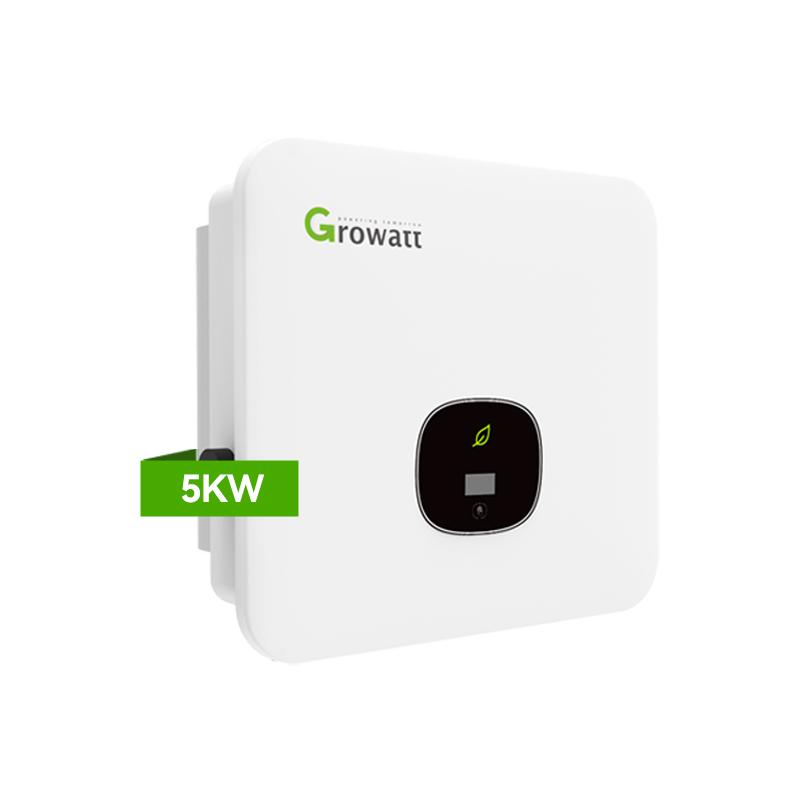

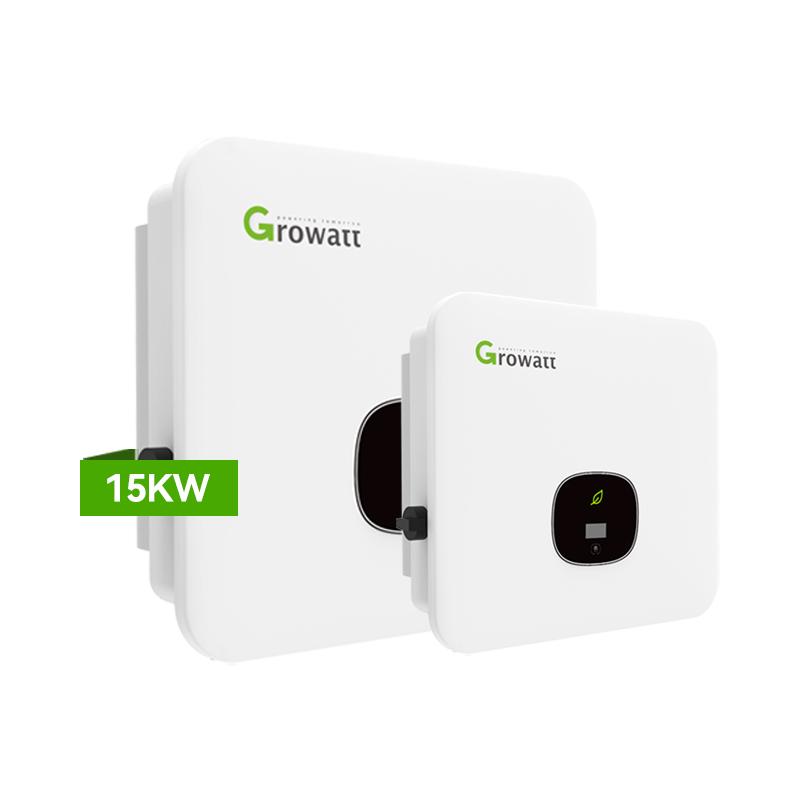

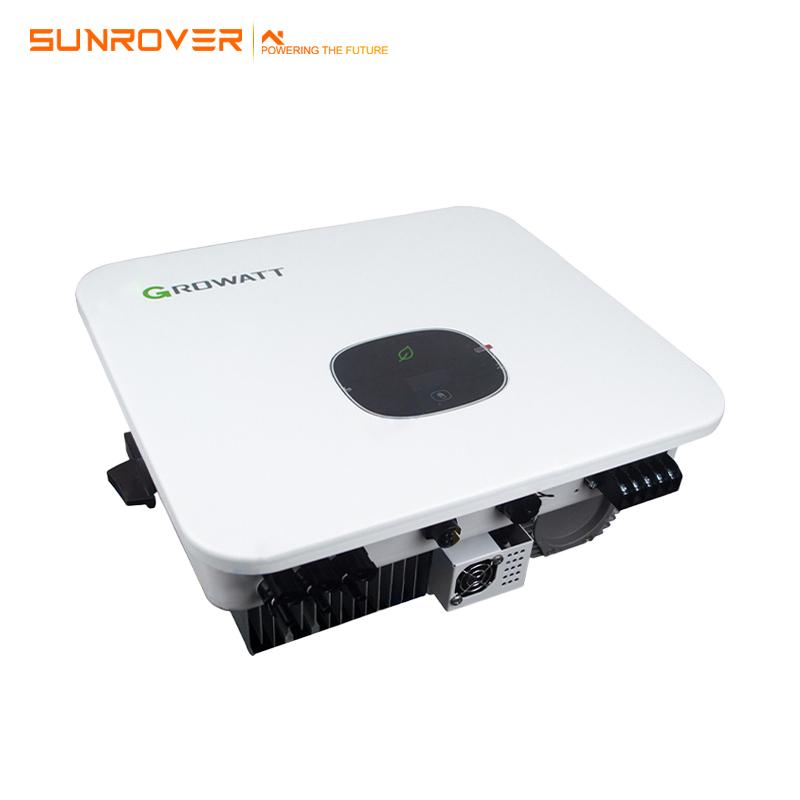

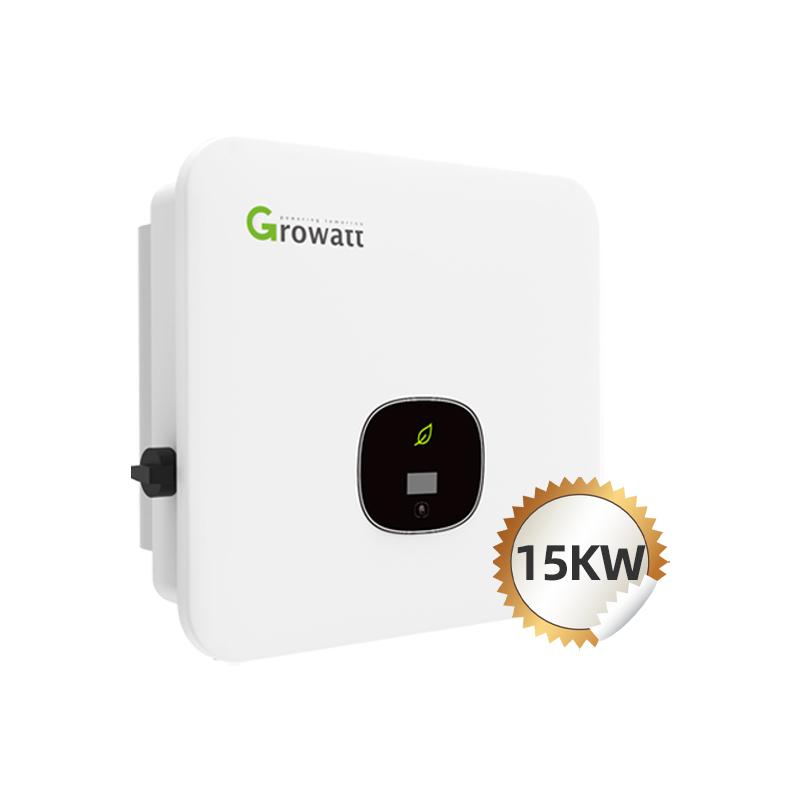

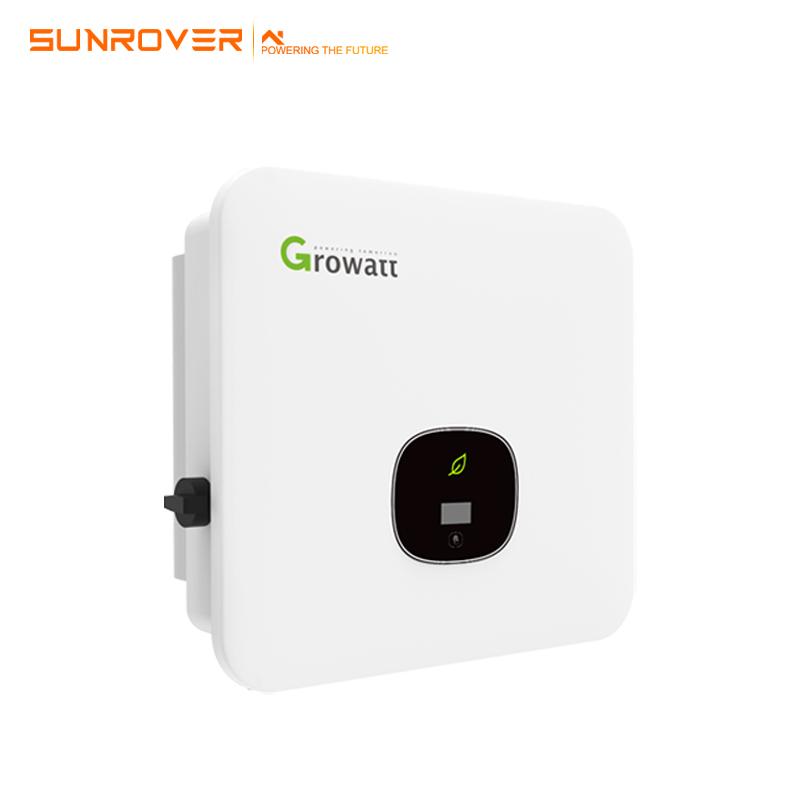

5kw 10kw 15kw Growatt on grid solar inverter hot in Europe
5kw 10kw 15kw Growatt on grid solar inverter hot in Europe
Item NO.:
MAC 30-60KTL3-X LVShipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pWeight：
52kgItem NO.:
Type:
Grid TieMax.Power:
60kwOutput Voltage:
400V 3PhasePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5years5kw 10kw 15kw Growatt on grid solar inverter hot in Europe
This type of inverter is well protected and easy to install.
Our company designs, develops and manufactures photovoltaic inverters, energy storage systems and intelligent energy management systems, which can provide high-quality full scene distributed energy solutions for global households, industrial and commercial users. Our inverter models and power are complete, and they have good applications in various fields. With high power generation efficiency and excellent performance, We are very good inverter brands. All aspects are guaranteed.
| Model Type | MOD 5000KTL3-X | MOD 10KTL3-X | MOD 15KTL3-X |
| Input Data(DC) | |||
| Max.recommended PV power (for modules STC) |
7500W | 15000W | 22500W |
| Max.DC voltage | 1100V | ||
| Start voltage | 200V | ||
| Nominal voltage | 580V | ||
| MPP voltage range | 140V-1000V | ||
| No.of MPP trackers | 2 | ||
| No.of PV string per MPP tracker | 1 | 1 | 2/1 |
| Max.input current per MPP tracker | 13A | 26A/13A | |
| Max.short-circuit current per MPP tracker | 16A | 32A/16A | |
| Output Data(AC) | |||
| AC nominal power | 5000W | 10000W | 15000W |
| Max.AC apparent power | 5000VA | 11000VA | 16500VA |
| Nominal AC voltage range | 220V/380V,230V/400V(340-440V) | ||
| AC grid frequency range | 50/60Hz(45-55Hz/55-65Hz) | ||
| Max.output current | 8.3A | 16.7A | 25A |
| Adjustable power factor | 0.8 leading…0.8 lagging | ||
| THDi | ﹤3% | ||
| AC grid connection type | 3W+N+PE | ||
| Efficiency | |||
| Max.efficiency | 98.30% | 98.60% | |
| European efficiency | 97.50% | 98.10% | 98.20% |
| MPPT efficiency | 99.90% | ||
| Protection Devices | |||
| DC reverse polarity protection | yes | ||
| DC switch | yes | ||
| AC/DC surge protection | Type II/Type III | ||
| Insulation resistance monitoring | yes | ||
| AC short-circuit protection | yes | ||
| Ground fault monitoring | yes | ||
| Grid monitoring | yes | ||
| Anti-islanding protection | yes | ||
| Residual-current monitoring unit | yes | ||
| AFCI protection | Optional | ||
| General Data | |||
| Dimensions(W/H/D) | 425x387x147mm | 425x387x178mm | |
| Weight | 12.5kg | 14kg | 16kg |
| Operating temperature range | -25℃-+60℃ | ||
| Nighttime power consumption | ﹤1W | ||
| Topology | Transformerless | ||
| Cooling | Natural convection | ||
| Protection degree | IP 66 | ||
| Relative humidity | 0-100% | ||
| Altitude | 4000m | ||
| DC connection | H4/MC4 (Optional) | ||
| AC connection | Connector | ||
| Display | OLED+LED/WIFI+APP | ||
| Interfaces:RS485/USB/WIFI/GPRS/RF/LAN | Yes/Yes/Optional/Optional/Optional/Optional | ||
| Warranty:5 years/10 years | Yes/Optional | ||
| CE,VDE0126,Greece,EN50549,C10/C11,UTE C 15-712,IEC62116,IEC 60068,IEC 61683,CEI0-21,N4105,TOR Erzeuger,G98/G99,G100,AS4777,UNE217001,UNE206007,PO12.2 | |||
Details
Stock
| Overview | |
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | GROWATT |
| Model Number: | MAX 50-80KTL3-LV |
| Input Voltage: | 585V-600V |
| Output Voltage: | 230V /380V(340-400V) |
| Output Current: | 48.3A-96.6A |
| Output Frequency: | 50/60Hz |
| Output Type: | Single, DUAL, Triple |
| Size: | 860*600*300mm |
| Type: | DC/AC Inverters |
| Inverter Efficiency: | 98.80% |
| Certificate: | CE,TUV |
| Warranty: | 5 Years |
| Weight: | 82kg |
| Topology: | Transformerless |
| Protection Level: | IP65 |
| Cooling: | Smart Air Cooling |
| Self-Consumption: | <1W |
| Operating Temperature: | -25~60℃ |
| Product name: | Solar Inverter |
| Application: | Commercial Rooftop Inverter |
| Communications: | WiFi/GPRS/4G |
| Short circuit protection: | Yes |
| OEM: | Yes |
| Supply Ability | |
| Supply Ability | 10000 Set/Sets per Week |
| Packaging & delivery | |
| Packaging Details | carton and pallet,standard international package |
| Port | Shanghai/Ningbo Port |
| Lead time: | Quantity(pieces) | 1 - 10 | >10 |
| Lead time (days) | 15 | To be negotiated |
|
Model |
SUN10K-KTL |
SUN15K-KTL |
SUN20K-KTL |
SUN25K-KTL |
SUN30K-KTL |
SUN33K-KTL |
|
|
DC Input |
Max. DC Voltage |
1100V |
|||||
|
MPPT Voltage Range |
250V- 1000V |
||||||
|
Max. Input Current of Each MPPT |
13A |
26A/13A |
26A |
39A |
|||
|
Number of DC Inputs |
2 |
3 |
4 |
6 |
|||
|
MPPT Number |
2 |
||||||
|
AC Output |
Rated Output Power |
10kW |
15kW |
20kW |
25kW |
30kW |
33kW |
|
Max. Active Power (cos0s1) |
11kw |
16.5kW |
22KW |
27.5kW |
33kW |
36.3kW |
|
|
Rated Output Voltage |
400V (Three Phase) |
||||||
|
Operating Voltage Range |
400V±20% |
||||||
|
Rated Output Current |
14A |
22A |
29A |
36A |
43.3A |
47.6A |
|
|
Max. Output Current |
16A |
24A |
32A |
39.7A |
47.6A |
||
|
Rated Grid Frequency |
50 Hz/60Hz |
||||||
|
Powr Factor |
0.8(Leading) ~0.8(Lagging) |
||||||
|
THD |
<3% |
||||||
|
System Parameters |
Max. Efficiency |
98.60% |
98.61% |
98.63% |
98.94% |
99.00% |
98.80% |
|
European Efficiency |
98.30% |
98.26% |
98.50% |
98.26% |
|||
|
Protection Level |
IP65 |
||||||
|
Operating Temperature Range |
-40℃~+60℃ |
||||||
|
Cooling System |
Natural Cooling |
Smart Air Cooled |
|||||
|
Standby Power Consumption |
<1W |
||||||
|
Topology Structure |
Transformerless |
||||||
|
Operating Altitude |
5000m (Derating above 4000m) |
||||||
|
Display |
LED Indicator+ APP |
||||||
|
Communication |
RS485 / WiFi / GPRS |
||||||
|
Certification |
IEC62109, IEC61000, IEC62116, IEC61727, EN50549, CQC, CGC |
||||||

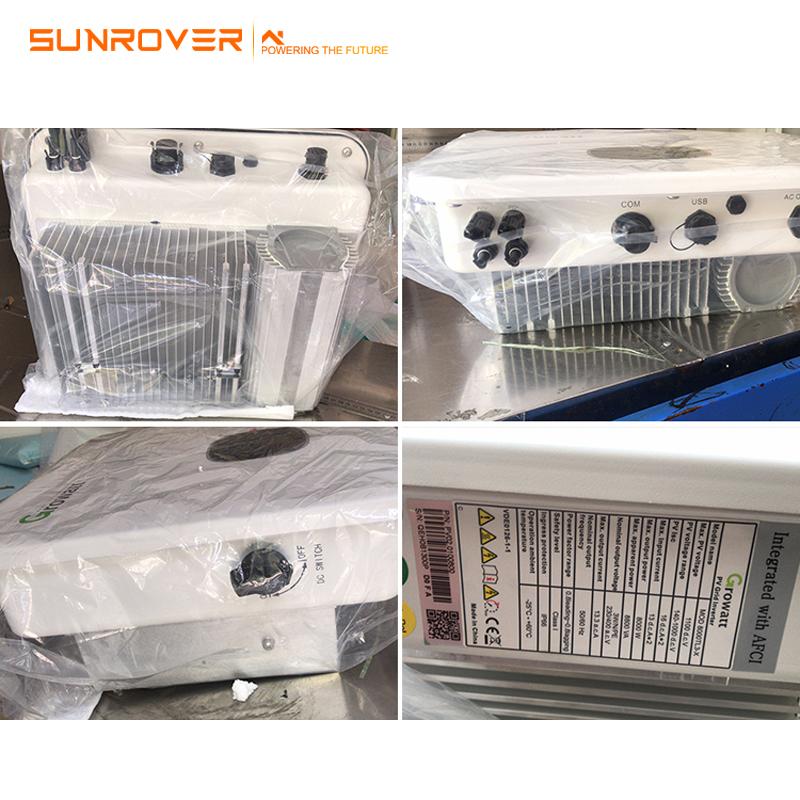

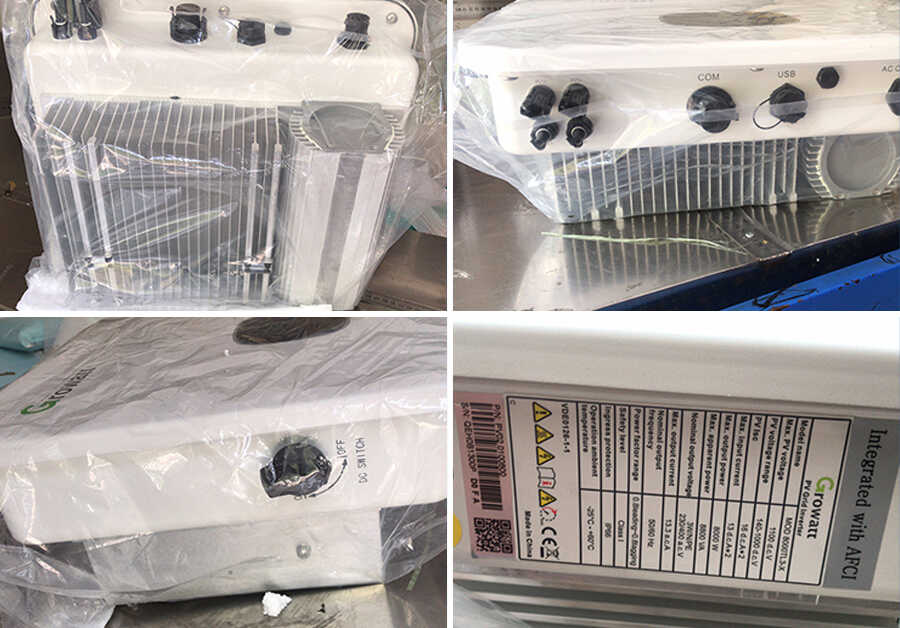

Packaging

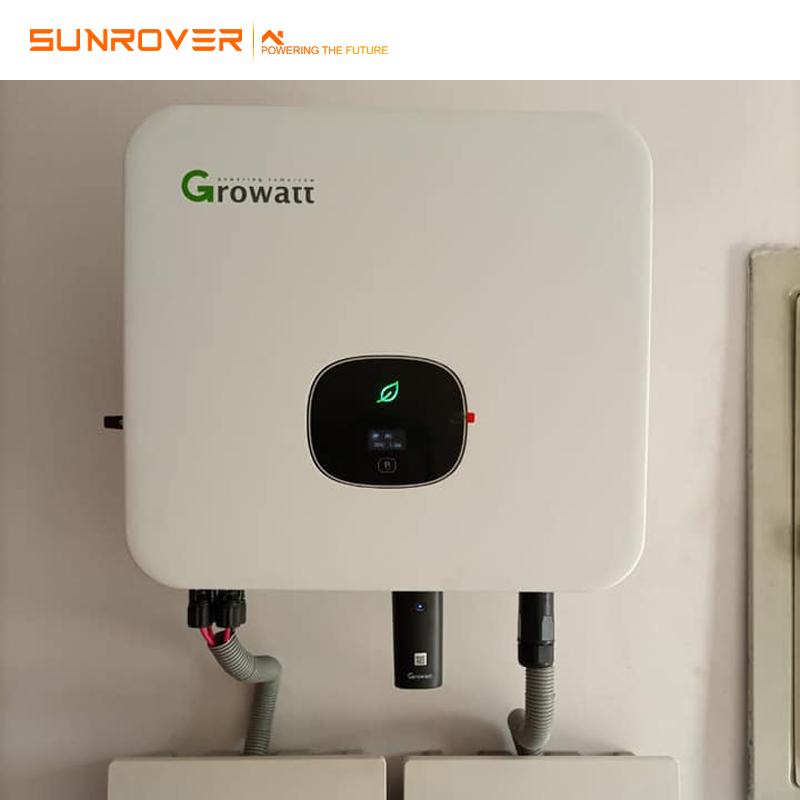

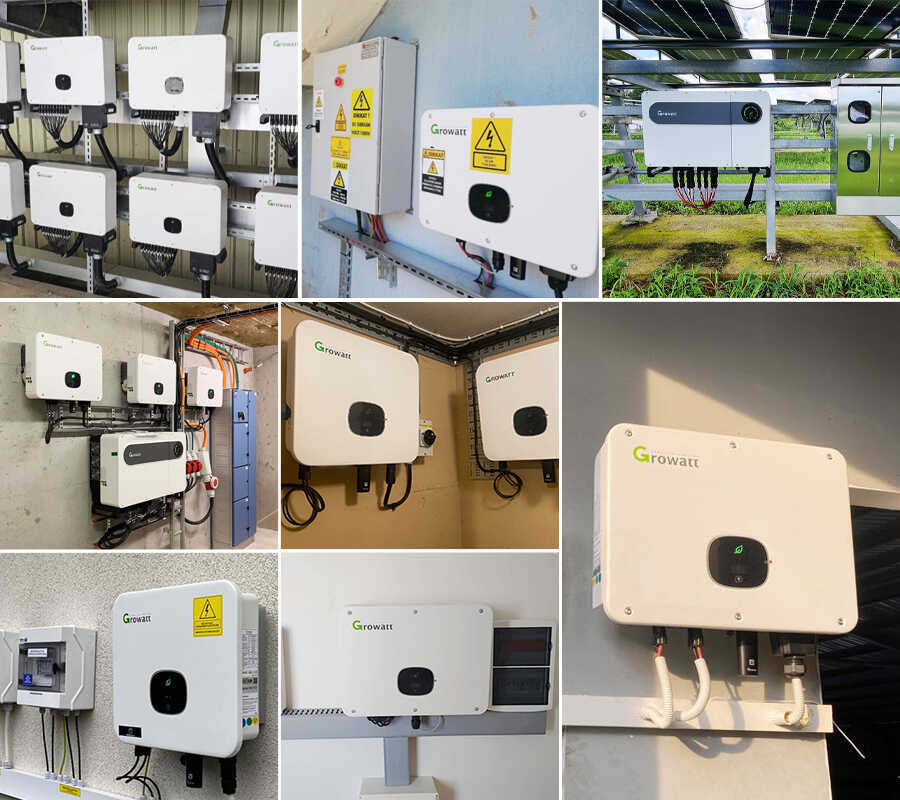

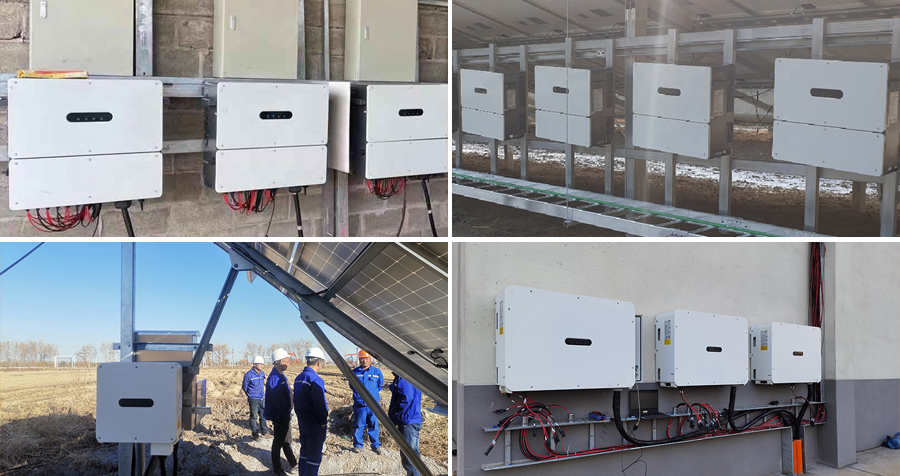

Projects
