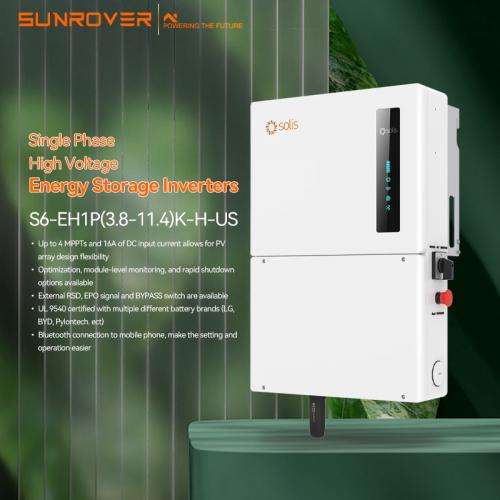

S6-EH1P(3.8-11.4)K-H-US
S6-EH1P(3.8-11.4)K-H-US Models 3.8K 5K 7.6K 9.9K 10K 11.4K DC Input (PV) Max. input voltage 600 V Rated voltage 380 V Start-up voltage 80 V MPPT voltage range 80-520 V Max. input current per string 16 A Max. short circuit current per string 25.6 A Number of MPPTs/Number of strings per MPPT 2/1 3/1 4/1 Energy Storage Battery type Lithium-ion Battery voltage range 120-500 V Maximum charge/discharge current 25 A 50 A Battery communication CAN/RS485 Number of batteries per inverter See Battery Compatibility Sheet AC Output (Grid) Rated output power 3.8 kW 5 kW 7.6 kW 9990 W 10 kW 11.4 kW Max. apparent output power 3.8 kVA 5 kVA 7.6 kVA 9990 VA 10 kVA 11.4 kVA Rated output voltage 240 V Rated frequency 60 Hz Rated output current 15.8 A 20.8 A 31.7 A 41.7 A 41.7 A 47.5 A Max. output current 15.8 A 20.8 A 31.7 A 41.7 A 41.7 A 47.5 A THDi <3% AC Input (Grid) Input voltage range 211-264 V Max. input current 23.8 A 31.2 A 47.6 A 62.6 A 62.6 A 71.3 A Frequency range 58.8-61.2 Hz AC Output (Backup and Off-grid) Rated output power 3.8 kW 5 kW 7.6 kW 9990 W 10 kW 11.4 kW Max. apparent output power 6.1 kVA, 10 sec 8 kVA, 10 sec 12.2 kVA, 10 sec 16 kVA, 10 sec 16 kVA, 10 sec 18.2 kVA, 10 sec Back-up switch time <10 ms Phase Power 240 V Split-Phase Rated output voltage (L1-L2) 240 V AC output voltage range 211-264 V Rated grid frequency 60 Hz Frequency range 55-65 Hz Rated AC output current 15.8 A 20.8 A 31.7 A 41.7 A 41.7 A 47.5 A Max. output overcurrent protection, 10 sec 25.4 A 33.3 A 50.7 A 66.7 A 66.7 A 76 A Max. allowable phase imbalance 100% Backup support configurations Whole-home and dedicated loads Power factor >0.99 (0.8 leading - 0.8 lagging) THDv (@linear load) <3% Efficiency PV Max. efficiency 97.0% 97.6% PV CEC efficiency 96.5% 97.0% Battery charged by PV Max. efficiency 98.5% Battery charged/discharged to AC Max. efficiency 97.0% Protection Ground fault detection Yes Residual (leakage) current detection Yes Integrated AFCI Yes DC reverse-polarity protection Yes (PV only) Manual inverter bypass switch Yes Rapid Shutdown NEC 2017 Integrated SunSpec-certified Transmitter Compatible RSD Receivers See MLRSD Compatibility Sheet Protection class/Over voltage category I/II General Data Dimensions (W*H*D) 19.21*28.35*8.66 in (490*720*220 mm) 22.05*29.53*8.66 in (560*750*220 mm) Weight 52.43 lbs lbs (23.78 kgs) 71.74 lbs (32.54 kgs) Topology Transformerless Self-consumption (night) < 20 W Operating ambient temperature range -13 °F to 140 °F (-25°C to 60°C) Ingress protection TYPE 4X Cooling method Natural convection Mounting type Wall Bracket Max. operation altitude 13,120 ft (4000 m) Compliance UL 1741, UL 1741SB, IEEE1547-2018&2020, UL 1699B, UL 1998, California Rule 21, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B Generator support Yes; up to 25 kW (with a Solis Hub) Features DC connection 1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals AC connection 1.5 in. knockouts for conduit (x3) on the side and bottom; Spring clamp terminals Interface LED indicator lights, Bluetooth/Mobile application Monitoring platform SolisCloud (modbus map and API sharing available upon request) Revenue Grade Meter Integrated ANSI C12.20 option Communication RS485, Cellular, Wi-Fi, Optional: LAN Integrated RSD Transmitter Brands See the MLRSD Compatibility Sheet
