CATL Cell 48v 100Ah Rack mounted lifepo4 battery for household energy storage
CATL Cell 48v 100Ah Rack mounted lifepo4 battery for household energy storage
Item NO.:
48v 100Ah Rack mountLead Time：
7-15 DaysPayment:
30% deposit, balance paid before shippingWarranty:
10yearsCycle life:
8500CATL Cell 48v 100Ah Rack mounted lifepo4 battery for household energy storage
Our Advantages:
Long life and safety
Vertical industry integration ensures more than 6ooo cycleswith 80% DoD.
Safe Lithium iron phosphate battery cell.
lntelligent
Each battery with independent BMS system manages poweroutput smartly and effectively.
Modularization
Modular design gives the end customers the power ofchoice of capacity Deliver up to 14oKW with single maxmodule (10.24KWh) at 14pcs parallel connection.
Easy to install and use
Just plug and play to minimize the installation time and cost.
Compact and fashionable design fits in your sweet homeenvironment.
Compatiblity
Compatible with most of the available Hybrid inverters.
Safety Cert
UL1642, IEC62619,CE. UN38.3,MSDS.
| Basic Parameters | Numerical |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(WH) | 5120WH |
| Usable Capacity(WH) | 4600WH |
| Discharge Voltage(V) | 40V |
| Charge Voltage(V) | 58.4V |
| Recommend Charge/Discharge Current(A) | 50A |
| Max.Charge/Discharge Current(A) | 100A |
| Communication | RS485/RS232/CAN |
| Working Temperature | 0℃-50℃ Charge;-10℃-50℃ Discharge |
| Shelf Temperature | -20℃-60℃ |
| Certification | CE/IEC/UL/UN38.3/MSDS |
| Design Life | 10 years+ |
| Cycle Life | ﹥6000 |

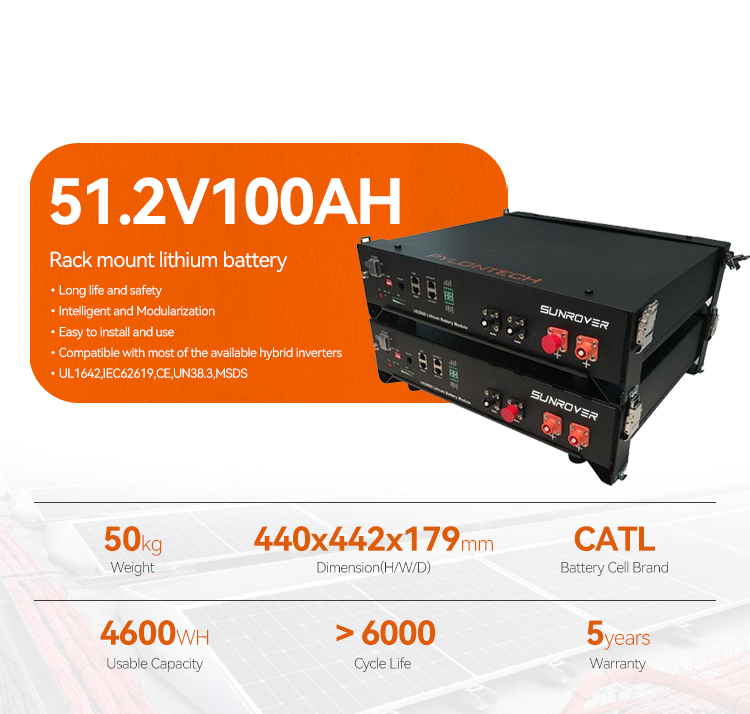

| Product | Nominal Voltage | Nominal Capacity | Dimension | Weight |
| 51.2V100AH | DC 51.2V | 100AH | 440x442x179mm | 50kg |
Long life and safety
Vertical industry integration ensures more than 6ooo cycleswith 8o% DoD.
Each battery with independent BMS system manages poweroutput smartly and effectively.
Modular design gives the end customers the power ofchoice of capacity Deliver up to 163KW with single maxmodule (1o.24KWh) at 16pcs parallel connection.
Just plug and play to minimize the installation time and cost.Compact and fashionable design fits in your sweet homeenvironment.
Compatible with most of the available Hybrid inverters.Safety Cert
