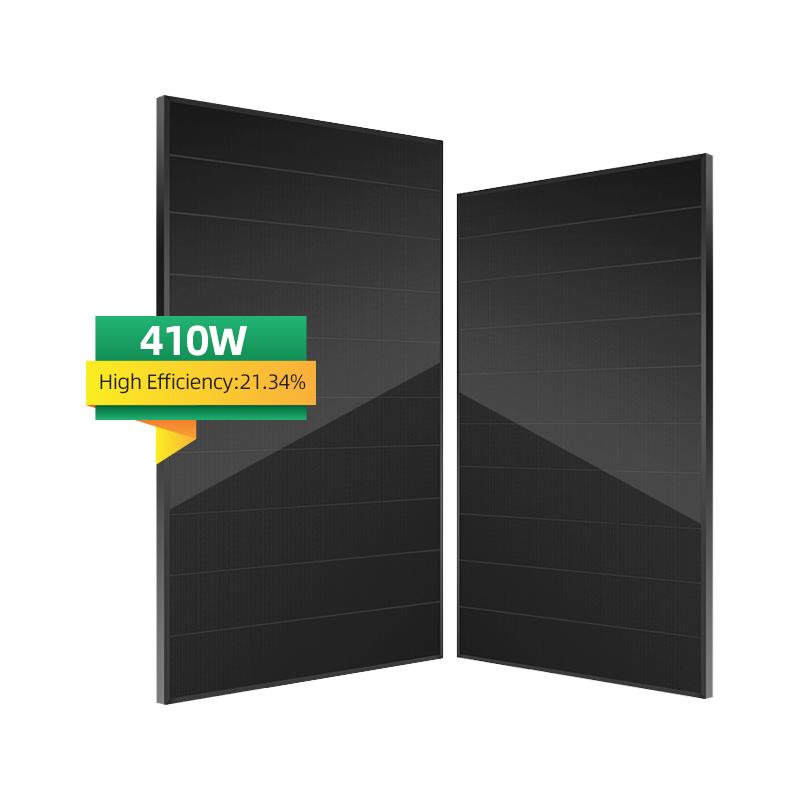

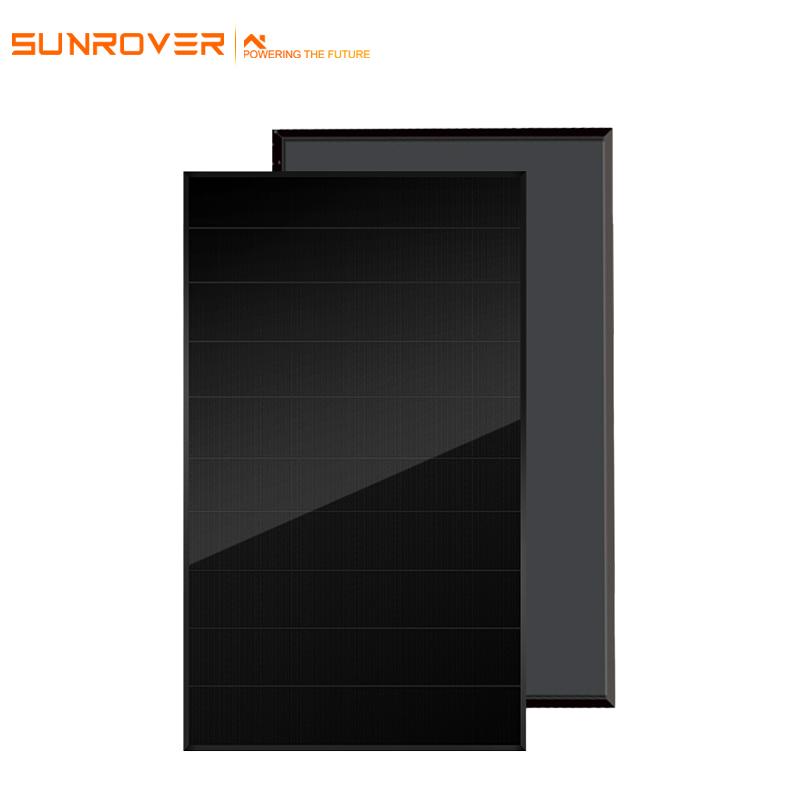

High efficiency factory price all black shingled mono solar panels

High efficiency factory price all black shingled mono solar panels

  • Order(MOQ):

    40HQ
  • Product Origin:

    china
  • Color:

    black
  • Shipping Port:

    shanghai/ningbo
  • Lead Time:

    5days(1—100000w);7days(100001 —10000000w
  • Weight:

    20kg
  • Cell Type:

    Mono crystalline
  • No.of cells:

    210mm
  • Dimensions:

    390w-410w(1723×1134×35mm);410w-430w(1723×1134×35mm);540w-560w(2158×1236×35mm);
  • Weight:

    390w-410w(20.5kg);410w-430w(1723×1134×35mm);540w-560w(2158×1236×35mm);
  • Certificate:

    CE/TUV
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Warranty:

    25years

High efficiency factory price all black shingled mono solar panels

In recent years, the cost control of laminated tile components has been excellent. The product price has a high cost performance ratio in the terminal market. The more efficient and advantageous terminal price has broken through the cost barrier between the high-end market and the mainstream market, allowing customers to have the product value in the high-end market at the product price of the mainstream market. The shingles adopt a pioneering battery performance optimization process, which further improves the current collection capacity of a single battery. The high concentration P-type battery arrangement is used to achieve the maximum module power of 670W, the power generation efficiency of more than 21%, and the maximum efficiency of 21.8%. It is the highest power module that can be mass produced in a short period of time in the whole industry, and also represents the most advanced component industrialization technology.





Module SUN390-DE21M SUN395-DE21M SUN400-DE21M SUN405-DE21M SUN410-DE21M
Maximum Power(Pmax) 390W 395W 400W 405W 410W
Maximum Power Voltage(Vmp) 38.40V 38.50V 38.60V 38.70V 38.80V
Maximum Power Current(Imp) 10.16A 10.26A 10.36A 10.47A 10.57A
Open-circuit Voltage(Voc) 46.20V 46.30V 46.40V 46.50V 46.60V
Short-circuit Current(Isc) 10.87A 10.92A 10.97A 11.02A 11.07A
Module Efficiency STC(%) 20.32% 20.58% 20.85% 21.10% 21.34%
Operating Temperature() -40~+85
Maximum system voltage 1000/1500V DC(IEC)
Maximum series fuse rating 20A
Power tolerance 0-5W
Temperature coefficients of Pmax -0.340%
Temperature coefficients of Voc -0.270%
Temperature coefficients of Isc 0.04%
Nominal operating cell temperature(NOCT) 42.3±2



Essential details
Place of Origin: Anhui, China
Brand Name: Sunrover
Model Number: SUN420-60FB 420W
Cell size: 182mmx182mm
Type: PERC, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV, Overlapping, shingled mono Solar Panel
Panel Dimensions: 1719*1140*35mm
Panel Efficiency: 21.10%
Certificate: TUV/ETL/CE, complete international certificates
Warranty: 25years
Product name: TUV certified 420watt solar panel 700w for electricity
Solar cell: Mono crystalline 182x182mm
Number of Cells: 120cells
Weight: 21kg
Glass: 3.2mm white toughened safety Glass
Frame: Anodized Aluminium Alloy
Junction Box: IP67,Rated Current: 18A

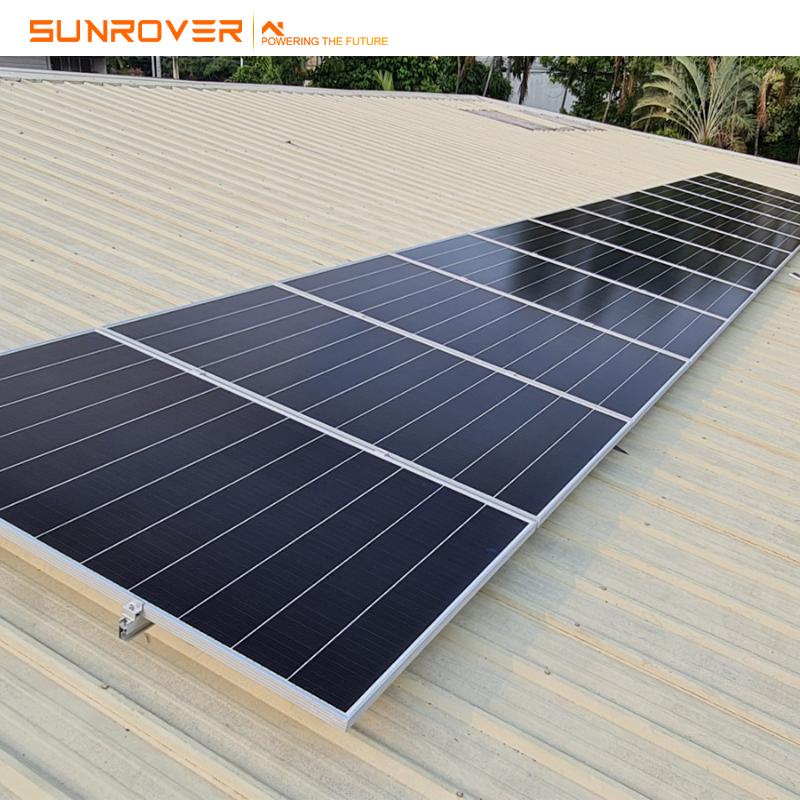

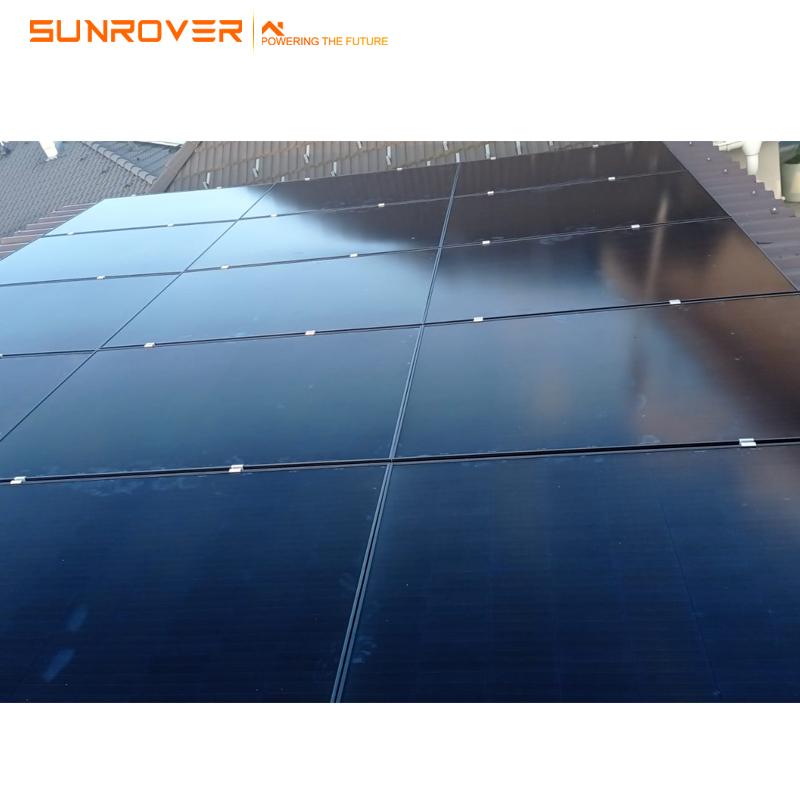

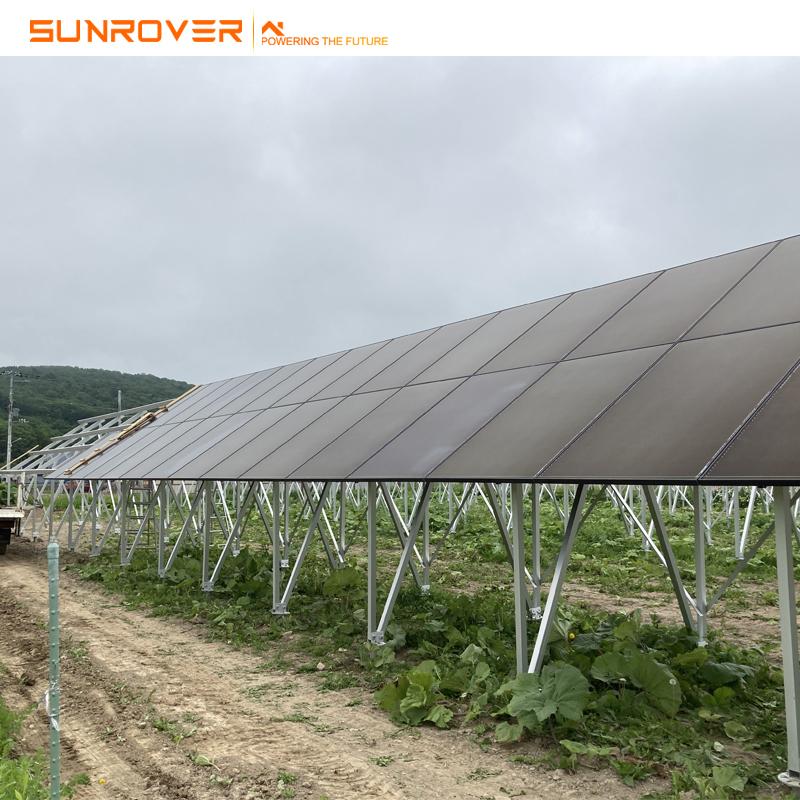

Application: Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM: yes
Supply Ability
Supply Ability 1000 Piece/Pieces per Week
Packaging & delivery
Packaging Details Shingled Solar Panel 420W Full Black Monocrystalline Solar Panel
  1.Standard exporting Wooden and Carton Box
  2.Container: 40'HQ
  3. Pieces Per Container: 806
  The packaging can be customized according to the needs of different customers
Port Shanghai/Ningbo
