LiFePO4 Battery Pack 48V 100ah 200ah 5kwh 10kwh Lithium Ion Home Energy Storage Battery
Energy Storage System LiFePO4 12V 24V LFP Li Ion Batteries 50ah 100ah 150ah 200ah 300ah 400ah Solar Lithium Battery Pack
1.Excellent safety and with long cycle life, can up to 6000 times.

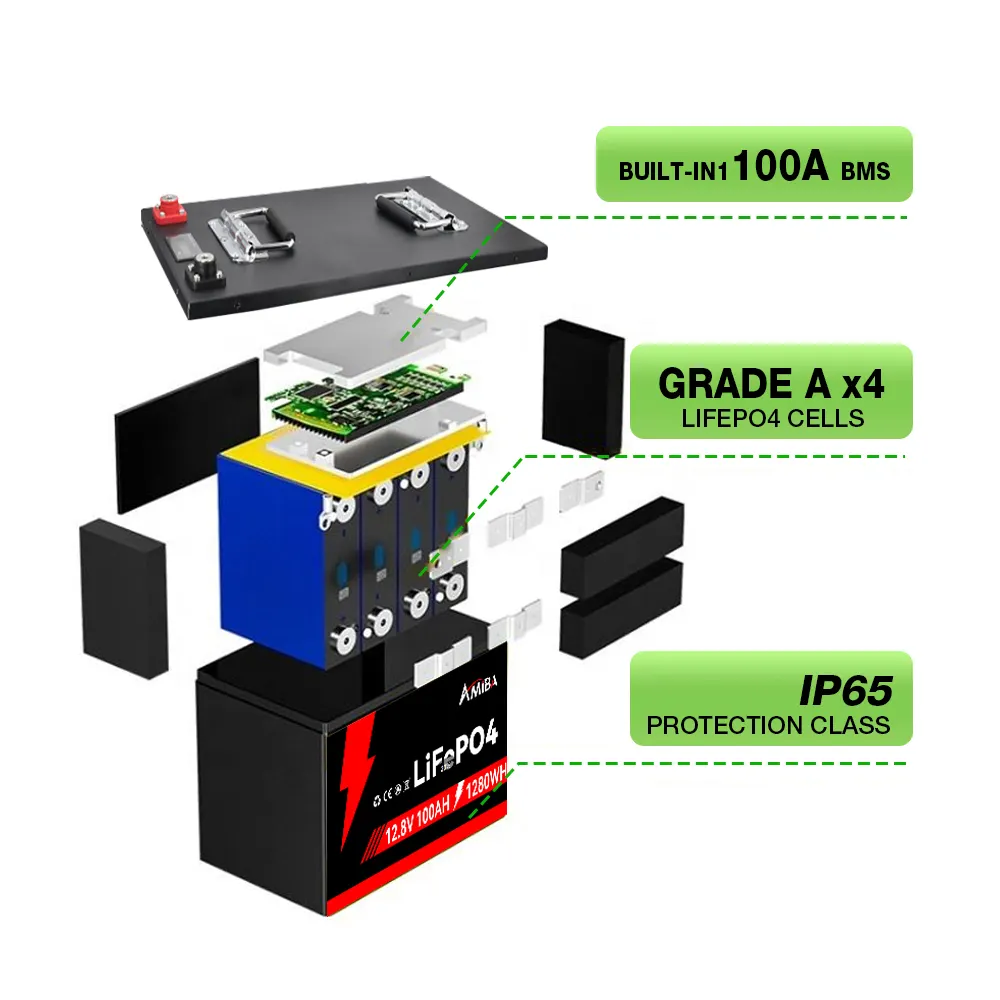

2.Built-in multifunctional BMS
*Basic function: overcharging,
overdischarging, overcurrent and overheating.
*Extra function can be added: temperature control, GPS tracking...
3.Support for series and parallel.
4.Light weight: 40%-50% lighter than lead acid batteries.
5.Wide working temperature range: -20 ℃ ~ 60℃.
| Model |
LTL-12100 |
LTL-12200 |
LTL-12300 |
| Battery type |
LiFePO4 |
LiFePO4 |
LiFePO4 |
| Total energy |
1280wh |
2560wh |
3840wh |
| Rated voltage |
12.8V |
12.8V |
12.8V |
| Capacity |
100Ah |
200Ah |
300Ah |
| Operating voltage range |
10V~14.6V |
10V~14.6V |
10V~14.6V |
| Rated charging/discharging power |
256W/640W |
512W/1280W |
768W/2560W |
| Rated charging/discharging current |
20A/50A |
40A/100A |
60A/200A |
| Dimension(W*H*D) |
260*168*212mm |
384*194*248mm |
523*269*222mm |
| Weight |
10kg |
17.5kg |
25.5kg |
| Operating temperature |
Charge:0℃--45°℃ |
Charge:0℃--45℃ |
Charge:0℃--45℃ |
| |
Discharge:-0°C--75°C |
Discharge:-0°C--75°C |
Discharge:-0°C--75°C |
| Model |
LTL-24100 |
LTL-24200 |
LTL-24300 |
| Battery type |
LiFePO4 |
LiFePO4 |
LiFePO4 |
| Total energy |
2560wh |
5120wh |
3840wh |
| Rated voltage |
25.6V |
25.6V |
25.6V |
| Capacity |
100Ah |
200Ah |
300Ah |
| Operating voltage range |
20V~29.2V |
20V~29.2V |
20V~29.2V |
| Rated charging/discharging power |
512W/1280W |
1024W/2560W |
1536W/5120W |
| Rated charging/discharging current |
20A/50A |
40A/100A |
60A/200A |
| Dimension(W*H*D) |
384*194*248mm |
523*269*222mm |
523*269*222mm |
| Weight |
17.5kg |
35kg |
52kg |
Operating temperature
|
Charge:0℃--45°℃
|
Charge:0℃--45℃
|
Charge:0℃--45℃
|
| |
Discharge:-0°C--75°C
|
Discharge:-0°C--75°C
|
Discharge:-0°C--75°C
|
The advantages of lithium iron phosphate (LiFePO4) batteries are:
1. High energy density: LiFePO4 batteries have a higher energy density than traditional lead-acid batteries and nickel-metal hydride batteries, making them more light weight and suitable for applications that require high energy density such as mobile devices and electric vehicles.
2. Long cycle life: LiFePO4 batteries have a longer cycle life than other types of lithium-ion batteries, allowing for more charging and discharging cycles and reducing the need for battery replacements, saving costs.
3. Good safety performance: LiFePO4 batteries have higher thermal stability and lower spontaneous combustion risk, making them safer and more reliable than other types of lithium-ion batteries.
4. Fast charging: LiFePO4 batteries have a high charging efficiency and can be charged quickly, which is convenient and efficient.
5. Environmentally friendly: LiFePO4 batteries do not contain heavy metals or toxic substances, making them relatively environmentally friendly.
In summary, the advantages of LiFePO4 batteries include high energy density, long cycle life, good safety performance, fast charging, and environmental friendliness, making them widely used in various fields such as electric vehicles, energy storage systems, and mobile devices.
