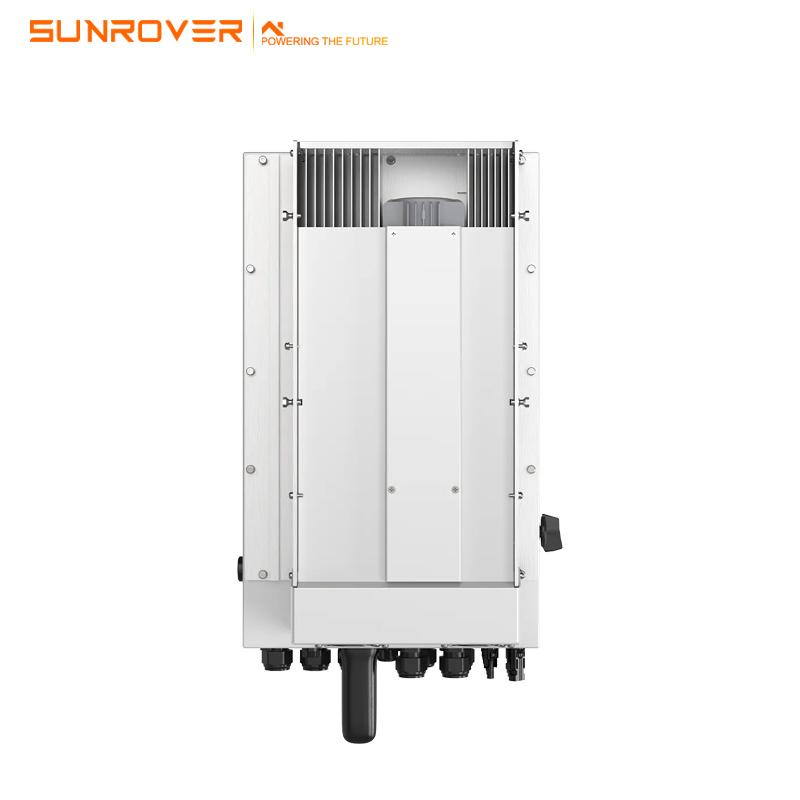

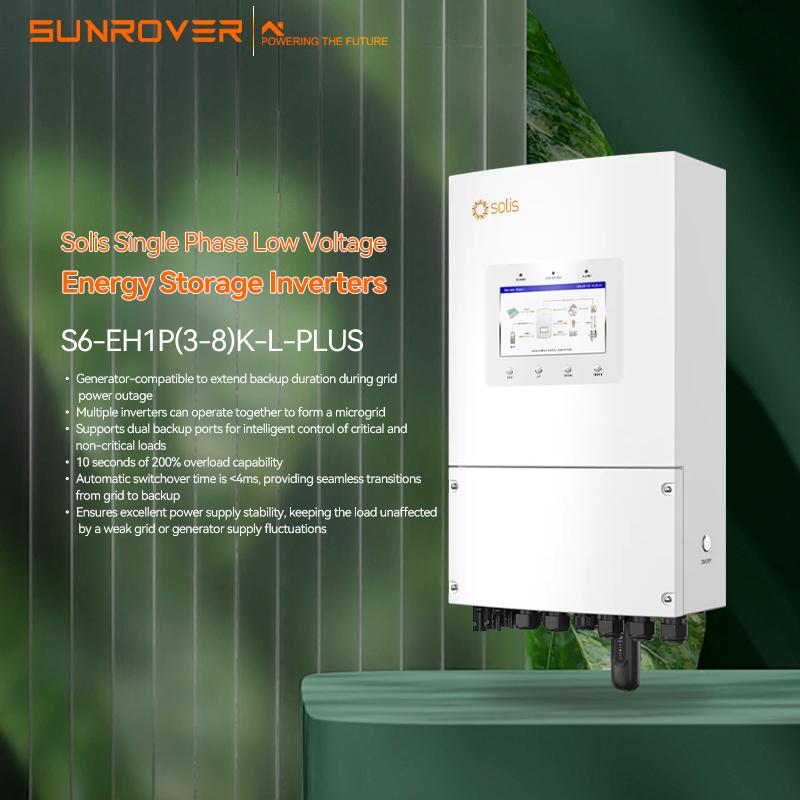

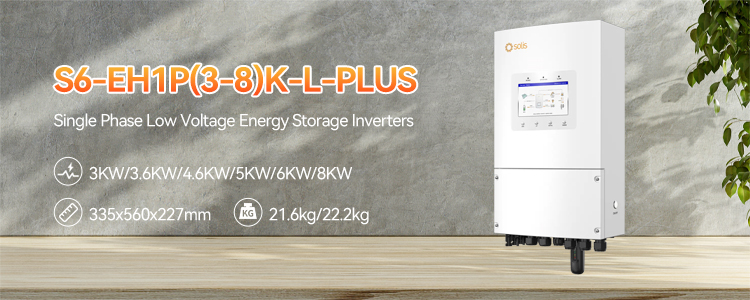

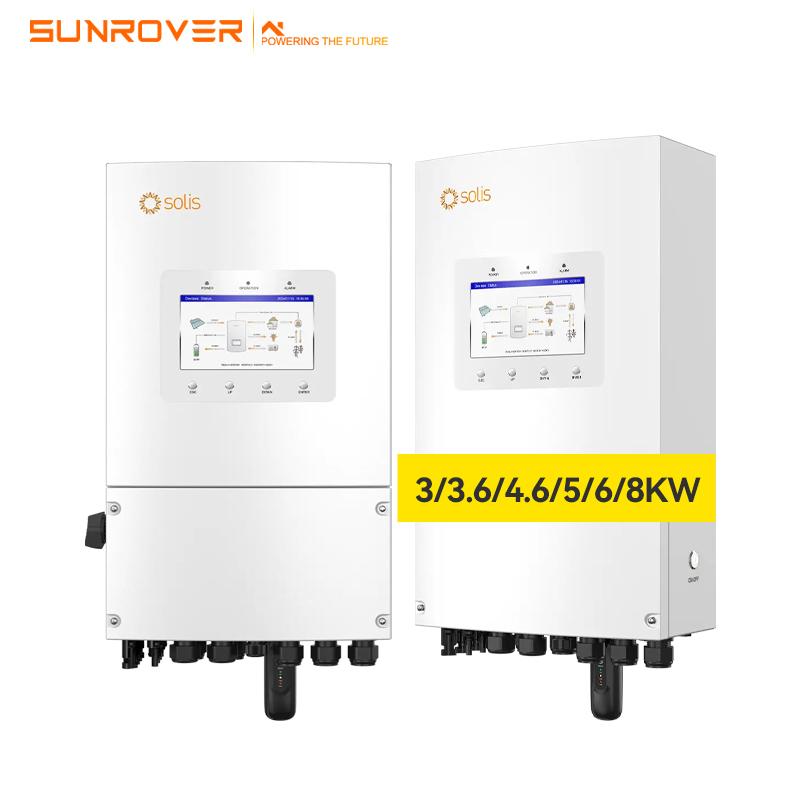

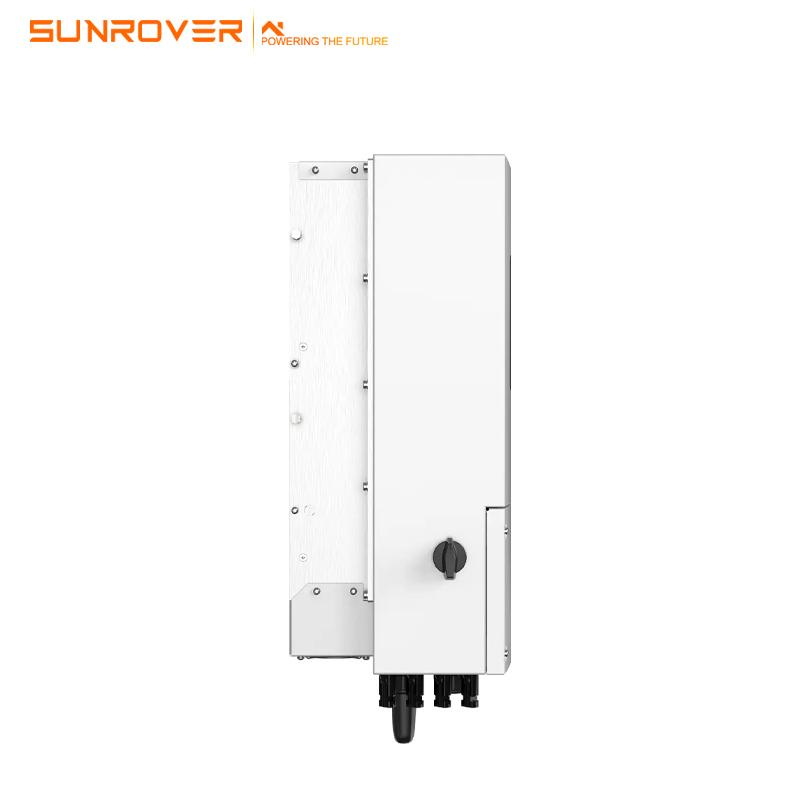

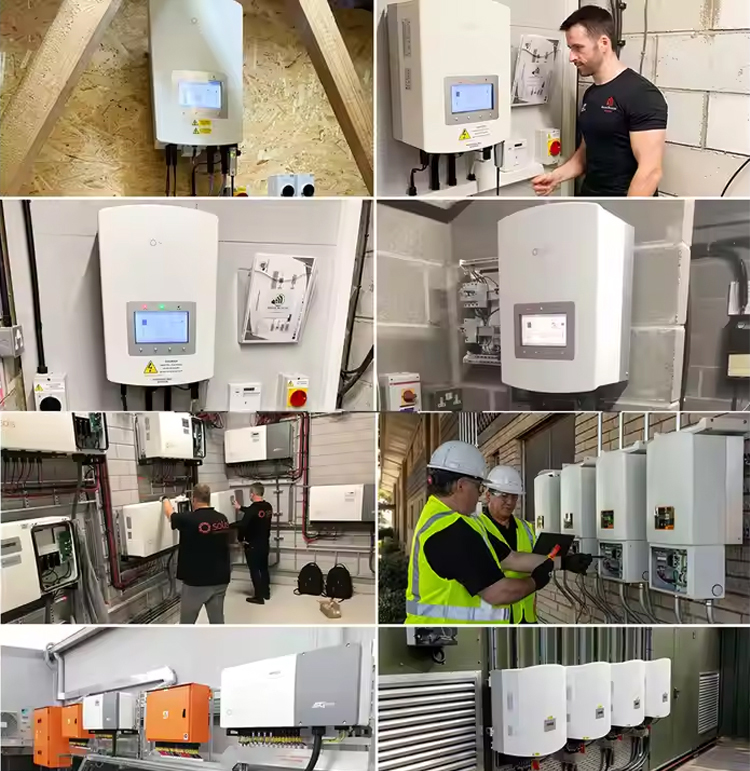

S6-EH1P(3-8)K-L-PLUS
S6-EH1P(3-8)K-L-PLUS
Item NO.:
S6-EH1P(3-8)K-L-PLUSType:
Energy storage inverterPayment:
T/T / L/C / Paypal / Western UnionCertificate:
CE/TUVWarranty:
10 years
|
Models
|
3K
|
3.6K
|
4.6K
|
5K
|
6K
|
8K
|
|
Input DC (PV side)
|
||||||
|
Recommended max. PV array size
|
6 kW
|
7.2 kW
|
9.2 kW
|
10 kW
|
12 kW
|
16 kW
|
|
Max. usable PV input power
|
4.8 kW
|
5.76 kW
|
7.36 kW
|
8 kW
|
9.6 kW
|
12.8 kW
|
|
Max. input voltage
|
500 V
|
|||||
|
Rated voltage
|
330 V
|
|||||
|
Start-up voltage
|
90 V
|
|||||
|
MPPT voltage range
|
90-435 V
|
|||||
|
Max. input current
|
16 A / 16 A
|
32 A / 32 A
|
||||
|
Max. short circuit current
|
20 A / 20 A
|
40 A / 40 A
|
||||
|
MPPT number/Max. input strings number
|
2/2
|
2/4
|
||||
|
Battery
|
|
|
|
|
|
|
|
Battery type
|
Li-ion / Lead-acid
|
|||||
|
Battery voltage range
|
40-60 V
|
|||||
|
Max. charge / discharge power
|
3 kW
|
3.6 kW
|
4.6 kW
|
5 kW
|
6 kW
|
8 kW
|
|
Max. charge / discharge current
|
70 A
|
80 A
|
105 A
|
112 A
|
135 A
|
190 A
|
|
Communication
|
CAN/RS485
|
|||||
|
Output AC (Grid side)
|
|
|
|
|
|
|
|
Rated output power
|
3 kW
|
3.6 kW
|
4.6 kW
|
5 kW
|
6 kW
|
8 kW
|
|
Max. apparent output power
|
3 kVA
|
3.6 kVA
|
4.6 kVA
|
5 kVA
|
6 kVA
|
8 kVA
|
|
Operation phase
|
L/N/PE
|
|||||
|
Rated grid voltage
|
220 V / 230 V
|
|||||
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|||||
|
Rated grid output current
|
13.7 A / 13.1 A
|
16.4 A / 15.7 A
|
20.9 A / 20 A
|
22.8 A / 21.8 A
|
27.3 A / 26.1 A
|
36.4 A / 34.8 A
|
|
Max. output current
|
13.7 A / 13.1 A
|
16.4 A / 15.7 A
|
20.9 A / 20 A
|
22.8 A / 21.8 A
|
27.3 A / 26.1 A
|
36.4 A / 34.8 A
|
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|||||
|
THDi
|
<2%
|
|||||
|
Input AC (Grid side)
|
|
|
|
|
|
|
|
Input voltage range
|
187-253 V
|
|||||
|
Max. input current
|
21 A
|
25 A
|
29 A
|
32 A
|
40 A
|
50 A
|
|
Frequency range
|
45-55 Hz / 55-65 Hz
|
|||||
|
Output AC (Back-up)
|
|
|
|
|
|
|
|
Rated output power
|
3 kW
|
3.6 kW
|
4.6 kW
|
5 kW
|
6 kW
|
8 kW
|
|
Max. apparent output power
|
2 times of rated power, 10 s
|
|||||
|
Back-up switch time
|
<4 ms
|
|||||
|
Rated output voltage
|
L/N/PE, 220 V / 230 V
|
|||||
|
Rated frequency
|
50 Hz / 60 Hz
|
|||||
|
Rated output current
|
13.7 A / 13.1 A
|
16.4 A / 15.7 A
|
20.9 A / 20 A
|
22.8 A / 21.8 A
|
27.3 A / 26.1 A
|
36.4 A / 34.8 A
|
|
Max. AC Passthrough current
|
35 A
|
35 A
|
40 A
|
40 A
|
40 A
|
50 A
|
|
THDv (@linear load)
|
<2%
|
|||||
|
Efficiency
|
|
|
|
|
|
|
|
Max. efficiency
|
96.2%
|
|||||
|
EU efficiency
|
96.1%
|
|||||
|
BAT charged by PV/AC Max. efficiency
|
95.3%/93.9%
|
|||||
|
BAT discharged to AC Max. efficiency
|
93.8%
|
|||||
|
Protection
|
||||||
|
Ground fault monitoring
|
Yes
|
|||||
|
DC reverse-polarity protection
|
Yes
|
|||||
|
Integrated AFCI 2.0
|
Optional
|
|||||
|
Protection class/Over voltage category
|
I / II (PV and BAT), III (MAINS and BACKUP and GEN)
|
|||||
|
General Data
|
||||||
|
Dimensions (W*H*D)
|
335*560*227 mm
|
|||||
|
Weight
|
21.6 kg
|
22.2 kg
|
||||
|
Topology
|
High frequency isolation (for battery)
|
|||||
|
Operating ambient temperature range
|
-40 ~ +60°C
|
|||||
|
Ingress protection
|
IP66
|
|||||
|
Cooling concept
|
Natural convection
|
Intelligent redundant fan-cooling
|
||||
|
Max. operation altitude
|
3000 m
|
|||||
|
Grid connection standard
|
NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150
|
|||||
|
Safety/EMC standard
|
IEC/EN 62109-1/-2, EN 61000-6-2/-3
|
|||||
|
Features
|
||||||
|

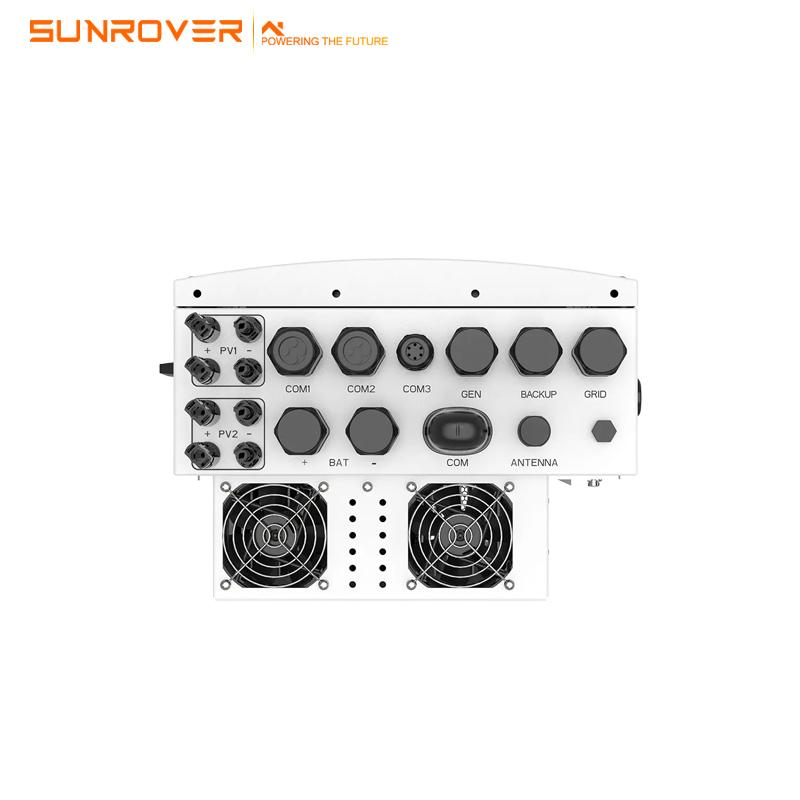

DC connection
|
MC4 plug (PV port) / Terminal Block (BAT port)
|
|||||
|
AC connection
|
Terminal Block
|
|||||
|
Display
|
LCD + Bluetooth + APP
|
|||||
|
Communication
|
RS485, CAN, Optional: Wi-Fi, GPRS, LAN
|
|||||
