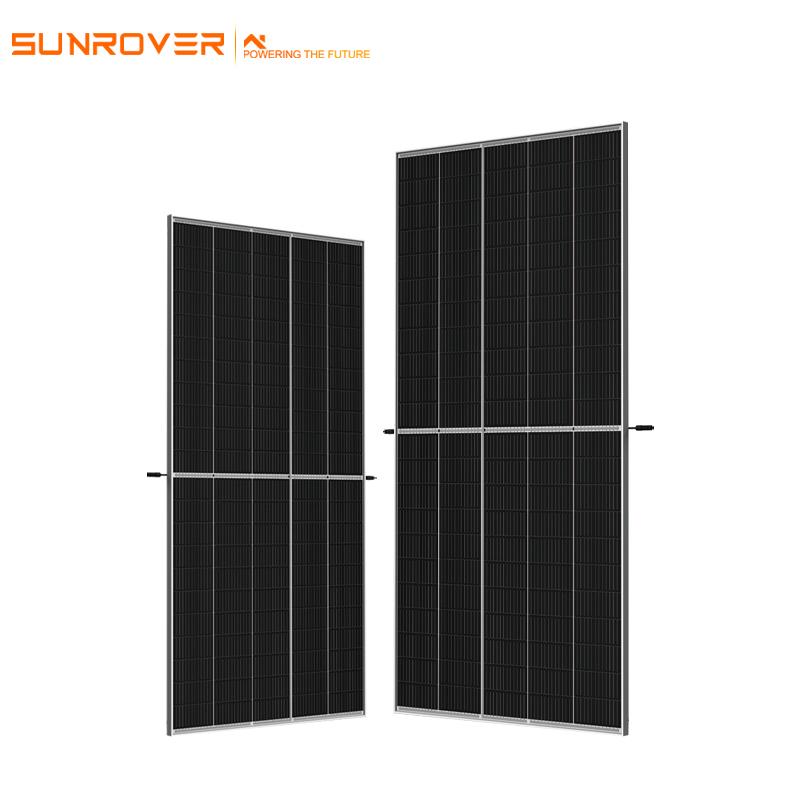

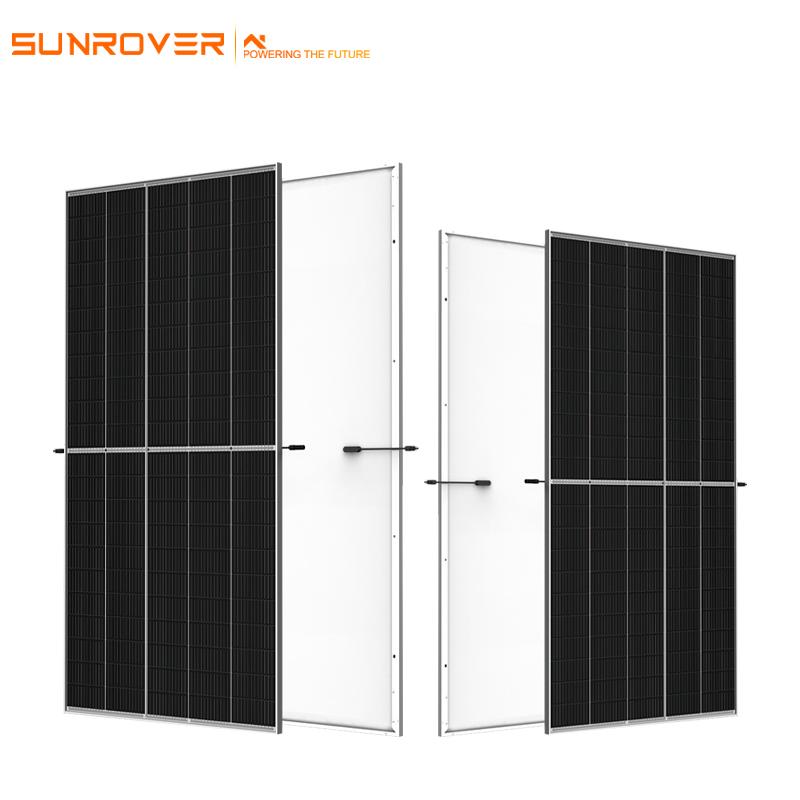

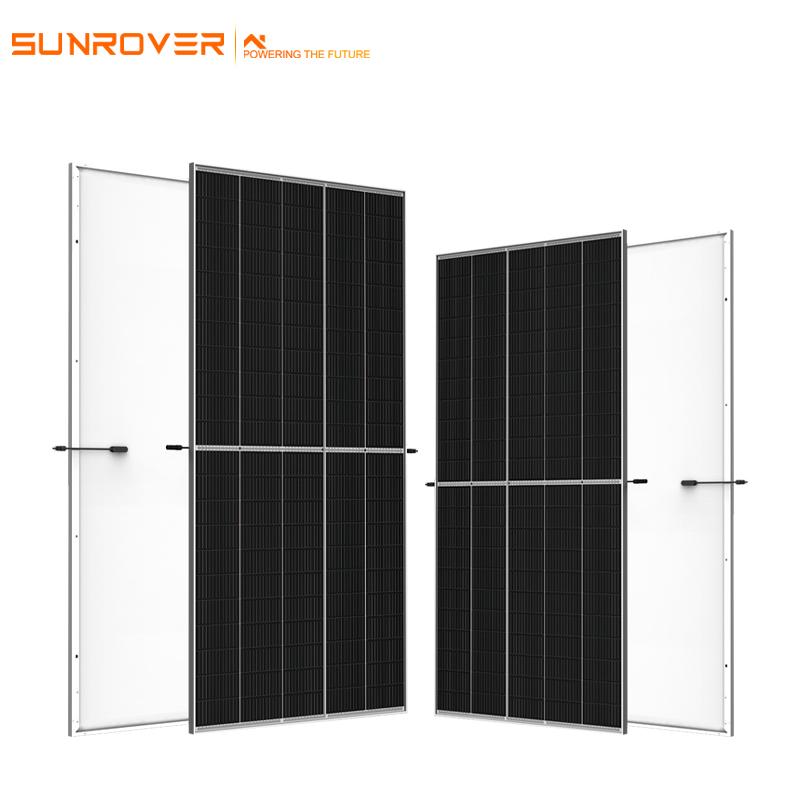

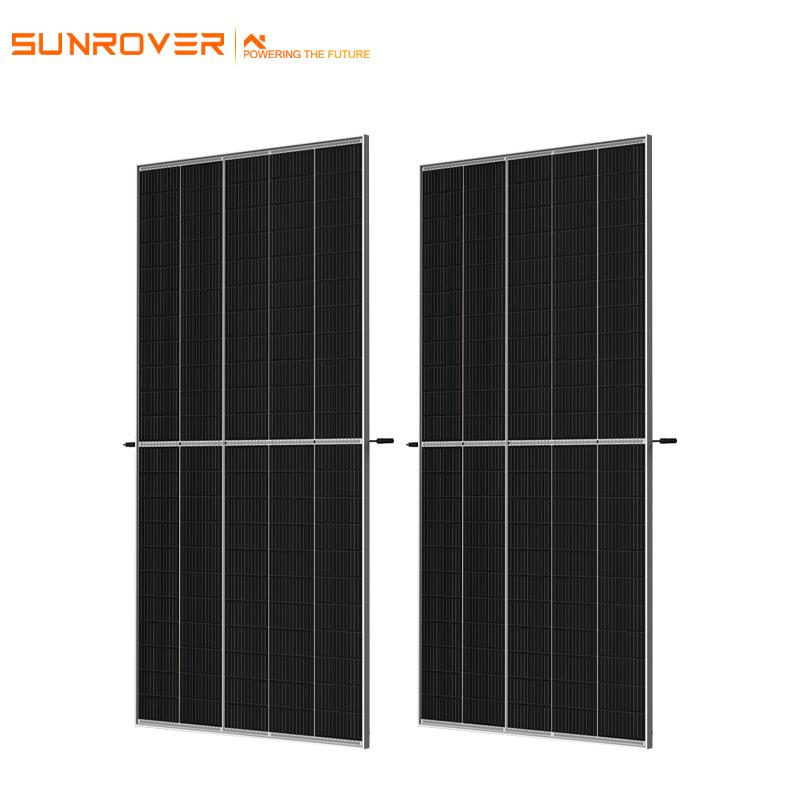

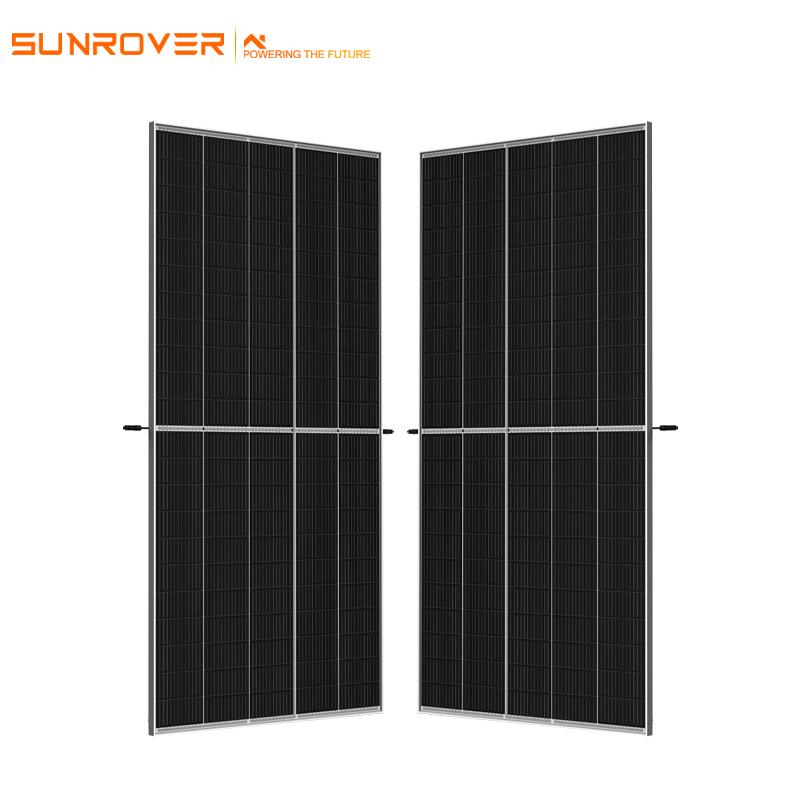

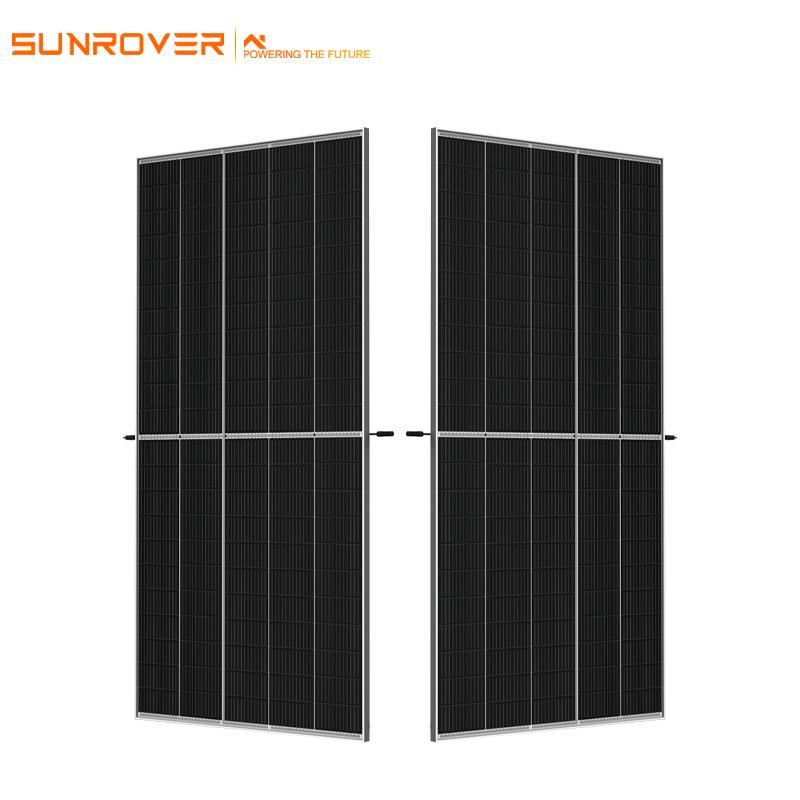

China full black half cut solar cells with Manufacturer Supplier Price
China full black half cut solar cells with Manufacturer Supplier Price
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
3days（1—100000w）；5days（10001 —100000w）；1Weight：
21.8kgCell Type:
Mono crystallineNo.of cells:
150 cellsDimensions:
495w-515w(2187×1102×35mm)；525w-545w(2384×1096×35mm)；535w-555w(2384×1096×35mm)；Weight:
410w-430w(26.3kg)；525w-545w(28.6kg)；535w-555w(32.3kg)；Certificate:
CE/TUV/ISOPayment:
T/T / L/C / Paypal / Western UnionWarranty:
10yearsHalf cell panels are sometimes referred to as half chip cells and have many advantages over "standard" full cells. The main advantage is to reduce the power output loss from the battery to the module. Its other advantage is that the amount of current carried by each main gate is also reduced by half, which leads to a decrease in resistance and an increase in efficiency. The actual efficiency of the half piece is in the range of 1.5-3%, which is very important.
| Module | SUN525-DE21M | SUN530-DE21M | SUN535-DE21M | SUN540-DE21M | SUN545-DE21M |
| Maximum Power(Pmax) | 525W | 530W | 535W | 540W | 545W |
| Maximum Power Voltage(Vmp) | 30.60V | 30.80V | 31.00V | 31.20V | 31.40V |
| Maximum Power Current(Imp) | 17.18A | 17.23A | 17.28A | 17.33A | 17.37A |
| Open-circuit Voltage(Voc) | 36.90V | 37.10V | 37.30V | 37.50V | 37.70V |
| Short-circuit Current(Isc) | 18.26A | 18.31A | 18.36A | 18.41A | 18.47A |
| Module Efficiency STC(%) | 20.09% | 20.28% | 20.50% | 20.70% | 20.90% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1500V DC(IEC) | ||||
| Maximum series fuse rating | 30A | ||||
| Power tolerance | 0-+5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.250%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 43±2℃ | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover Solar |
| Model Number: | SUN525-545 DE21M(17) |
| Type: | PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel |
| Panel Efficiency: | 19.50%, 19.70%, 19.90%, 20.20%, 20.40% |
| Certificate: | ISO/CE/TUV/ETL |
| Warranty: | 10YEARS |
| Solar cell: | Monocrystalline Silicon 166*166mm |
| Glass: | 3.2mm High Tranamission Low Iron |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | Split junction box (IP68, three diode) |
| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | Support for solar panel 450 watt stock double glass |
| Supply Ability | 10000 Piece/Pieces per Week solar panel 450 watt stock double glass |
| Packaging & delivery | |
| Packaging Details | Half cell Mono solar panel from 410w to 670w stock double glass |
| 1. Standard exporting Wooden and Carton Box | |
| 2. Container: 40'HQ | |
| 3. Pallets Per Container: 22 | |
| 4. Pieces Per Container: 660 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai , China |
| Quantity(watts) | 1 - 10000 | 10001 - 100000 | 100001 - 1000000 | >1000000 |
| Lead time (days) | 3 | 5 | 10 | To be negotiated |
