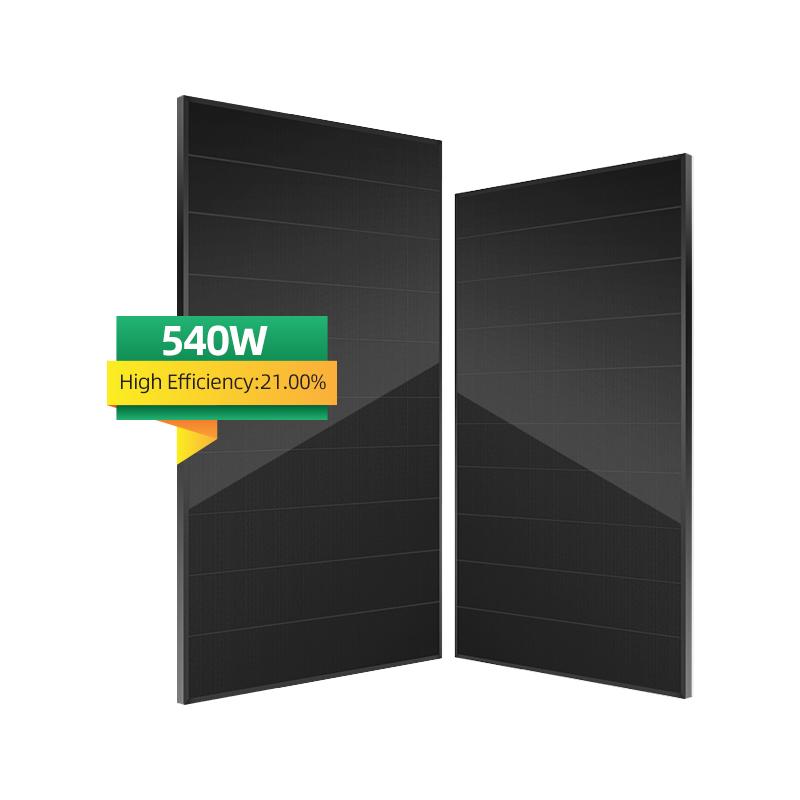

Factory direct 540w full black solar roof shingles for sale
Factory direct 540w full black solar roof shingles for sale
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
5days（1—100000w）；7days（100001 —10000000wWeight：
20kgCell Type:
Mono crystallineNo.of cells:
210mmDimensions:
390w-410w(1723×1134×35mm)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Weight:
390w-410w(20.5kg)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Certificate:
CE/TUVPayment:
T/T / L/C / Paypal / Western UnionWarranty:
25yearsFactory direct 540w full black solar roof shingles for sale
The advantage of the laminated tile technology is to increase the light receiving area and reduce the line loss. Under the combined effect of the two technologies, the module power can be increased by more than 20W.
1) Effectively increase the light receiving area and improve the photoelectric conversion rate. The laminated tile technology uses conductive adhesive to replace the welding strip, avoiding the shielding of the welding strip, and making full use of the gap in the module to place more battery chips.
2) Reduce line loss, solve hot spot response, and have strong crack resistance. The special series parallel structure of the laminated module reduces the influence of the strip resistance on the module power, and inhibits the hot spot effect caused by the reverse current. At the same time, the parallel circuit design makes the power drop of the laminated module in the case of shading a linear relationship with the shadow shielding area, so the laminated module performs better than the conventional module in the case of shading.
| Module | SUN390-DE21M | SUN395-DE21M | SUN400-DE21M | SUN405-DE21M | SUN410-DE21M |
| Maximum Power(Pmax) | 390W | 395W | 400W | 405W | 410W |
| Maximum Power Voltage(Vmp) | 38.40V | 38.50V | 38.60V | 38.70V | 38.80V |
| Maximum Power Current(Imp) | 10.16A | 10.26A | 10.36A | 10.47A | 10.57A |
| Open-circuit Voltage(Voc) | 46.20V | 46.30V | 46.40V | 46.50V | 46.60V |
| Short-circuit Current(Isc) | 10.87A | 10.92A | 10.97A | 11.02A | 11.07A |
| Module Efficiency STC(%) | 20.32% | 20.58% | 20.85% | 21.10% | 21.34% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1000/1500V DC(IEC) | ||||
| Maximum series fuse rating | 20A | ||||
| Power tolerance | 0-5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.270%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 42.3±2℃ | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover |
| Model Number: | SUN420-60FB 420W |
| Cell size: | 182mmx182mm |
| Type: | PERC, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV, Overlapping, shingled mono Solar Panel |
| Panel Dimensions: | 1719*1140*35mm |
| Panel Efficiency: | 21.10% |
| Certificate: | TUV/ETL/CE, complete international certificates |
| Warranty: | 25years |
| Product name: | TUV certified 420watt solar panel 700w for electricity |
| Solar cell: | Mono crystalline 182x182mm |
| Number of Cells: | 120cells |
| Weight: | 21kg |
| Glass: | 3.2mm white toughened safety Glass |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | IP67,Rated Current: 18A |
| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | yes |
| Supply Ability | |
| Supply Ability | 1000 Piece/Pieces per Week |
| Packaging & delivery | |
| Packaging Details | Shingled Solar Panel 420W Full Black Monocrystalline Solar Panel |
| 1.Standard exporting Wooden and Carton Box | |
| 2.Container: 40'HQ | |
| 3. Pieces Per Container: 806 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai/Ningbo |
