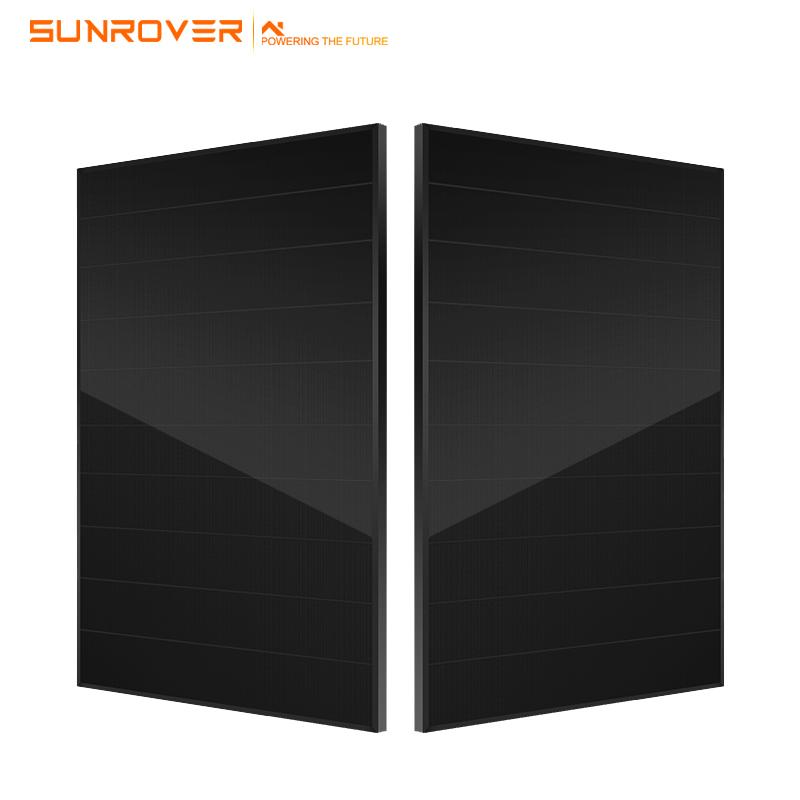

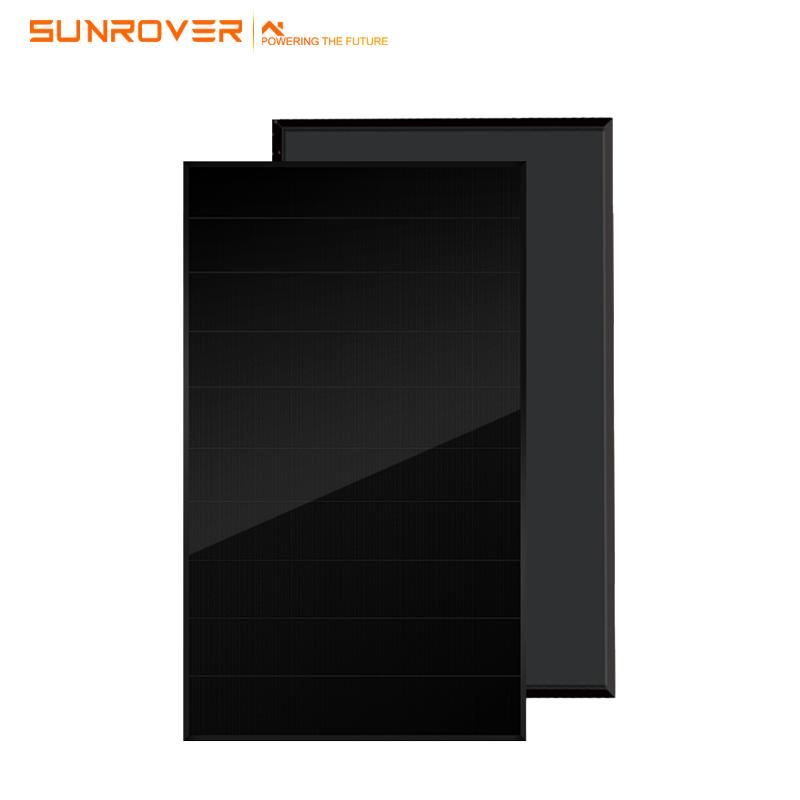

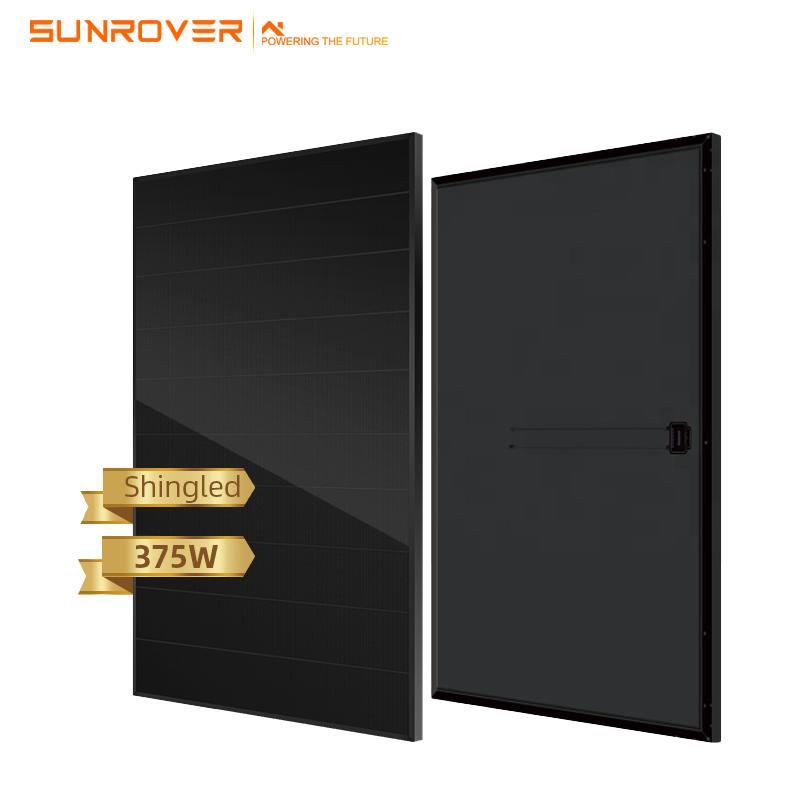

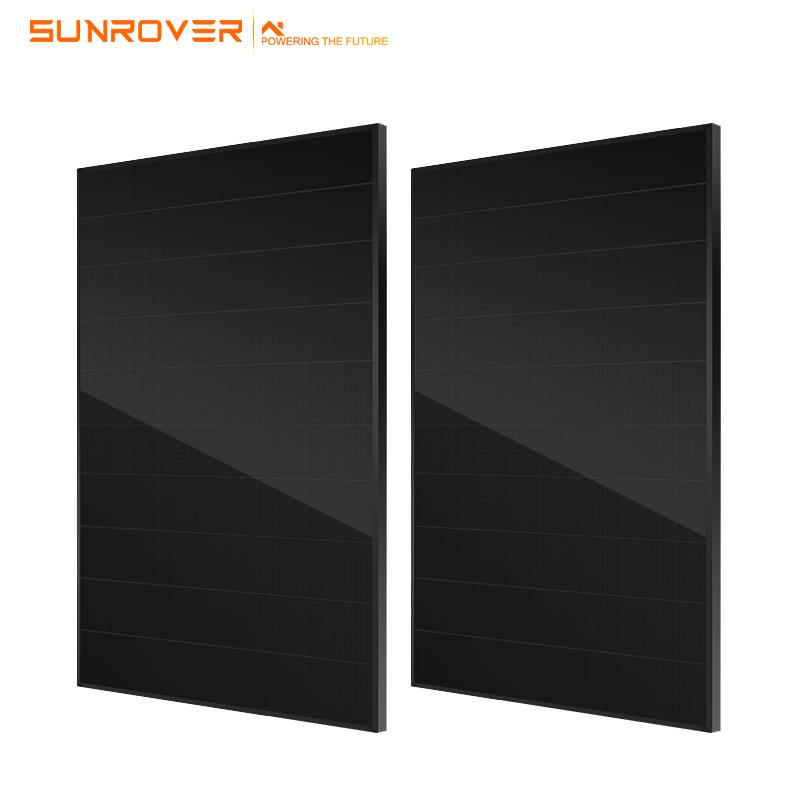

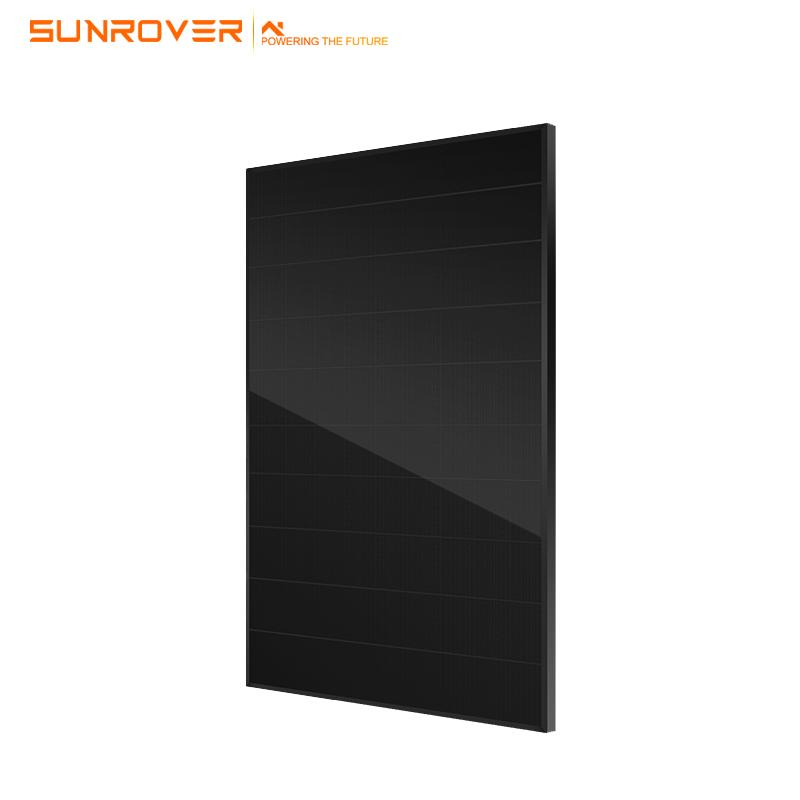

Stock all black 375 380w 410w 415w shingled solar panels 375w overlaping panels price
Stock all black 375 380w 410w 415w shingled solar panels 375w overlaping panels price
Item NO.:

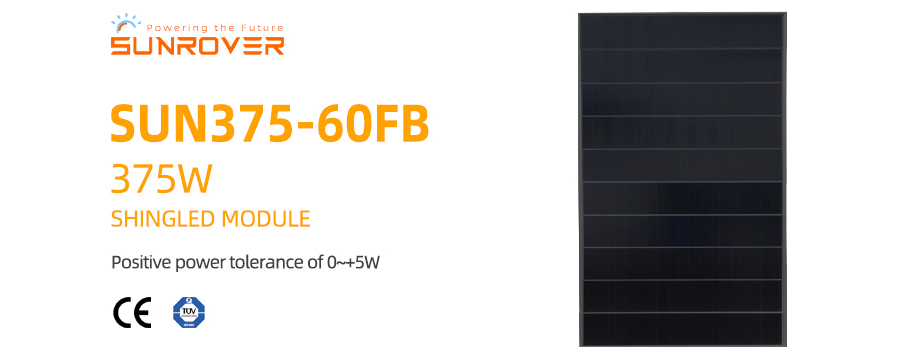

SUN375 -60FBCell Type:
Mono crystallineNo.of cells:
60Dimensions:

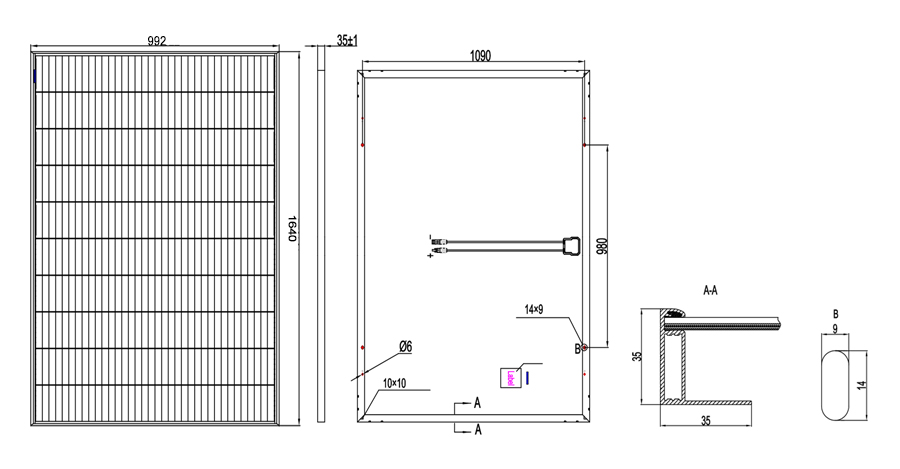

1640*992*35Weight:
18.5kgPayment:
T/T, L/C, Paypal, Western UnionWarranty:

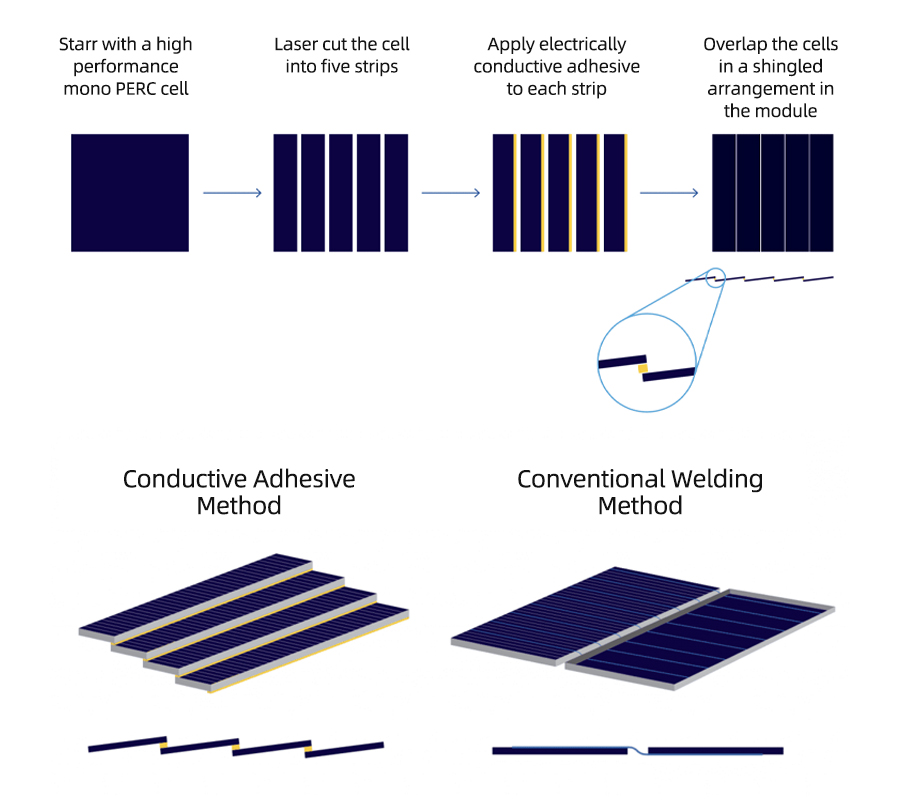

30yearsCompared with the normal module technology, the interconnected material of shingled module is different from that of normal module,
whose technology is simpler and more reliable, avoiding the defects such as deviation of ribbon and cold soldering
Product Description
|
Electrical Characteristics |
||||||
|
Model |
SUN375 -60FB |
BSM380-60FB |
BSM390 -60FB |
BSM400-60FB |
BSM410-60FB |
BSM415-60FB |
|
Max Power(Pmax) [W] |
375 |
380 |
390 |
400 |
410 |
415 |
|
Open Circuit Voltage(Voc) [V] |
41.10 |
41.30 |
41.6 |
46.4 |
46.6 |
46.7 |
|
Short Circuit Current(lsc) [A] |
11.60 |
11.69 |
11.80 |
10.97 |
11.07 |
11.12 |
|
Max Power Vdtage(Vmp) [V] |
34.60 |
34.8 |
35.5 |
38.6 |
38.8 |
38.9 |
|
Max Power Currentflmp) [A] |
10.84 |
10.92 |
10.99 |
10.36 |
10.57 |
10.67 |
|
Module Efficiency [%] |
21.43 |
21.43 |
21.43 |
21.6 |
21.8 |
22.2 |
|
Power Tolerance |
0~5W |
|||||
|
Max System Voltage |
1000V/1500V/DC(IEC) |
|||||
|
Max Series Fuse Rating |
20A |
|||||
|
Operating Temperature |
-40 °C to + 85 °C |
|||||
|
STC |
Irradiance 1000W/m2, cell temperature 25 °C, AM1.5 |
|||||

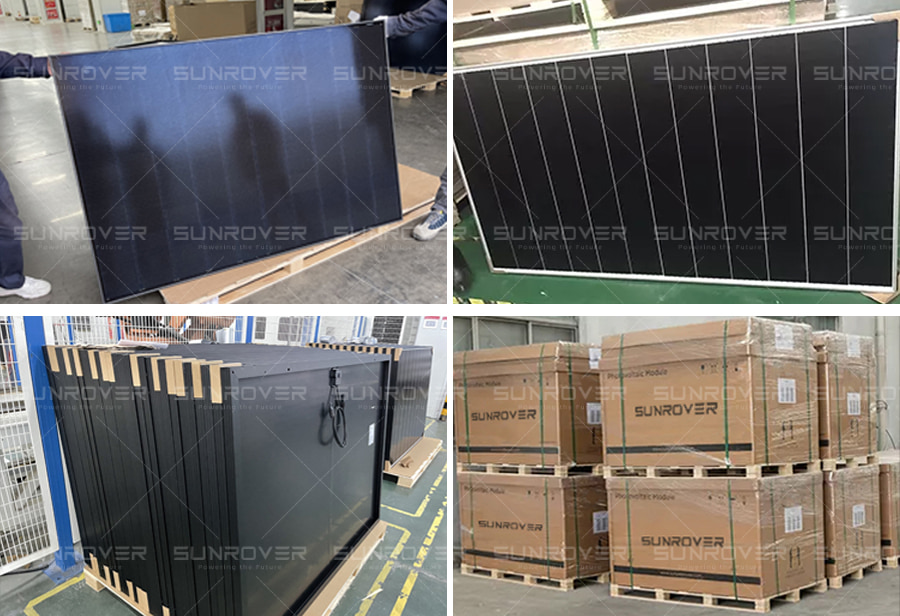

Packaging

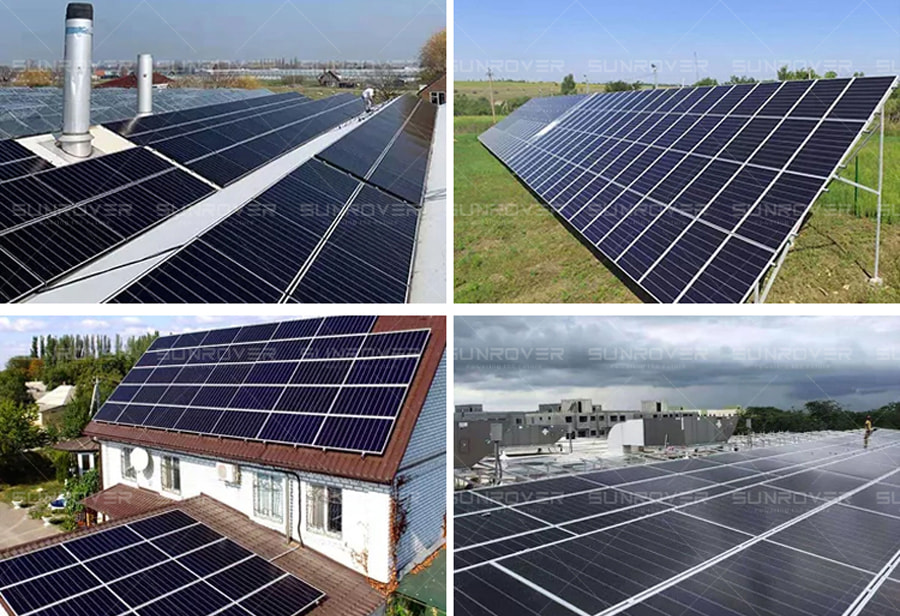

Project Review
Other Advantage of Shingled panels
1,Vertical installation,shingled modulecells series and parallel structure,assoon as the snow on one string ofcells melts,the module is ready to work. Normal module,it can only melt snownaturally under environmental conditions.
2,Smaller size, but higher efficiency. to save more cost of brackets
