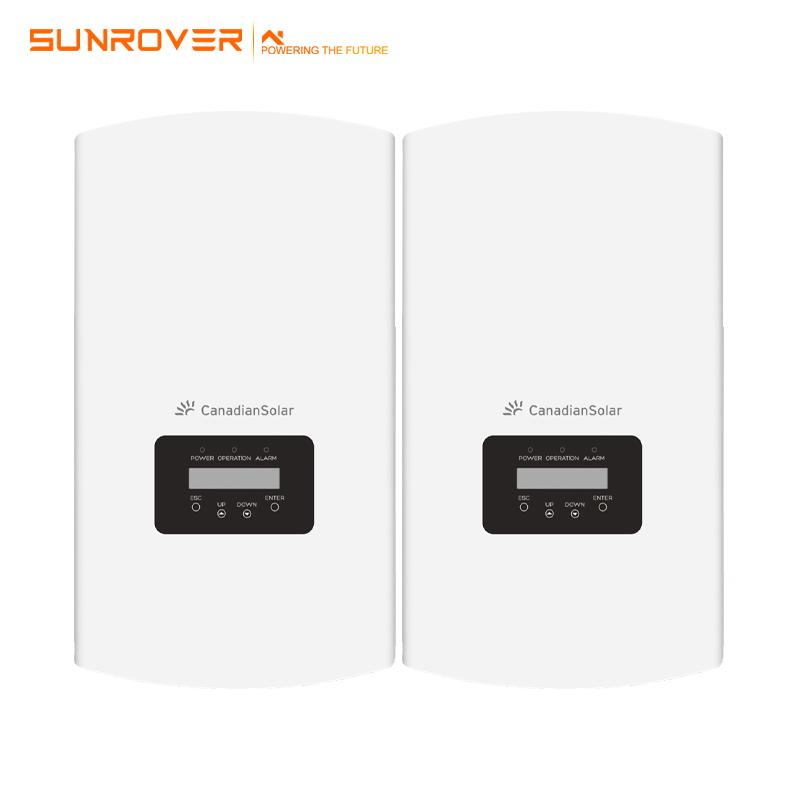

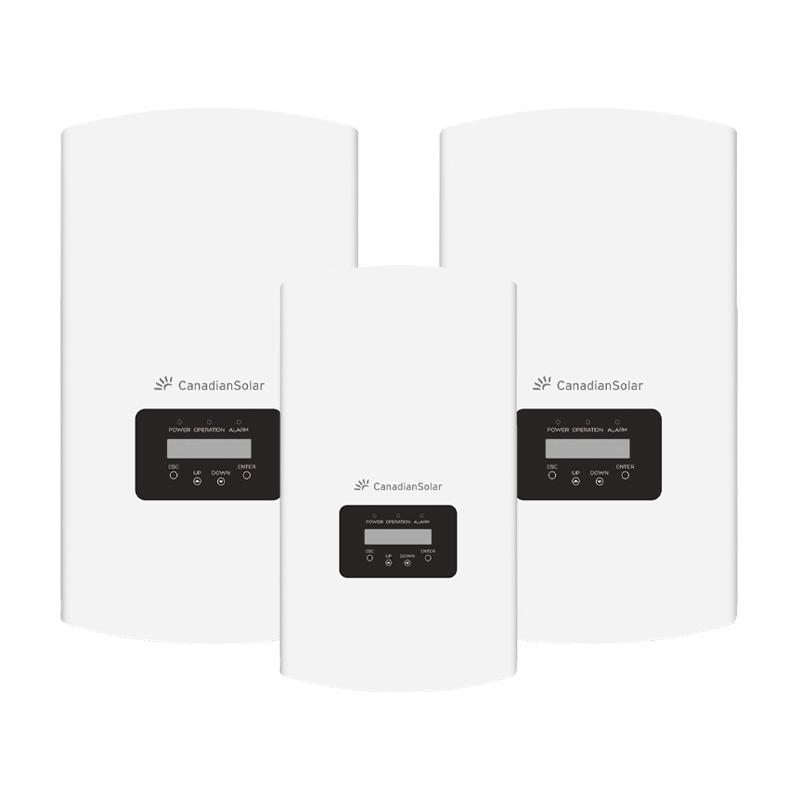

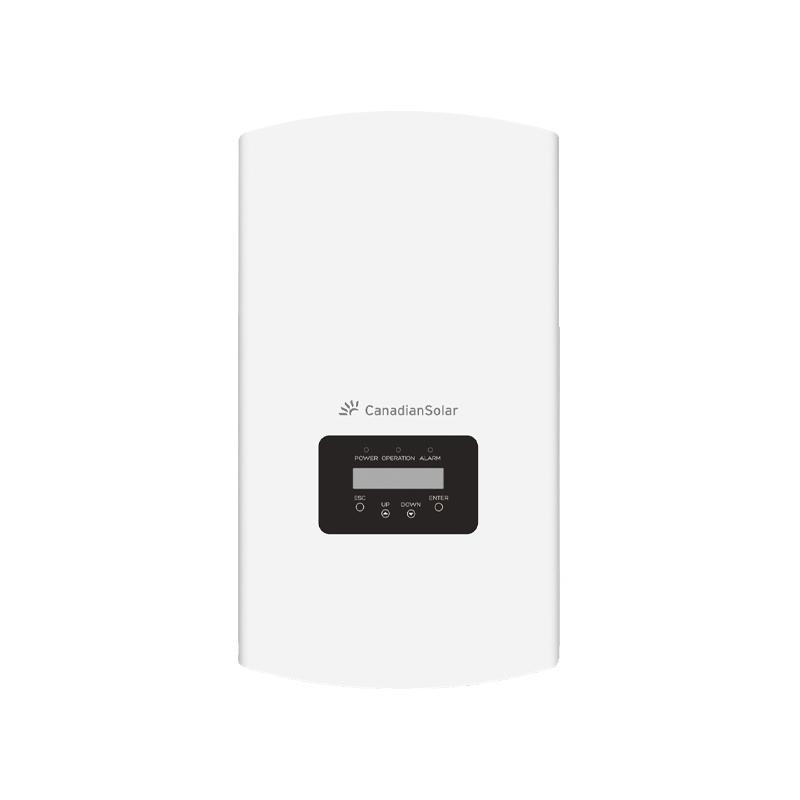

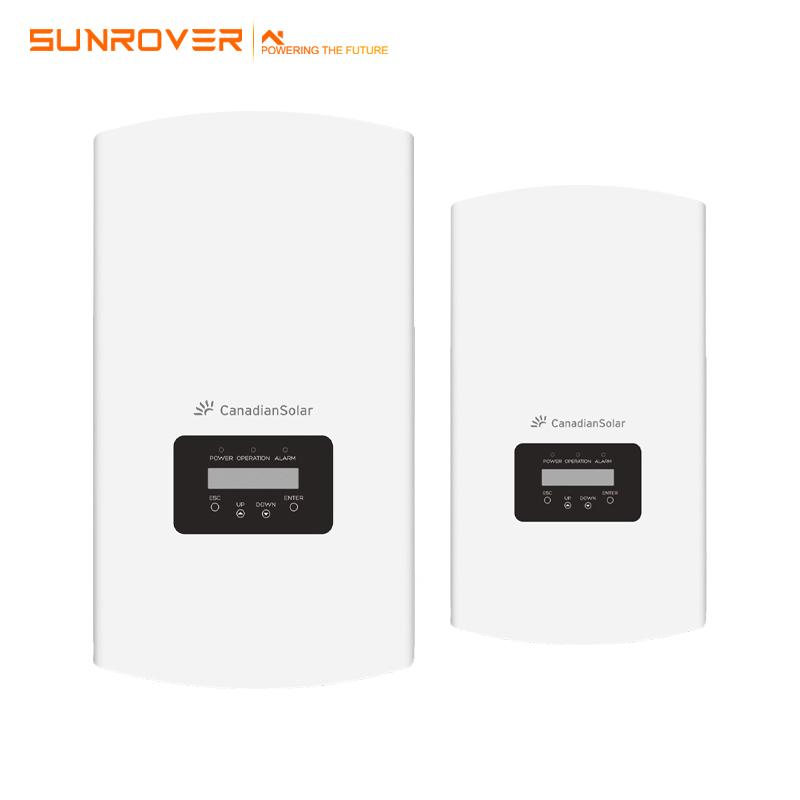

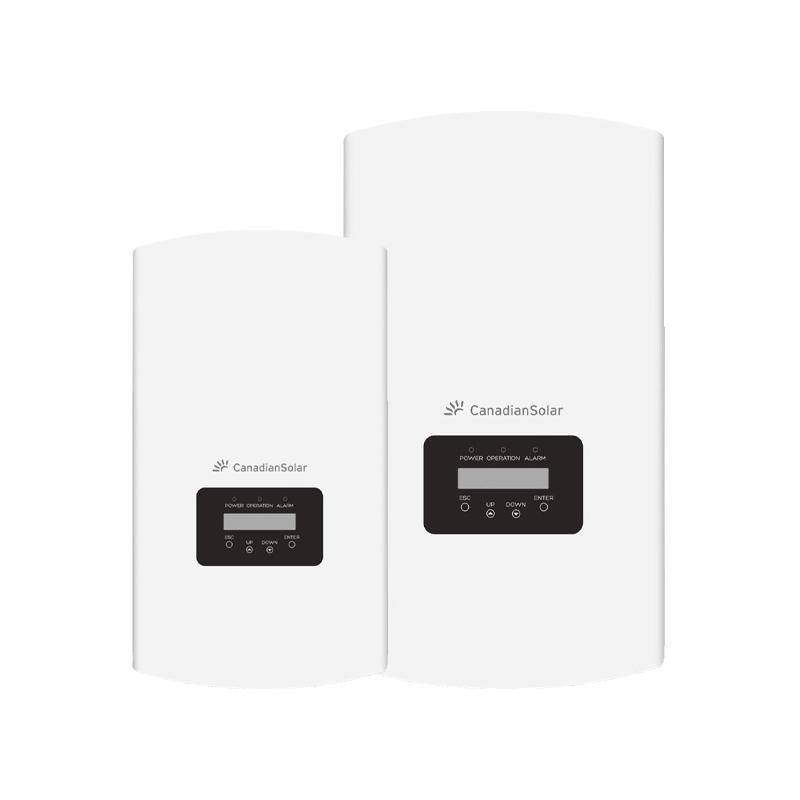

Canadian 12kw 15kw 17kw 20kw 3 phase on grid solar inverter for solar power system
Canadian 12kw 15kw 17kw 20kw 3 phase on grid solar inverter for solar power system
Item NO.:
CSI-12-20KW-T400GL01Shipping Port:
Shanghai/NingboLead Time：
15days（1—10pieces）；To be negotiated（10pType:
Grid TiePayment:
30% deposit, balance paid before shippingCertificate:
VDE.INMETROWarranty:
5yearsCanadian 12kw 15kw 17kw 20kw 3 phase on grid solar inverter for solar power system
On Grid Solar Power Inverter Features:
1. Max. Efficiency 98.2%, Euro. Efficiency 97.8%.
2. Double MPPT, MPPT accuracy up to 99.9%.
3. IP65 design, work properly under severe outdoor circumstances.
4. Full solution of safety protection, DC switch integrated.
5. Flexible input and output connections, support RS485, Ethernet and USB communication.
6. Transformer less design and high power density, lighter and more convenient for installation.
| SYSTEM TECHNICAL DATA | |||
| MODEL NAME | CSI-7K-S22002-ED | CSI-8K-S22002-ED | CSI-9K-S22002-ED |
| DC INPUT | |||
| Max. PV Power (W) | 9100 | 10400 | 11700 |
| Max. DC Input Voltage (V) | 600 | 600 | 600 |
| Start-up DC Input Voltage (V) | 120 | 120 | 120 |
| MPPT Operating Voltage Range (V) | 100 - 500 | 100 - 500 | 100 - 500 |
| Rated Input Voltage (V) | 360 | 360 | 360 |
| Max. Input Current (A) | 12.5 / 25 | 12.5 /25 | 12.5 / 25 |
| Max. Short-Circuit Current (A) | 15 / 30 | 15 / 30 | 15 / 30 |
| Number of MPP Trackers | 2 | 2 | 2 |
| Number of DC Inputs | 1//2 | 1//2 | 1//2 |
| AC OUTPUT | |||
| Rated Output Power (W) | 7000 | 8000 | 9000 |
| Max. Output Power (W) | 7700 | 8000 | 9000 |
| AC Grid Connection Type | L / N / PE | ||
| AC Nominal Votage And Range (V) | 220 / 230 / 240 (180 ~ 280) | ||
| AC Nominal Frequency And Range (Hz) | 50 / 60 (± 5) | ||
| Max. Output Current (A) | 35 | 36.4 | 40.9 |
| Power Factor (@Rated Output Power) | > 0.99 | ||
| Displacement Power Factor | 0.8 leading to 0.8 lagging | ||
| Total Harmonic Distortion (THDi) | < 3 % | ||
| EFFICIENCY | |||
| Max. Efficiency | 98.10% | 98.10% | 98.10% |
| European Efficiency | 97.50% | 97.50% | 97.50% |
| MPPT Efficiency | 99.90% | 99.90% | 99.90% |
| SAFETY &PROTECTION | |||
| DC SPD | Type II | ||
| DC Switch | Integrated | ||
| Anti-Islanding Protection | Integrated | ||
| DC Reverse-Polarity Protection | Integrated | ||
| Insulation Monitoring | Integrated | ||
| AC Over Voltage Protection | Integrated | ||
| AC Over Current Protection | Integrated | ||
| AC Short-Circuit Protection | Integrated | ||
| Residual Current Protection | Integrated | ||
| Overvoltage Class | II (DC), III (AC) | ||
| GENERAL PARAMETERS | |||
| Dimensions (W*H*D, mm) | 399 * 583 * 192 | ||
| Net Weight (kg) | 19.3 | ||
| Installation Method | Wall - mounted | ||
| DC Connection Type | MC4 / H4 | ||
| AC Connection Type | Connector | ||
| Communication Interfaces | RS485 / WiFi | ||
| Display | LED Indicator | ||
| Cooling | Natural Convection | ||
| Protection Degree | IP65 | ||
| Operating Ambient Temperature Range (℃) | - 25 ~ 60 °C (> 45 °C, derating operation) | ||
| Relative Humidity (Non-Condensing) | 0 % ~ 100 % | ||
| Max. Operating Altitude (m) | 4000 m (> 3000 m, derating operation) | ||
| Acoustic Noise Emission Level (dBA) | < 25 | ||
| Topology | Transformerless | ||
| Night Power Consumption (W) | < 1 | ||
| Safety and EMC | IEC 62109-1/2, IEC 61000-6-1, IEC 61000-6-3 | ||
| Grid Connection Standard | ABNT NBR 16149/16150:2013, IEC61727, IEC62116 | ||
Stock

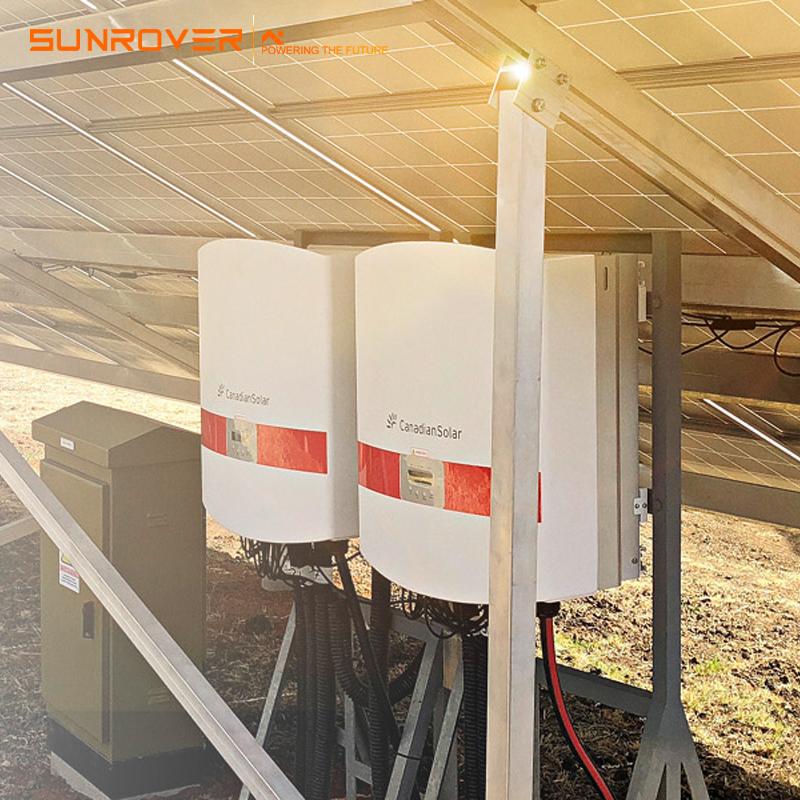

Project
