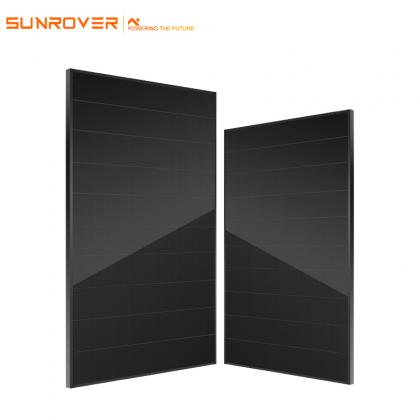

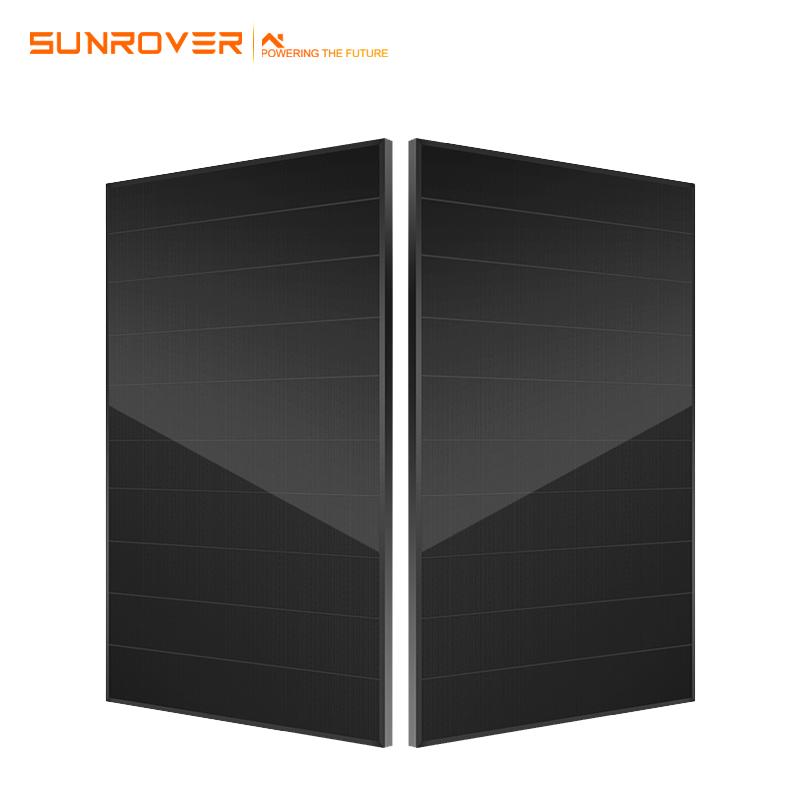

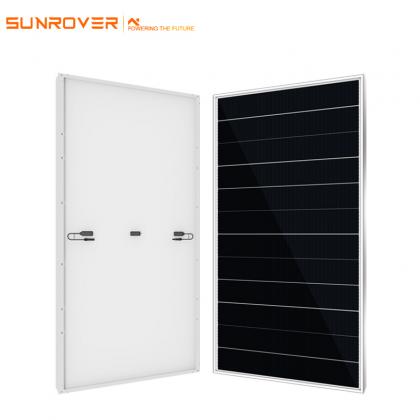

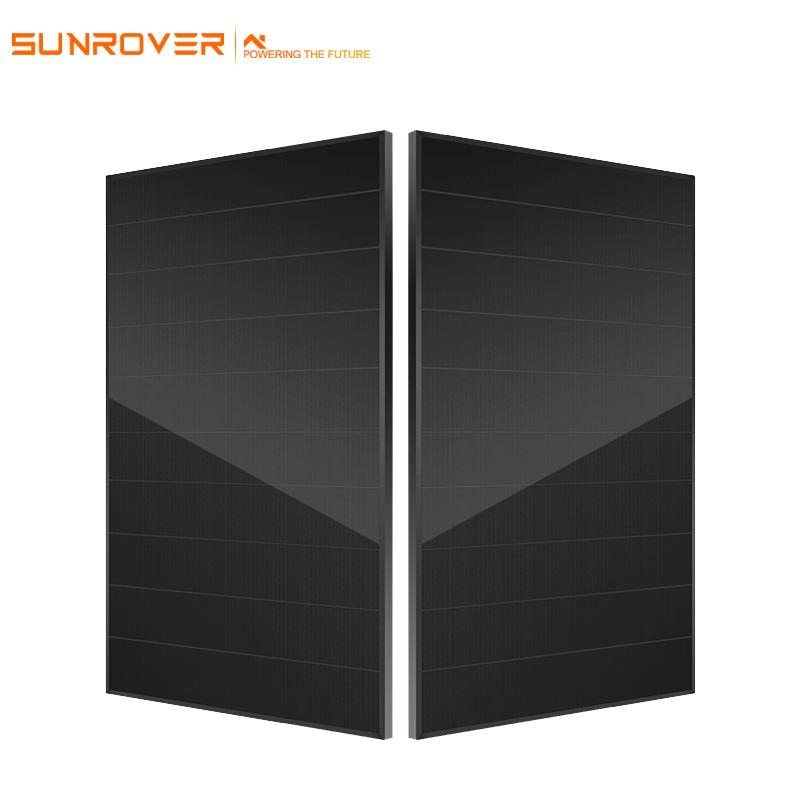

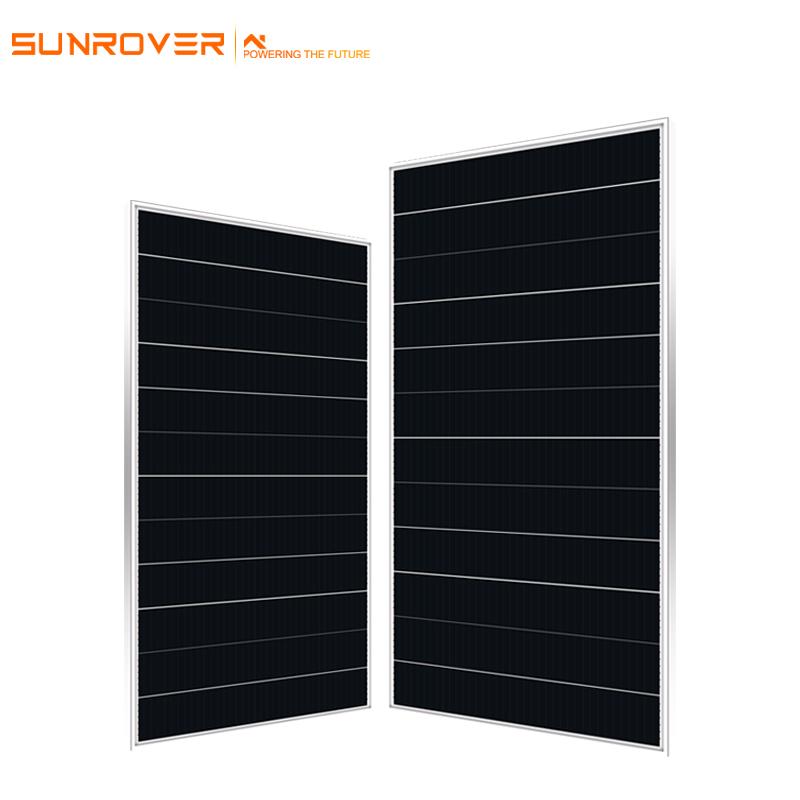

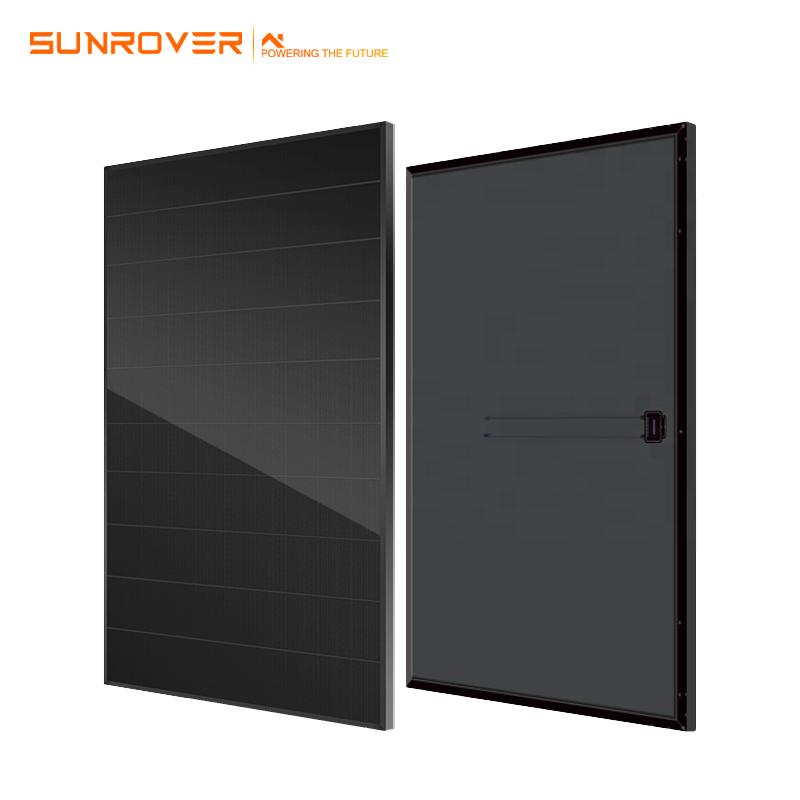

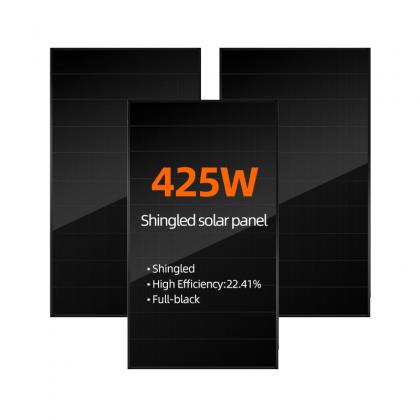

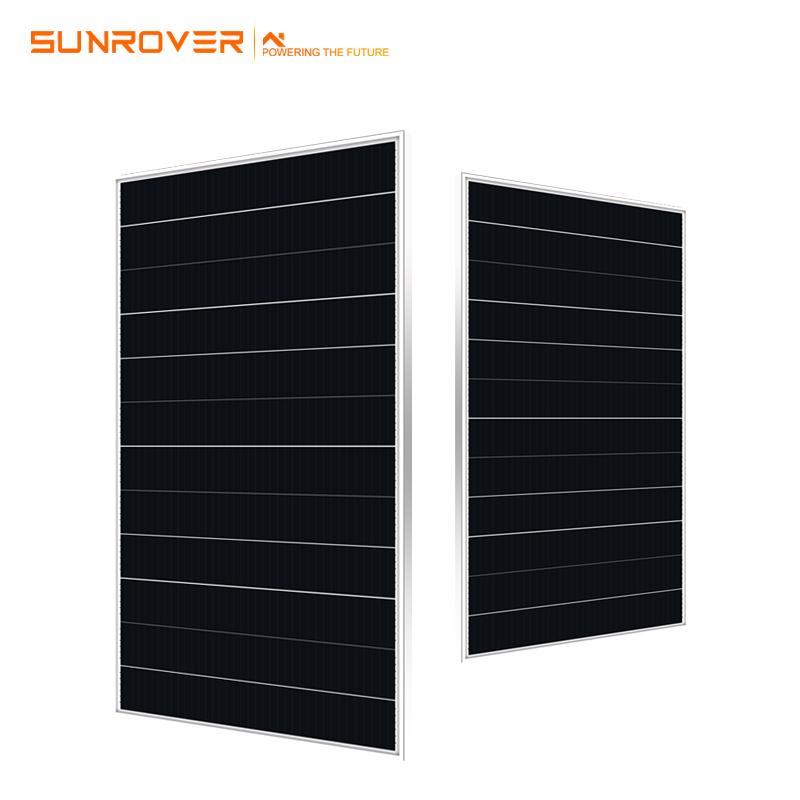

Factory directly full black monocrystalline shingled solar modules with Home commercial and industrial use

Factory directly full black monocrystalline shingled solar modules with Home commercial and industrial use from 390w to 560w.

Order(MOQ):
40HQ
Product Origin:
china
Color:
black
Shipping Port:
shanghai/ningbo
Lead Time：
5days（1—100000w）；7days（100001 —10000000w
Weight：
20kg
Cell Type:
Mono crystalline
No.of cells:
210mm
Dimensions:
390w-410w(1723×1134×35mm)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；
Weight:
390w-410w(20.5kg)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；
Certificate:
CE/TUV
Payment:
T/T / L/C / Paypal / Western Union
Warranty:
25years

Request A Quote

Basic Parameters
Detail Parameters

Top fashion full black monocrystalline shingled solar modules with High cost performance

Advantages of shingled solar modules: high photoelectric conversion efficiency and good stability; The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, and the highest is 24%, which is the highest photoelectric conversion efficiency of all kinds of solar cells.

Module	SUN410-DE21M	SUN415-DE21M	SUN420-DE21M	SUN425-DE21M	SUN430-DE21M
Maximum Power(Pmax)	410W	415W	420W	425W	430W
Maximum Power Voltage(Vmp)	38.80V	38.90V	39.00V	39.10V	39.20V
Maximum Power Current(Imp)	10.57A	10.67A	10.77A	10.87A	10.97A
Open-circuit Voltage(Voc)	46.60V	46.70V	46.80V	46.90V	47.00V
Short-circuit Current(Isc)	11.07A	11.12A	11.17A	11.22A	11.27A
Module Efficiency STC(%)	21.34%	21.63%	21.89%	22.15%	22.41%
Operating Temperature(℃)	-40℃~+85℃
Maximum system voltage	1000/1500V DC(IEC)
Maximum series fuse rating	20A
Power tolerance	0-5W
Temperature coefficients of Pmax	-0.340%℃
Temperature coefficients of Voc	-0.270%℃
Temperature coefficients of Isc	0.04%℃
Nominal operating cell temperature(NOCT)	42.3±2℃

Essential details
Place of Origin:	Anhui, China
Brand Name:	Sunrover
Model Number:	SUN420-60FB 420W
Cell size:	182mmx182mm
Type:	PERC, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV, Overlapping, shingled mono Solar Panel
Panel Dimensions:	1719114035mm
Panel Efficiency:	21.10%
Certificate:	TUV/ETL/CE, complete international certificates
Warranty:	25years
Product name:	TUV certified 420watt solar panel 700w for electricity
Solar cell:	Mono crystalline 182x182mm
Number of Cells:	120cells
Weight:	21kg
Glass:	3.2mm white toughened safety Glass
Frame:	Anodized Aluminium Alloy
Junction Box:	IP67,Rated Current: 18A
Application:	Commercial, civil, open space, roof, lake surface, etc.
OEM/ODM:	yes
Supply Ability
Supply Ability	1000 Piece/Pieces per Week
Packaging & delivery
Packaging Details	Shingled Solar Panel 420W Full Black Monocrystalline Solar Panel
	1.Standard exporting Wooden and Carton Box
	2.Container: 40'HQ
	3. Pieces Per Container: 806
	The packaging can be customized according to the needs of different customers
Port	Shanghai/Ningbo
