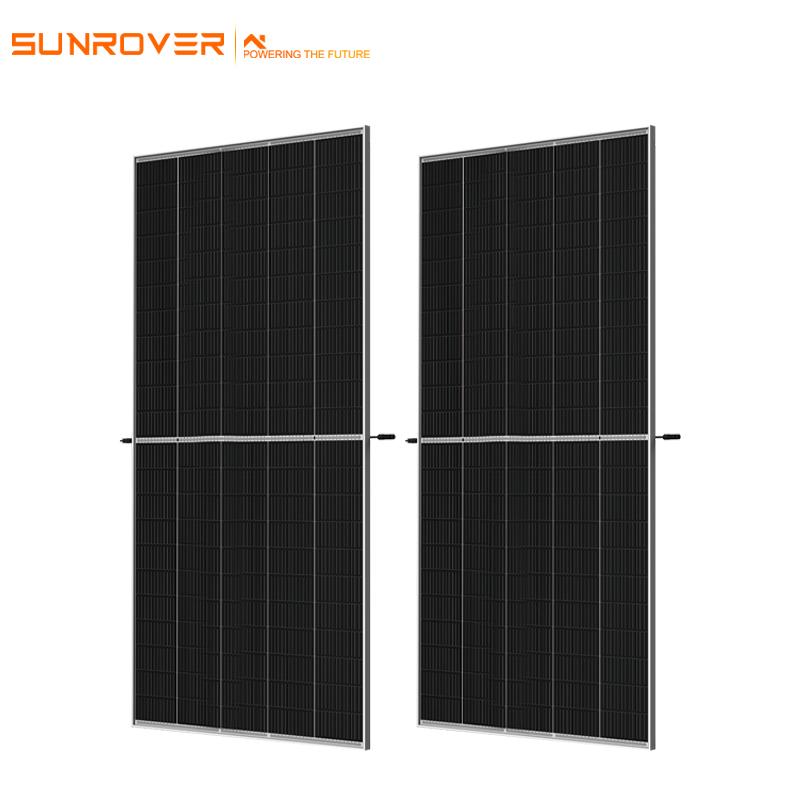

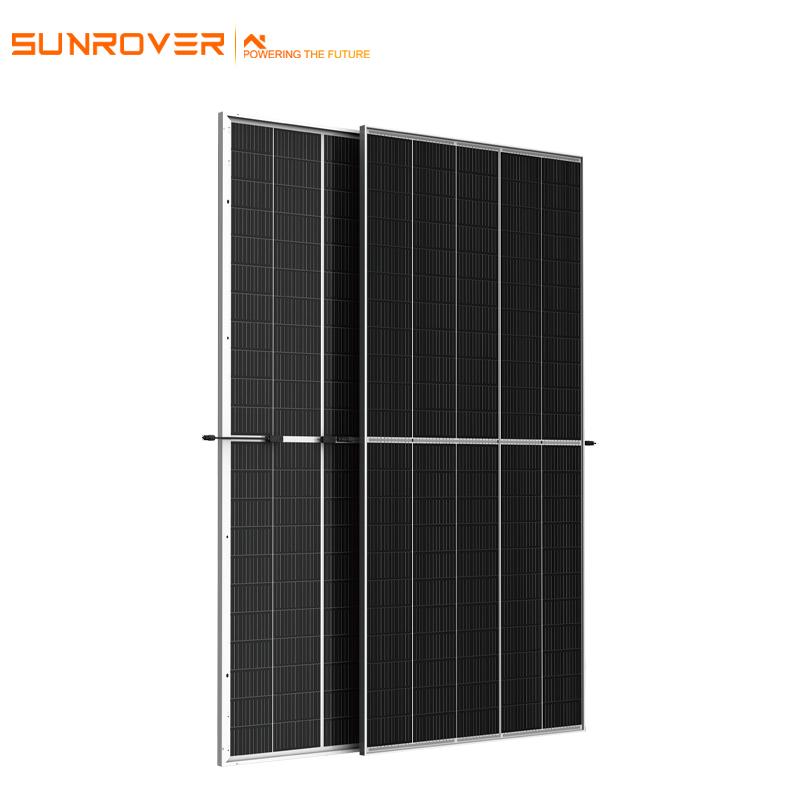

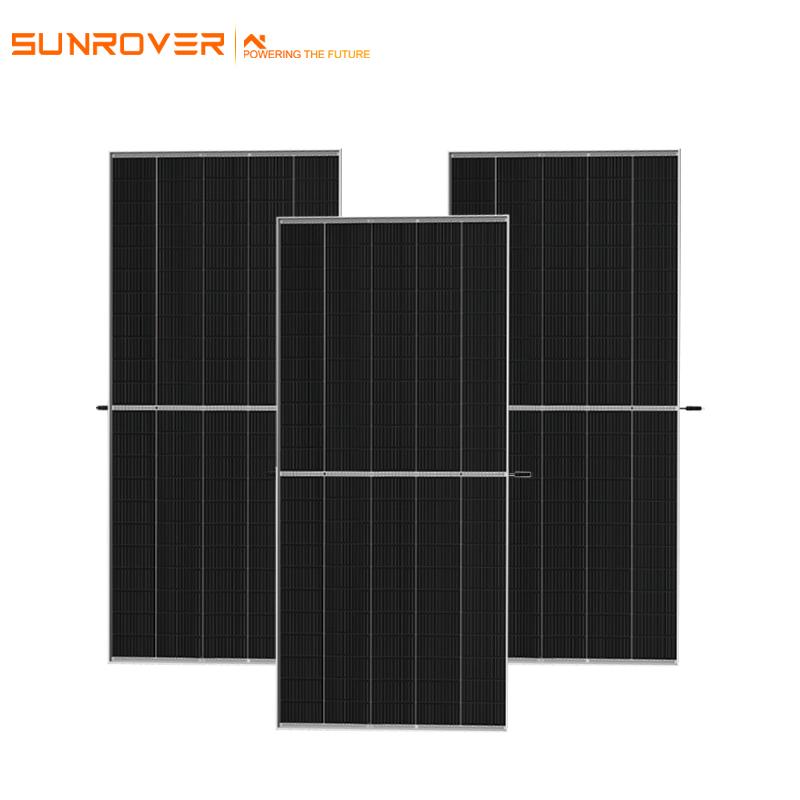

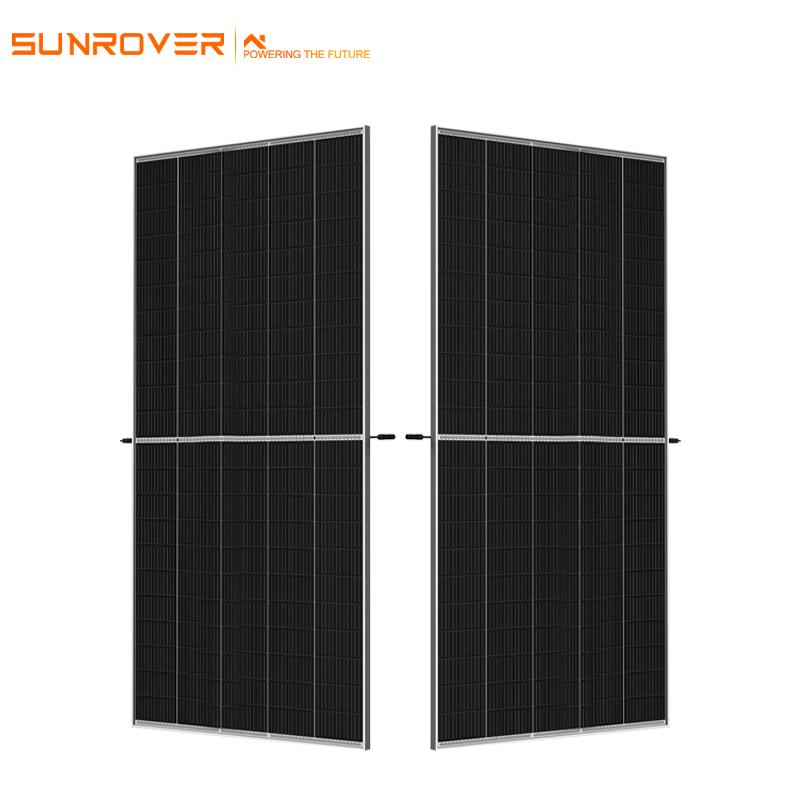

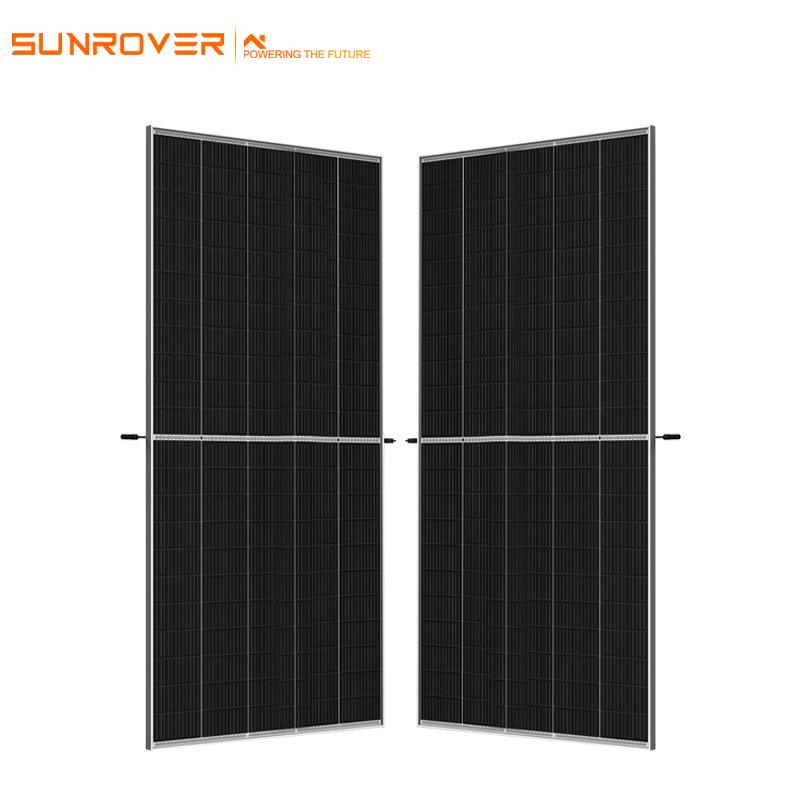

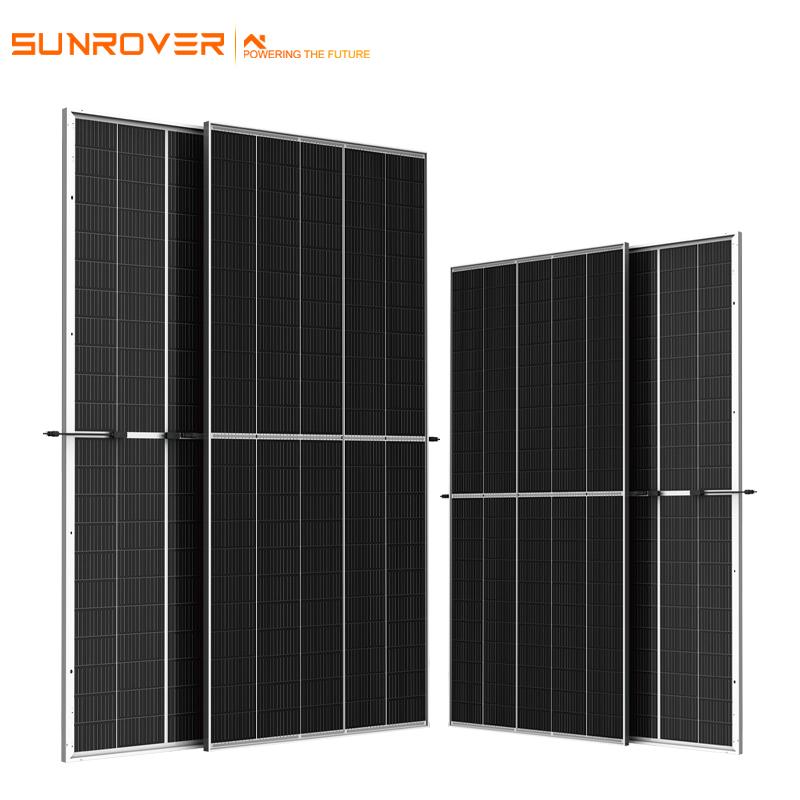

Double glass transparent bifacial half cell pv modules with 12 years material warranty from 535w to 555w
Double glass transparent bifacial half cell pv modules with 12 years material warranty from 535w to 555w
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
3days（1—100000w）；5days（10001 —100000w）；1Weight：
21.8kgCell Type:
Mono crystallineNo.of cells:
150 cellsDimensions:
495w-515w(2187×1102×35mm)；525w-545w(2384×1096×35mm)；535w-555w(2384×1096×35mm)；Weight:
410w-430w(26.3kg)；525w-545w(28.6kg)；535w-555w(32.3kg)；Certificate:
CE/TUV/ISOPayment:
T/T / L/C / Paypal / Western UnionWarranty:
10yearsThe advantages of the bifacial mono perc half cell, such as reducing the possibility of forming hot spots, structural advantages including more powerful component design, reducing the operating temperature, and the battery configuration of shunt current, make the upper and lower parts of the module basically work as separate components, thus reducing the impact of internal resistance and some component shadows.
| Module | SUN535-DE21M | SUN540-DE21M | SUN545-DE21M | SUN550-DE21M | SUN555-DE21M |
| Maximum Power(Pmax) | 535W | 540W | 545W | 550W | 555W |
| Maximum Power Voltage(Vmp) | 31.20V | 31.40V | 31.60V | 31.80V | 32.00V |
| Maximum Power Current(Imp) | 17.16A | 17.21A | 17.24A | 17.29A | 17.35A |
| Open-circuit Voltage(Voc) | 37.50V | 37.70V | 37.90V | 38.10V | 38.30V |
| Short-circuit Current(Isc) | 18.24A | 18.30A | 18.35A | 18.39A | 18.43A |
| Module Efficiency STC(%) | 20.50% | 20.70% | 20.90% | 21.00% | 21.24% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1500V DC(IEC/UL) | ||||
| Maximum series fuse rating | 35A | ||||
| Power tolerance | 0-+5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.250%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 43±2℃ | ||||
| Electrical Characteristics with Different Power Ranges | |||||
| SUN535-DE21M | SUN540-DE21M | SUN545-DE21M | SUN550-DE21M | SUN555-DE21M | |
| Rated Max Power(Pmax) | 573W | 578W | 583W | 589W | 594W |
| Open Circuit Voltage(Voc) | 37.50V | 37.70V | 37.90V | 38.10V | 38.30V |
| Max Power Voltage(Vmp) | 31.20V | 31.40V | 31.60V | 31.80V | 32.00V |
| Short Circuit Current(Isc) | 19.52A | 19.58A | 19.63A | 19.68A | 19.73A |
| Max Power Current(Imp) | 18.36A | 18.41A | 18.45A | 18.50A | 18.55A |
| Irradiance ratio(rear/front) | 10% | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover Solar |
| Model Number: | SUN535-555 DE21M(18)-B |
| Type: | PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel |
| Panel Efficiency: | 19.50%, 19.70%, 19.90%, 20.20%, 20.40% |
| Certificate: | ISO/CE/TUV/ETL |
| Warranty: | 10YEARS |
| Solar cell: | Monocrystalline Silicon 166*166mm |
| Glass: | 3.2mm High Tranamission Low Iron |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | Split junction box (IP68, three diode) |
| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | Support for solar panel 450 watt stock double glass |
| Supply Ability | 10000 Piece/Pieces per Week solar panel 450 watt stock double glass |
| Packaging & delivery | |
| Packaging Details | Half cell Mono solar panel from 410w to 670w stock double glass |
| 1. Standard exporting Wooden and Carton Box | |
| 2. Container: 40'HQ | |
| 3. Pallets Per Container: 22 | |
| 4. Pieces Per Container: 660 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai , China |
| Quantity(watts) | 1 - 10000 | 10001 - 100000 | 100001 - 1000000 | >1000000 |
| Lead time (days) | 3 | 5 | 10 | To be negotiated |
