All black frame half cut mono solar panel for roof home solar energy system
All black frame half cut mono solar panel for roof home solar energy system
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
3days（1—100000w）；5days（10001 —100000w）；1Weight：
21.8kgCell Type:
Mono crystallineNo.of cells:
144 cellsDimensions:
410w-430w(1762×1134×30mm)；445w-465w(2094×1038×35mm)；485w-505w(2187×1102×35mm)；Weight:
410w-430w(21.8kg)；445w-465w(23.3kg)；485w-505w(26.3kg)；Certificate:
CE/TUV/ISOPayment:
T/T / L/C / Paypal / Western UnionWarranty:
10yearsFor half cell panels, they actually cut ordinary solar cells in half. Unlike the common PV modules, which have 60 or 72 cells, they become 120 or 144 half cells, while maintaining the same design and size as conventional modules.
Like conventional components, the half cell package is also packaged with tempered glass, EVA and backplane. Conventional solar panels usually contain 60 0.5-0.6V solar cells in series. The voltage is increased in series, so the working voltage of the 60 chip module is 30-35V. If half of the cells are connected together as in a standard assembly, they will produce half the current and twice the voltage without changing the resistance
| Module | SUN445-DE17S | SUN450-DE17S | SUN455-DE17S | SUN460-DE17S | SUN465-DE17S |
| Maximum Power(Pmax) | 445W | 450W | 455W | 460W | 465W |
| Maximum Power Voltage(Vmp) | 41.30V | 41.50V | 41.70V | 41.90V | 42.10V |
| Maximum Power Current(Imp) | 10.78A | 10.85A | 10.92A | 10.98A | 11.05A |
| Open-circuit Voltage(Voc) | 49.10V | 49.30V | 49.50V | 49.70V | 49.90V |
| Short-circuit Current(Isc) | 11.53A | 11.60A | 11.66A | 11.73A | 11.80A |
| Module Efficiency STC(%) | 20.50% | 20.70% | 20.90% | 21.20% | 21.39% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | DC 1500V | ||||
| Maximum series fuse rating | 20A | ||||
| Power tolerance | 0-+5W | ||||
| Temperature coefficients of Pmax | -0.350%℃ | ||||
| Temperature coefficients of Voc | -0.270%℃ | ||||
| Temperature coefficients of Isc | 0.048%℃ | ||||
| Nominal operating cell temperature(NOCT) | 45±2℃ | ||||
| Essential details | |
| Place of Origin: | Anhui, China |

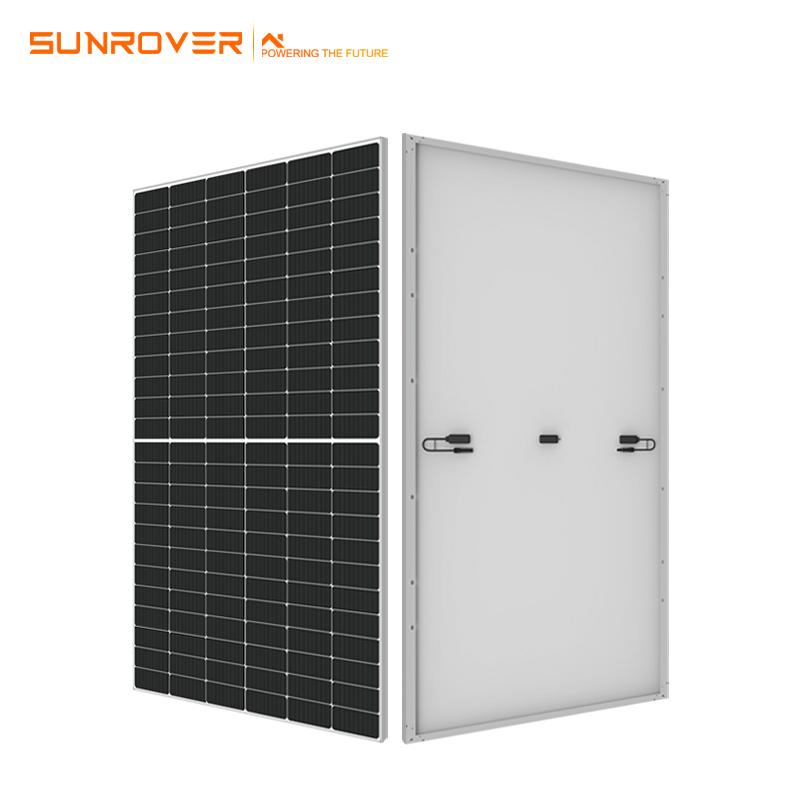

| Brand Name: | Sunrover Solar |
| Model Number: | SUN445-465 DE17S(15) |
| Type: | PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel |
| Panel Efficiency: | 19.50%, 19.70%, 19.90%, 20.20%, 20.40% |
| Certificate: | ISO/CE/TUV/ETL |
| Warranty: | 10YEARS |
| Glass: | 3.2mm High Tranamission Low Iron |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | Split junction box (IP68, three diode) |

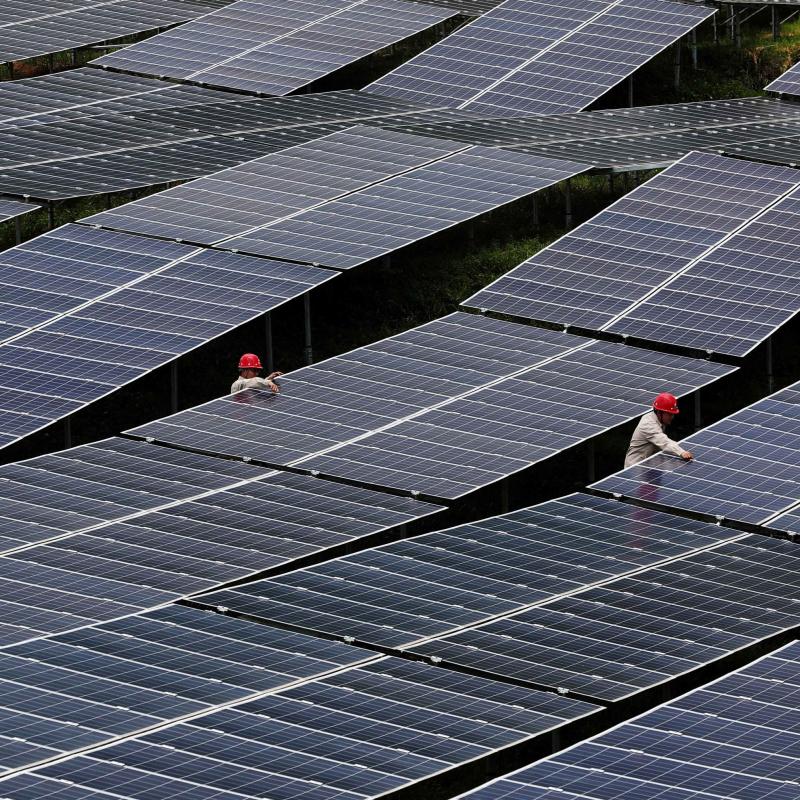

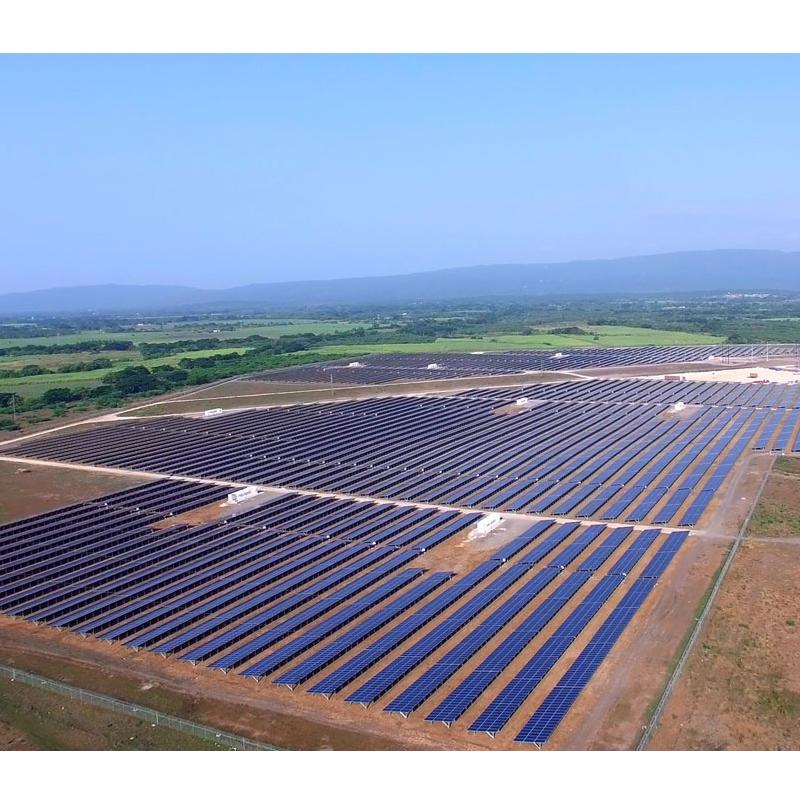

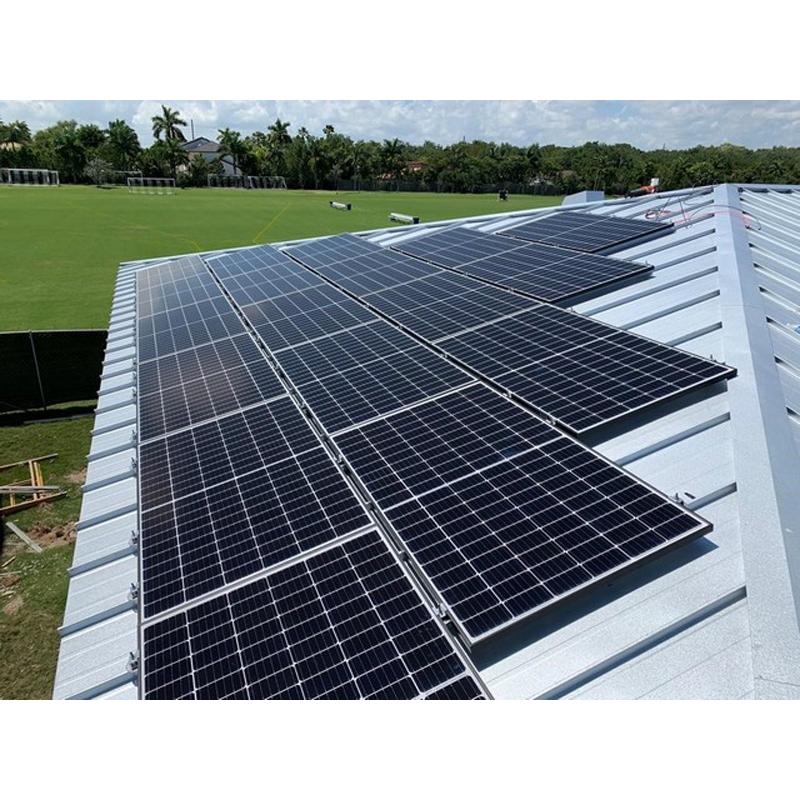

| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | Support for solar panel 450 watt stock double glass |
| Supply Ability | 10000 Piece/Pieces per Week solar panel 450 watt stock double glass |
| Packaging & delivery | |
| Packaging Details | Half cell Mono solar panel from 410w to 670w stock double glass |
| 1. Standard exporting Wooden and Carton Box | |
| 2. Container: 40'HQ | |
| 3. Pallets Per Container: 22 | |
| 4. Pieces Per Container: 660 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai , China |
| Quantity(watts) | 1 - 10000 | 10001 - 100000 | 100001 - 1000000 | >1000000 |
| Lead time (days) | 3 | 5 | 10 | To be negotiated |
