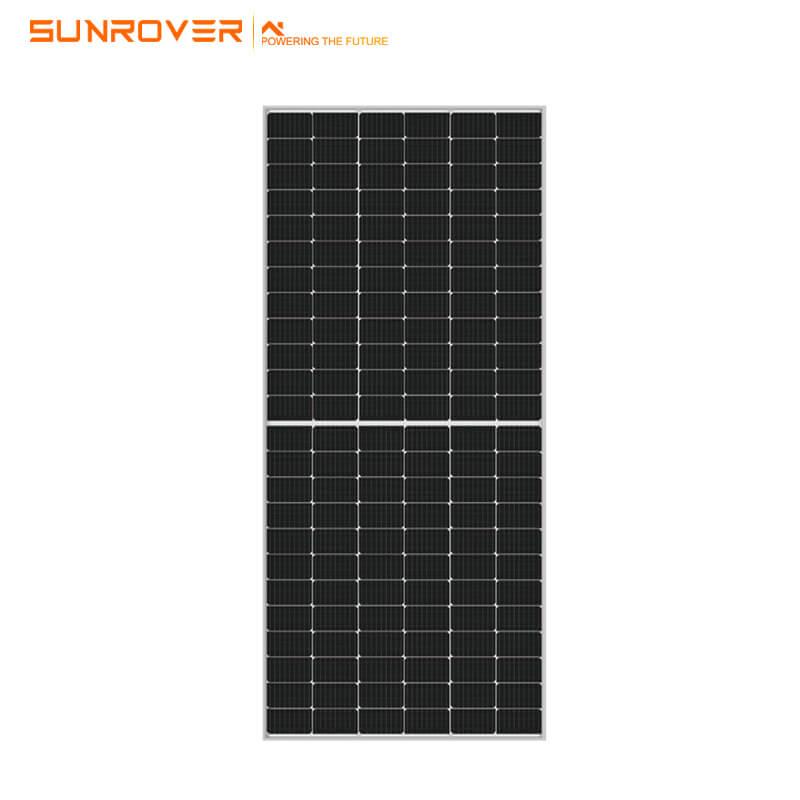

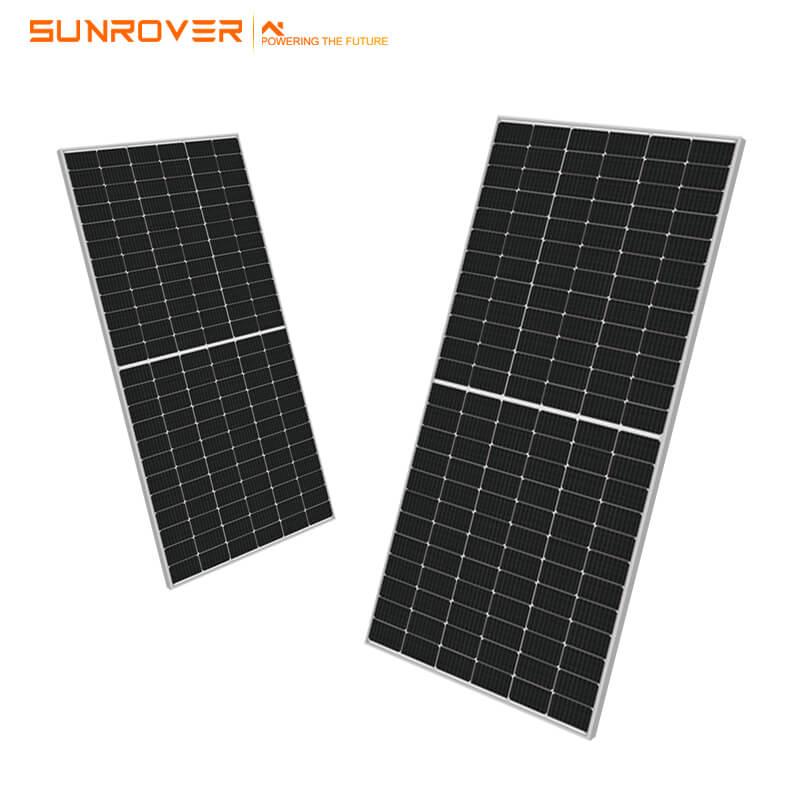

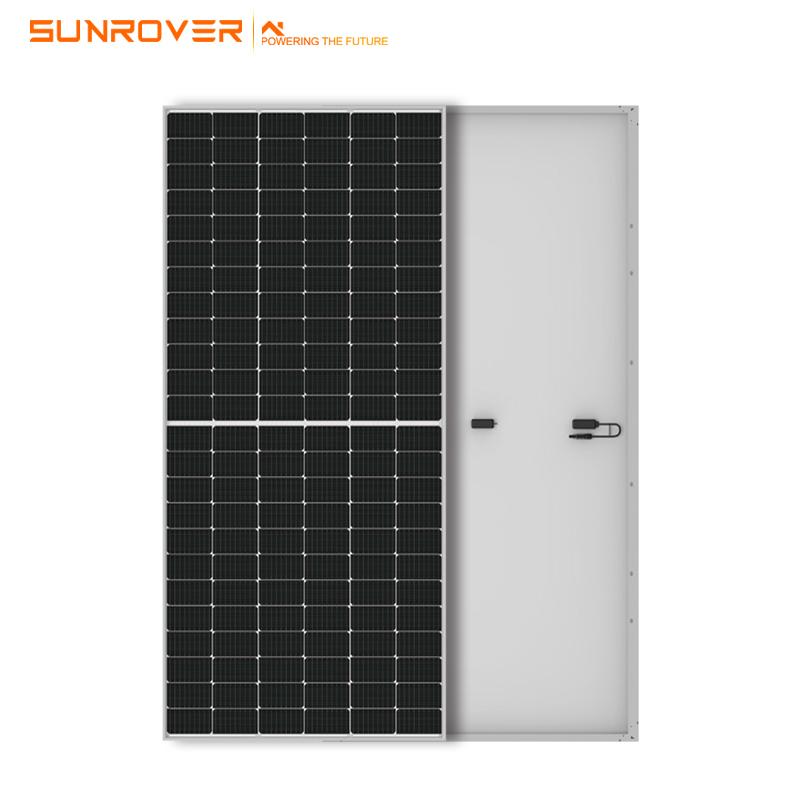

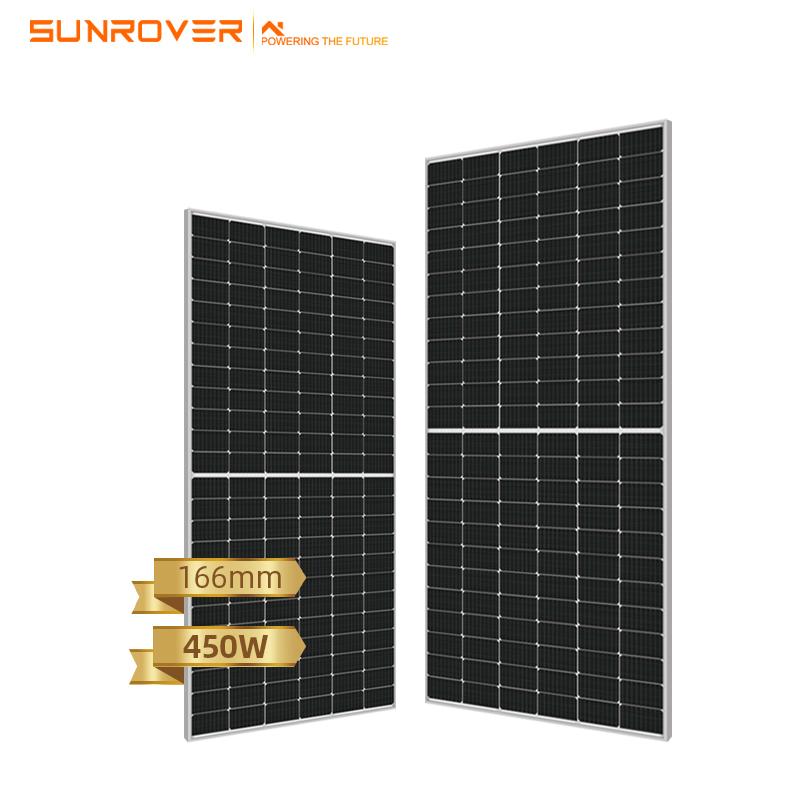

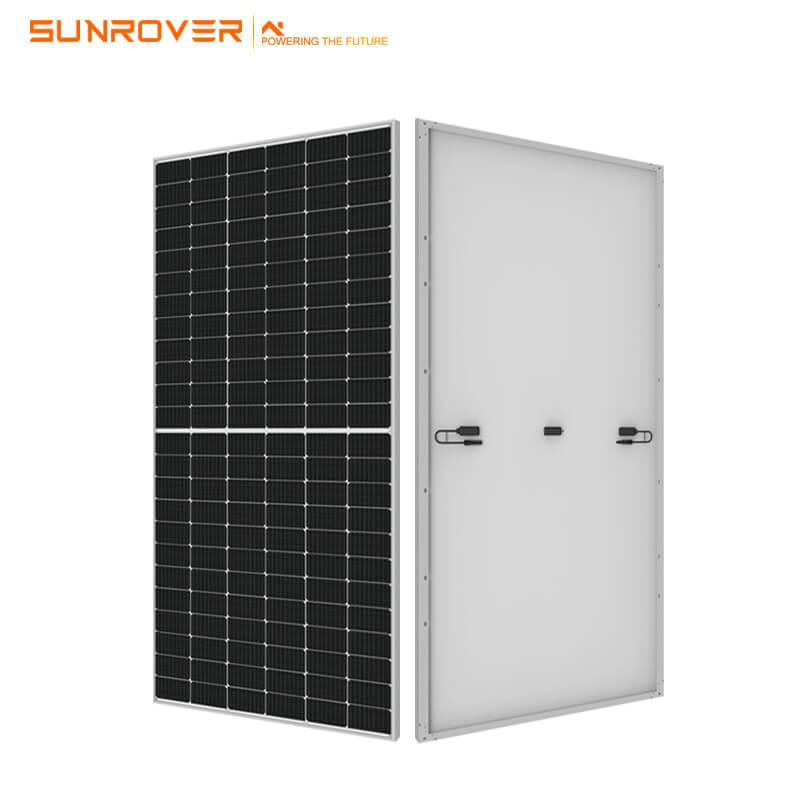

Item NO.:
SUN72M6 450HPHCell Type:
Mono crystallineNo.of cells:
144(6x24)Dimensions:
2094x91086x35mmWeight:
23.3kgPayment:
T/T, L/C, Western UnionWarranty:

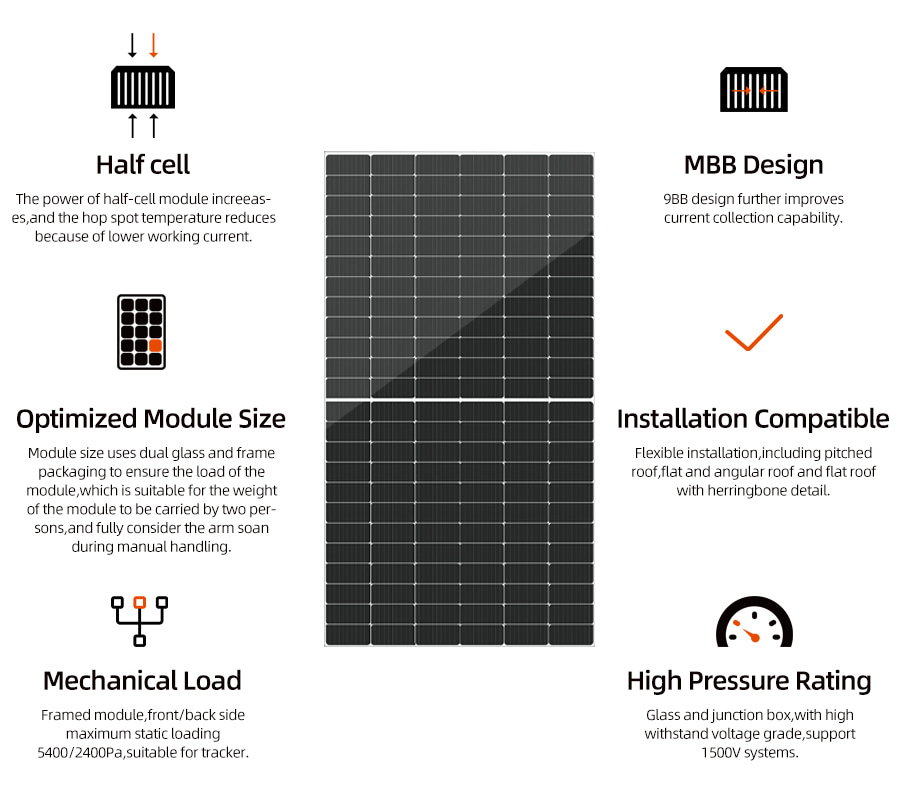

25yearsThe power of half-cell module increeas-es,and the hop spot temperature reduces
Flexible installation,including pitched roof,flat and angular roof and flat roof
9BB design further improvescurrent collection capability.
Products Discrition
|

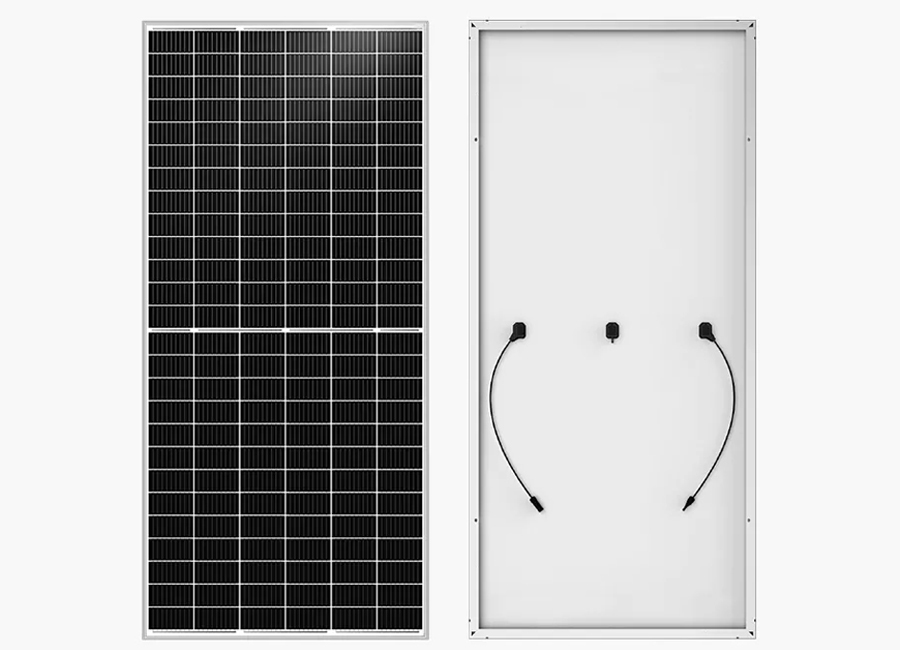

Mechanical Characteristics |
|
|
Cell Type |
Mono crystalline |
|
No.of cells |
144 (6x24) |
|

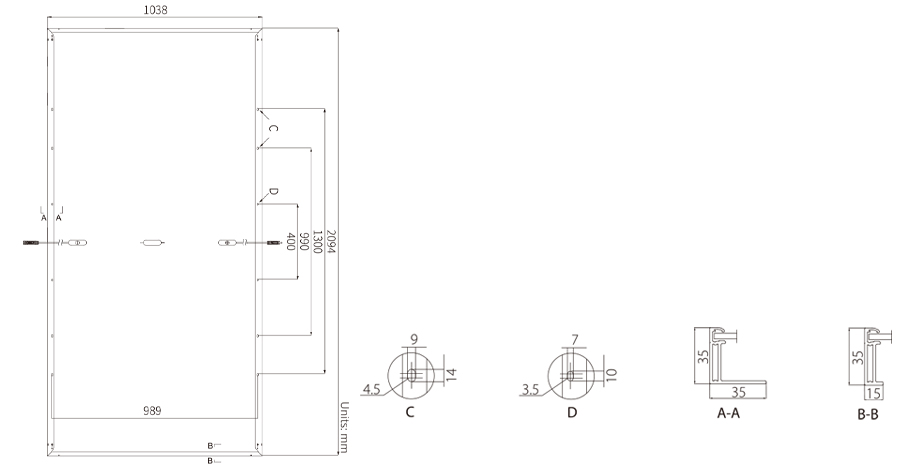

Dimensions |
2094x1038x35mm |
|
Weight |
23.3kg |
|
Glass |
Single glass,3.2mmm coated tempered glass |
|
Frame |
Anodized Aluminium Alloy |
|
Junction Box |
IP68,three diodes |
|
Output Cables |
Protrait:300mm(+)/400mm(-) Landscape: 1000mm(+)/1000mm(-) |
|
Module Type |
SUN440-72HPH |
SUN445-72HPH |
SUN450-72HPH |
SUN455-72HPH |
SUN460-72HPH |
|||||
|
Testing Condition |
STC | |||||||||
|
Maximum Power (Pmax) |
440Wp |
445Wp |
450Wp |
455Wp |
460Wp |
|||||
|
Maximum Power Voltage (Vmp) |
41.10V |
41.30V |
41.50V |
41.70V |
41.90V |
|||||
|
Maximum Power Current (Imp) |
10.71A |
10.78A |
10.85A |
10.92A |
10.98A |
|||||
|
Open-circuit Voltage (Voc) |
48.9V |
49.10V |
49.30V |
49.50V |
49.70V |
|||||
|
Short-circuit Current (Isc) |
11.46A |
11.53A |
11.60A |
11.66A |
11.73A |
|||||
|
Module Efficiency STC (%) |
20.20% |
20.50% |
20.70% |
20.90% | 21.2% | |||||
|
Power Tolerance |
0~+5W |
|||||||||
|
Operating Temperature(℃) |
-40℃~85℃ |
|||||||||
|
Standard Test Environment |
Irradiance1000W/m²,CellTemperature25℃SpectrumAM1.5 |
|||||||||

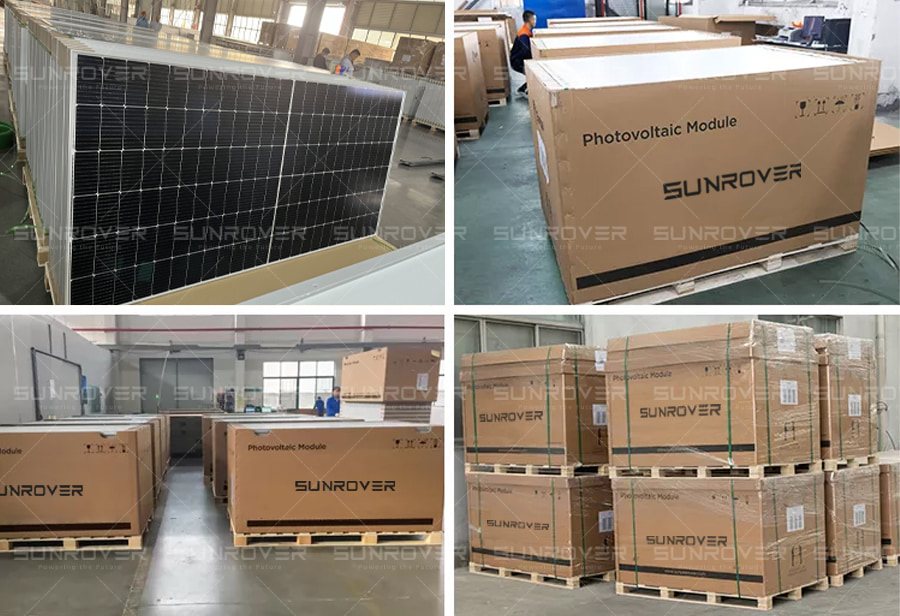

Packing Detail

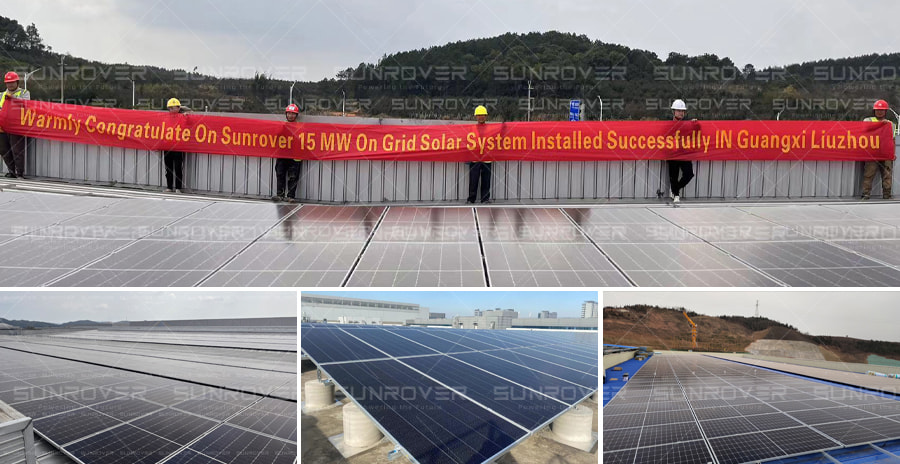

Projects
Sunrover is professional in solar panels manufacture and brackets produce, we are especially in solar system design, home use, comercial use also solar plant,
as a EPC company , the biggest prodjects we do is 50MW more details please contact:
Contact Person: Ms Aimee Ding
Tel/Wechat/Whatsapp: 0086-183-2617-33291
E-mail:info@sunroverpv.com
