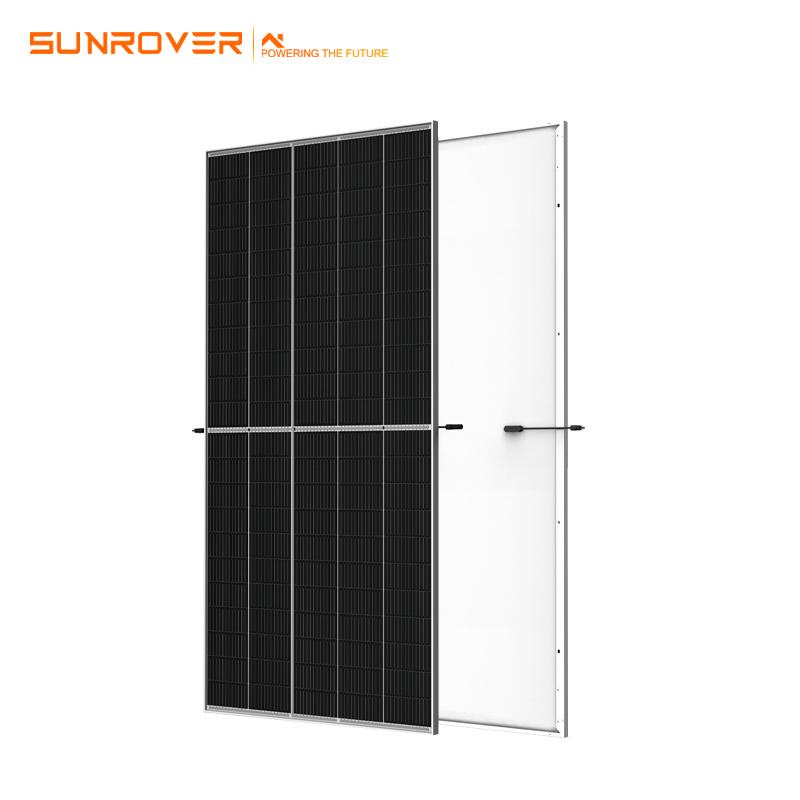

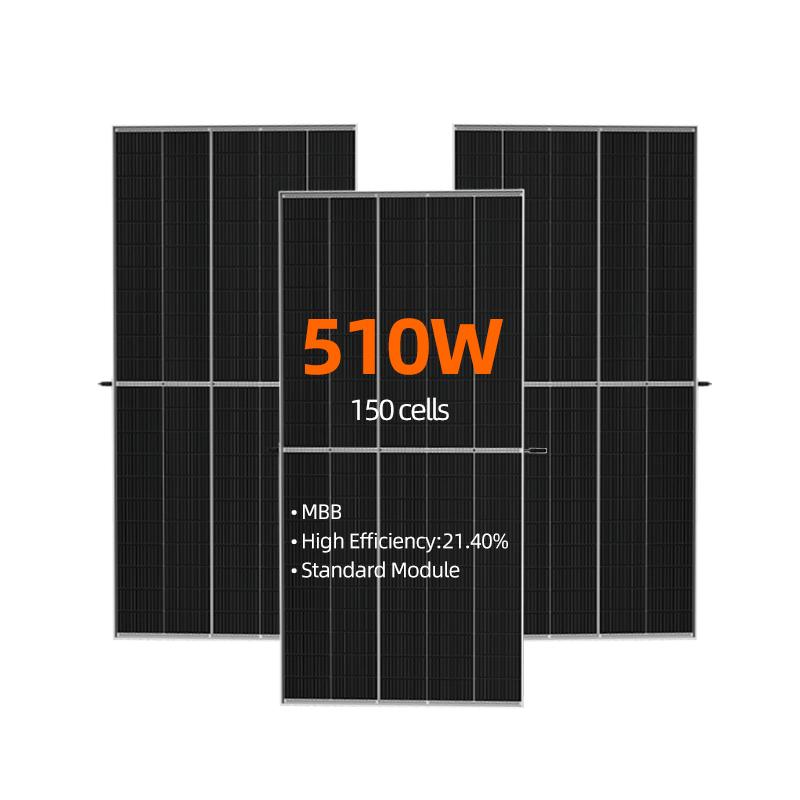

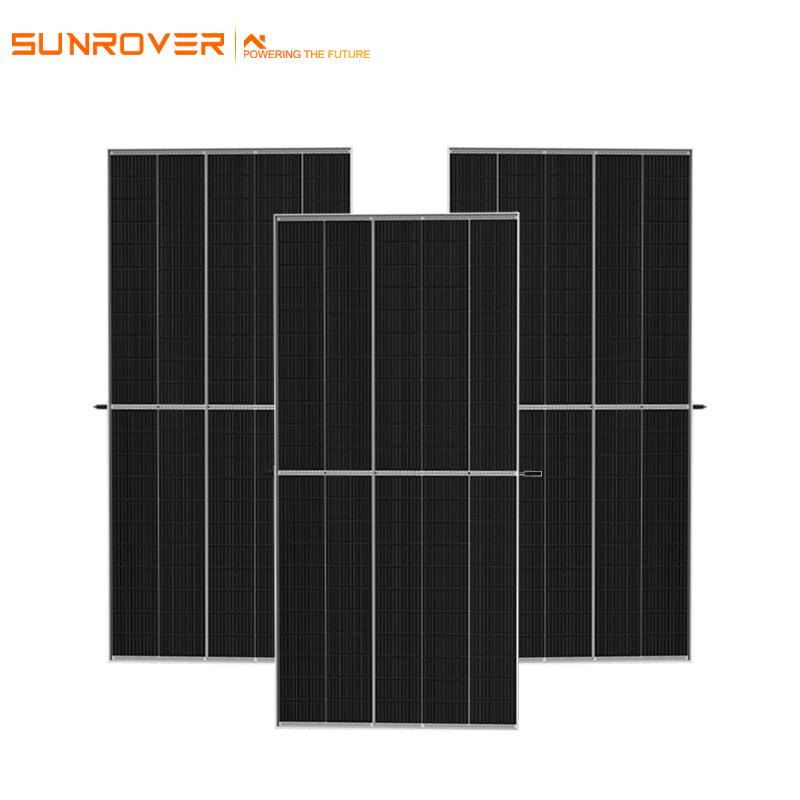

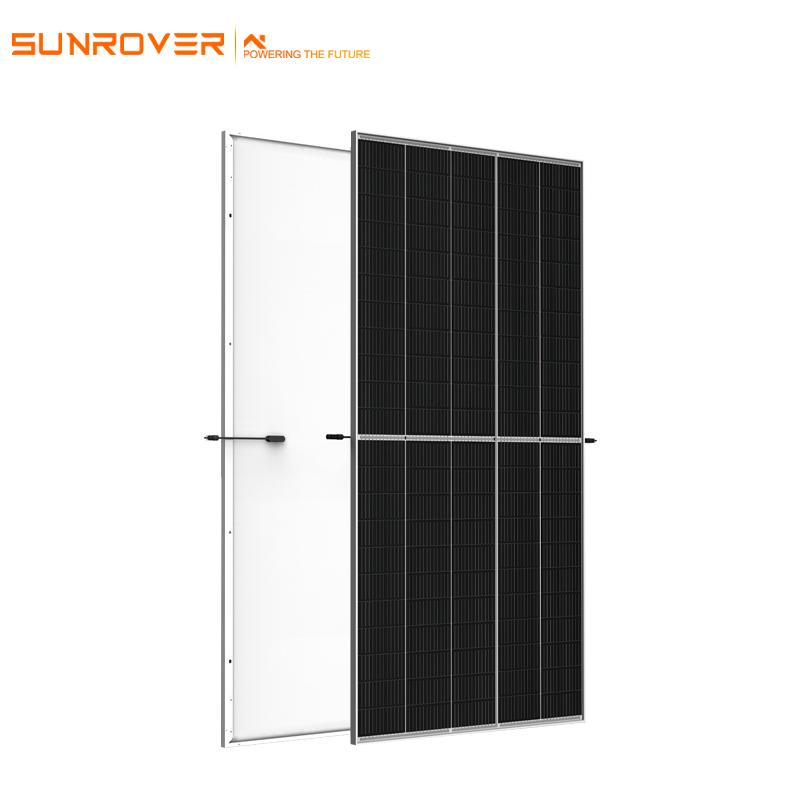

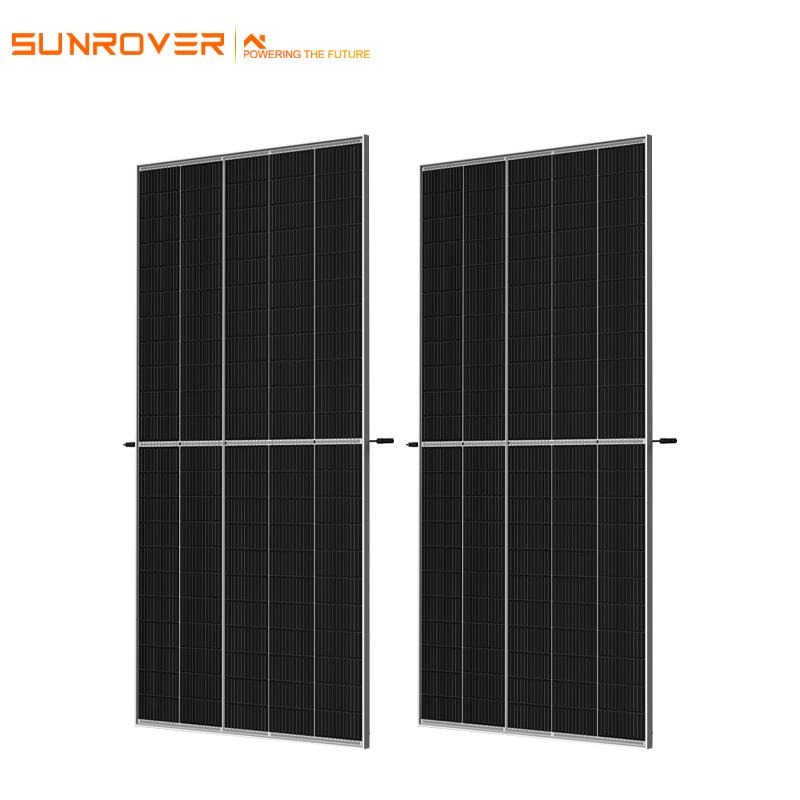

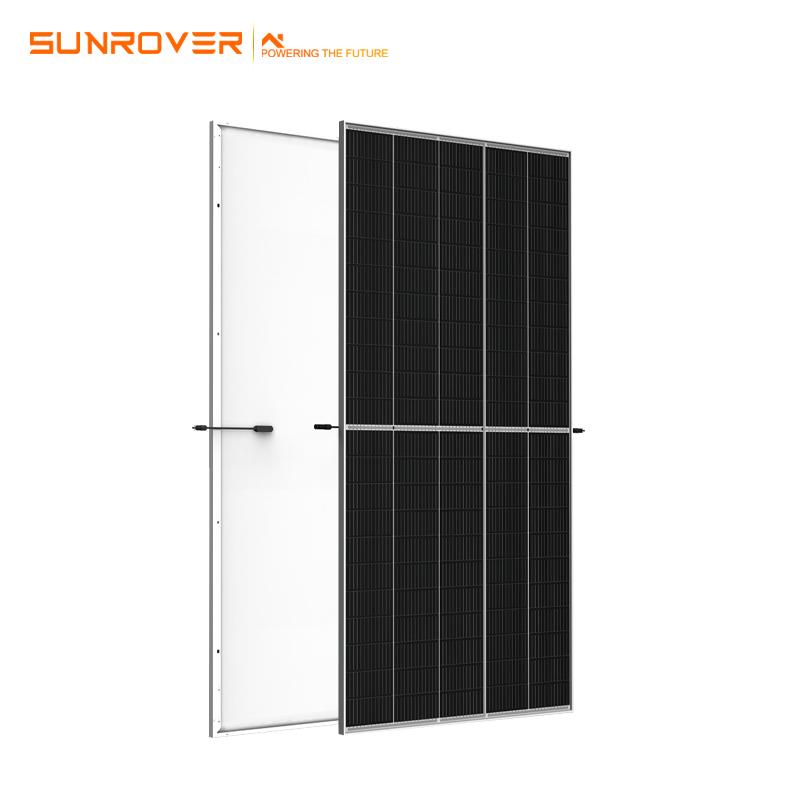

solar panel half cut with TUV/CE certification and 10Years Material Warranty from 495w to 515w
solar panel half cut with TUV/CE certification and 10Years Material Warranty from 495w to 515w
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
3days（1—100000w）；5days（10001 —100000w）；1Weight：
21.8kgCell Type:
Mono crystallineNo.of cells:
150 cellsDimensions:
495w-515w(2187×1102×35mm)；525w-545w(2384×1096×35mm)；535w-555w(2384×1096×35mm)；Weight:
410w-430w(26.3kg)；525w-545w(28.6kg)；535w-555w(32.3kg)；Certificate:
CE/TUV/ISOPayment:
T/T / L/C / Paypal / Western UnionWarranty:
10yearsMono half cell panels, which has high photoelectric conversion efficiency and good stability; The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, and the highest is 24%。
| Module | SUN495-DE21M | SUN500-DE21M | SUN505-DE21M | SUN510-DE21M | SUN515-DE21M |
| Maximum Power(Pmax) | 495W | 500W | 505W | 510W | 515W |
| Maximum Power Voltage(Vmp) | 42.60V | 42.80V | 43.00V | 43.20V | 43.40V |
| Maximum Power Current(Imp) | 11.63A | 11.69A | 11.75A | 11.81A | 11.87A |
| Open-circuit Voltage(Voc) | 51.50V | 51.70V | 51.90V | 52.10V | 52.30V |
| Short-circuit Current(Isc) | 12.21A | 12.28A | 12.35A | 12.42A | 12.49A |
| Module Efficiency STC(%) | 20.50% | 20.70% | 21.00% | 21.20% | 21.40% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1500V DC(IEC/UL) | ||||
| Maximum series fuse rating | 20A | ||||
| Power tolerance | 0-+5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.250%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 43±2℃ | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover Solar |
| Model Number: | SUN495-515 DE21M(11) |
| Type: | PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel |
| Panel Efficiency: | 19.50%, 19.70%, 19.90%, 20.20%, 20.40% |
| Certificate: | ISO/CE/TUV/ETL |
| Warranty: | 10YEARS |
| Glass: | 3.2mm High Tranamission Low Iron |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | Split junction box (IP68, three diode) |
| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | Support for solar panel 450 watt stock double glass |
| Supply Ability | 10000 Piece/Pieces per Week solar panel 450 watt stock double glass |
| Packaging & delivery | |
| Packaging Details | Half cell Mono solar panel from 410w to 670w stock double glass |
| 1. Standard exporting Wooden and Carton Box | |
| 2. Container: 40'HQ | |
| 3. Pallets Per Container: 22 | |
| 4. Pieces Per Container: 660 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai , China |
| Quantity(watts) | 1 - 10000 | 10001 - 100000 | 100001 - 1000000 | >1000000 |
| Lead time (days) | 3 | 5 | 10 | To be negotiated |
