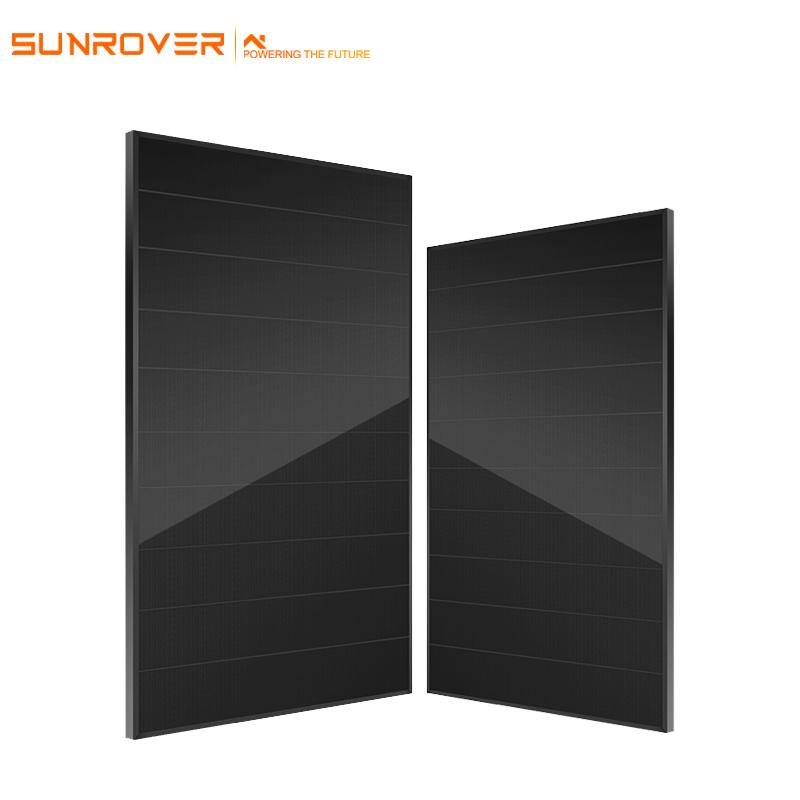

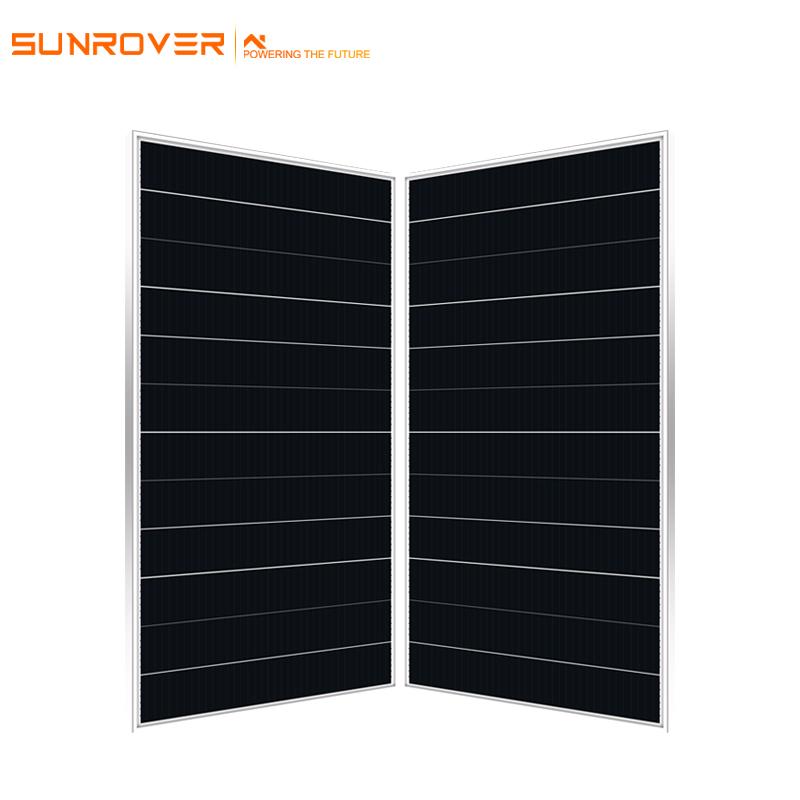

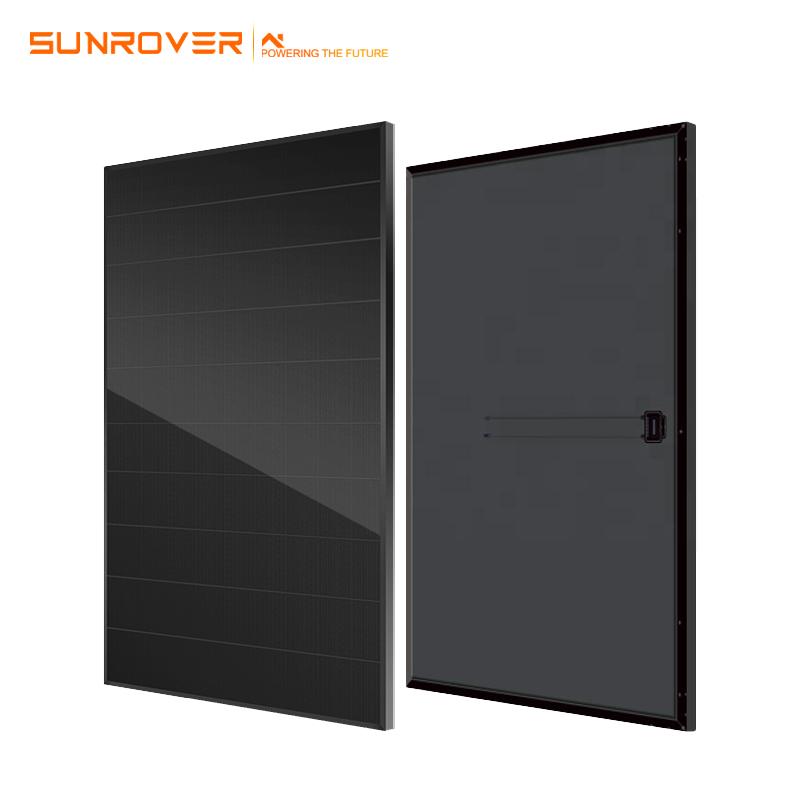

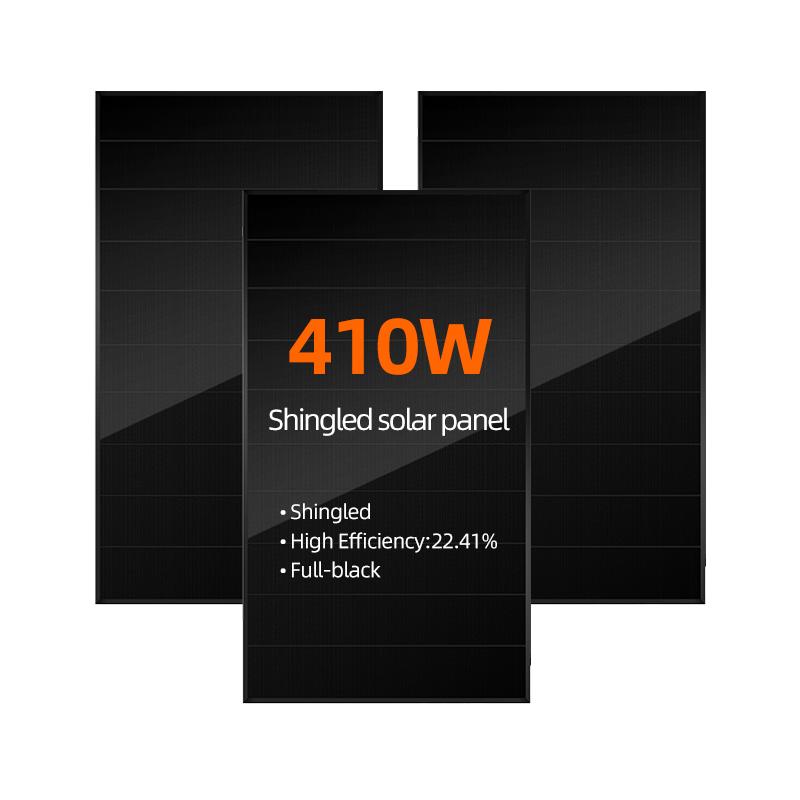

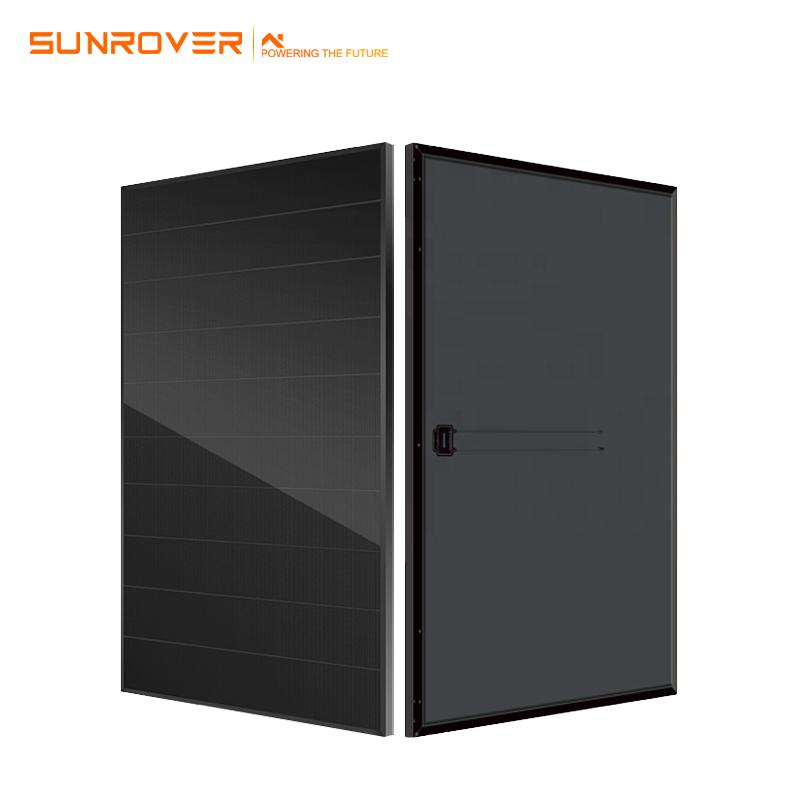

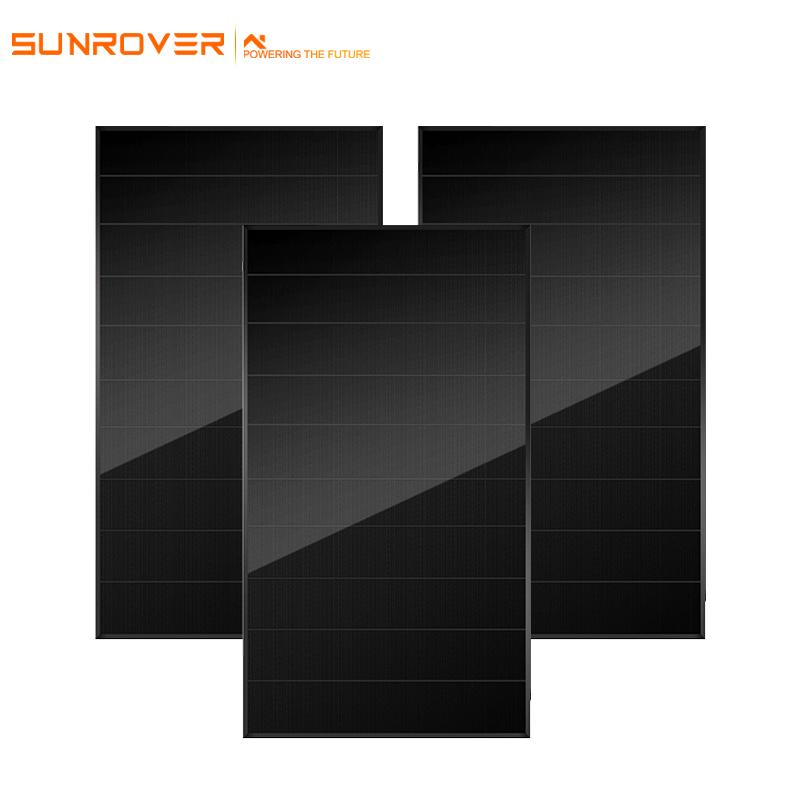

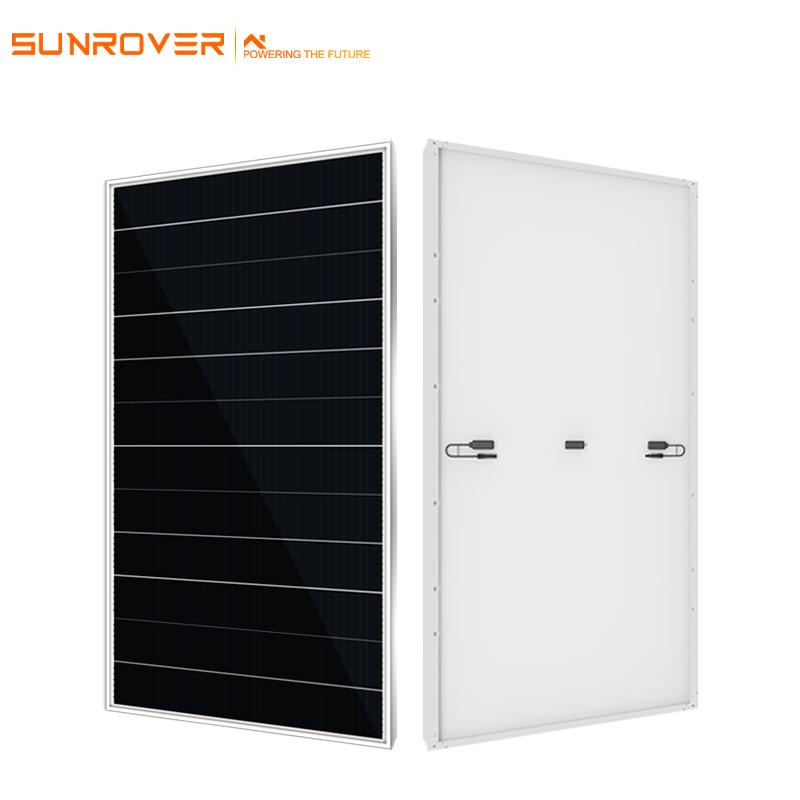

New Design shingled 410w watt full black mono solar panel
New Design shingled 410w watt full black mono solar panel
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
5days（1—100000w）；7days（100001 —10000000wWeight：
20kgCell Type:
Mono crystallineNo.of cells:
210mmDimensions:
390w-410w(1723×1134×35mm)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Weight:
390w-410w(20.5kg)；410w-430w(1723×1134×35mm)；540w-560w(2158×1236×35mm)；Certificate:
CE/TUVPayment:
T/T / L/C / Paypal / Western UnionWarranty:
25yearsNew Design shingled 410w watt full black mono solar panels
1. Module efficiency The greatest feature of the laminated module is that the main grid of the battery is placed between the layers of the battery, and there is no horizontal space between the batteries,
2. Production line compatibility The production of batteries for laminated modules is fully compatible with existing production lines.
3. Component layout and size At present, there are two basic versions of conventional components on the market, 60 and 72
| Module | SUN390-DE21M | SUN395-DE21M | SUN400-DE21M | SUN405-DE21M | SUN410-DE21M |
| Maximum Power(Pmax) | 390W | 395W | 400W | 405W | 410W |
| Maximum Power Voltage(Vmp) | 38.40V | 38.50V | 38.60V | 38.70V | 38.80V |
| Maximum Power Current(Imp) | 10.16A | 10.26A | 10.36A | 10.47A | 10.57A |
| Open-circuit Voltage(Voc) | 46.20V | 46.30V | 46.40V | 46.50V | 46.60V |
| Short-circuit Current(Isc) | 10.87A | 10.92A | 10.97A | 11.02A | 11.07A |
| Module Efficiency STC(%) | 20.32% | 20.58% | 20.85% | 21.10% | 21.34% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1000/1500V DC(IEC) | ||||
| Maximum series fuse rating | 20A | ||||
| Power tolerance | 0-5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.270%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 42.3±2℃ | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover |
| Model Number: | SUN420-60FB 420W |
| Cell size: | 182mmx182mm |
| Type: | PERC, Double-glass, All Black, MWT, IBC, HJT, hbc, Flexible, BIPV, Overlapping, shingled mono Solar Panel |
| Panel Dimensions: | 1719*1140*35mm |
| Panel Efficiency: | 21.10% |
| Certificate: | TUV/ETL/CE, complete international certificates |
| Warranty: | 25years |
| Product name: | TUV certified 420watt solar panel 700w for electricity |
| Solar cell: | Mono crystalline 182x182mm |
| Number of Cells: | 120cells |
| Weight: | 21kg |
| Glass: | 3.2mm white toughened safety Glass |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | IP67,Rated Current: 18A |
| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | yes |
| Supply Ability | |
| Supply Ability | 1000 Piece/Pieces per Week |
| Packaging & delivery | |
| Packaging Details | Shingled Solar Panel 420W Full Black Monocrystalline Solar Panel |
| 1.Standard exporting Wooden and Carton Box | |
| 2.Container: 40'HQ | |
| 3. Pieces Per Container: 806 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai/Ningbo |
