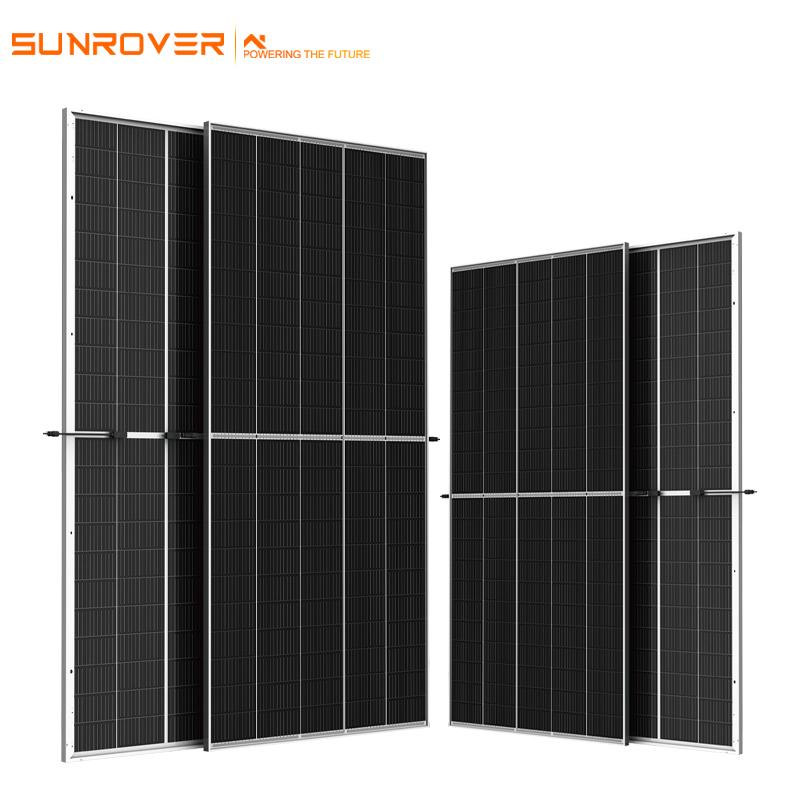

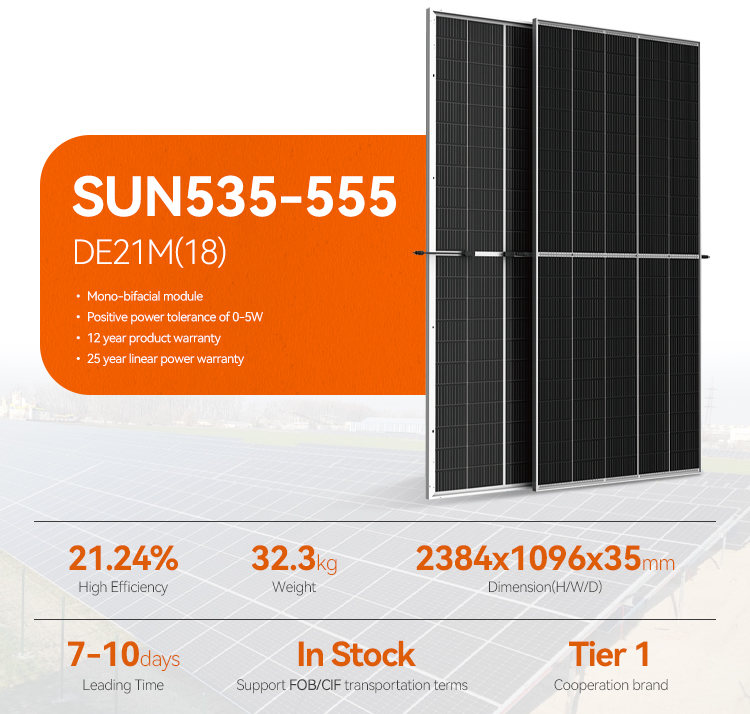

535w 540w 545w 550w 555w bifacial monocrystalline photovoltaic solar power panels with stock
535w 540w 545w 550w 555w bifacial monocrystalline photovoltaic solar power panels with stock
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
3days（1—100000w）；5days（10001 —100000w）；1Weight：
21.8kgCell Type:
Mono crystallineNo.of cells:
150 cellsDimensions:

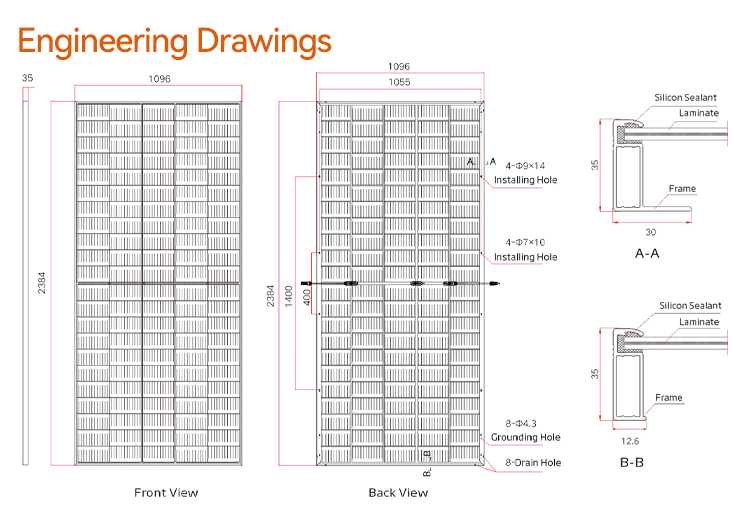

495w-515w(2187×1102×35mm)；525w-545w(2384×1096×35mm)；535w-555w(2384×1096×35mm)；Weight:
410w-430w(26.3kg)；525w-545w(28.6kg)；535w-555w(32.3kg)；Certificate:
CE/TUV/ISOPayment:
T/T / L/C / Paypal / Western UnionWarranty:
10yearsChina leading provider of Monocrystalline Solar Panel and Full Black Solar Panels, Sunrover power Co., Ltd. is Full Black Solar Panels provider.
Mono half cell panels, which has high photoelectric conversion efficiency and good stability; The photoelectric conversion efficiency of monocrystalline silicon solar cells is about 15%, and the highest is 24%。
| Module | SUN535-DE21M | SUN540-DE21M | SUN545-DE21M | SUN550-DE21M | SUN555-DE21M |
| Maximum Power(Pmax) | 535W | 540W | 545W | 550W | 555W |
| Maximum Power Voltage(Vmp) | 31.20V | 31.40V | 31.60V | 31.80V | 32.00V |
| Maximum Power Current(Imp) | 17.16A | 17.21A | 17.24A | 17.29A | 17.35A |
| Open-circuit Voltage(Voc) | 37.50V | 37.70V | 37.90V | 38.10V | 38.30V |
| Short-circuit Current(Isc) | 18.24A | 18.30A | 18.35A | 18.39A | 18.43A |

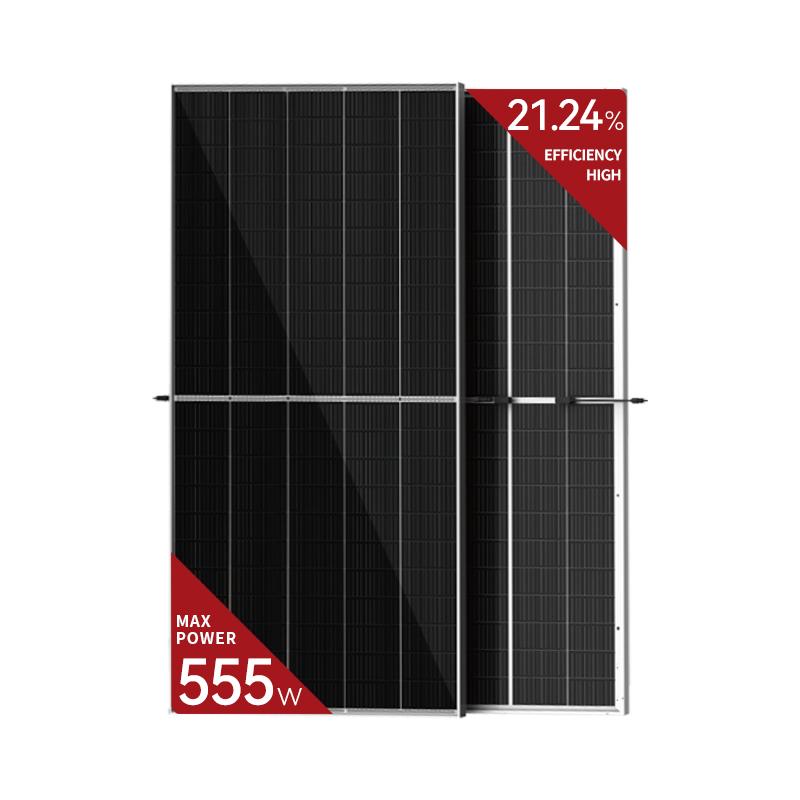

| Module Efficiency STC(%) | 20.50% | 20.70% | 20.90% | 21.00% | 21.24% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | 1500V DC(IEC/UL) | ||||
| Maximum series fuse rating | 35A | ||||
| Power tolerance | 0-+5W | ||||
| Temperature coefficients of Pmax | -0.340%℃ | ||||
| Temperature coefficients of Voc | -0.250%℃ | ||||
| Temperature coefficients of Isc | 0.04%℃ | ||||
| Nominal operating cell temperature(NOCT) | 43±2℃ | ||||
| Electrical Characteristics with Different Power Ranges | |||||
| SUN535-DE21M | SUN540-DE21M | SUN545-DE21M | SUN550-DE21M | SUN555-DE21M | |
| Rated Max Power(Pmax) | 573W | 578W | 583W | 589W | 594W |
| Open Circuit Voltage(Voc) | 37.50V | 37.70V | 37.90V | 38.10V | 38.30V |
| Max Power Voltage(Vmp) | 31.20V | 31.40V | 31.60V | 31.80V | 32.00V |
| Short Circuit Current(Isc) | 19.52A | 19.58A | 19.63A | 19.68A | 19.73A |
| Max Power Current(Imp) | 18.36A | 18.41A | 18.45A | 18.50A | 18.55A |
| Irradiance ratio(rear/front) | 10% | ||||
| Essential details | |
| Place of Origin: | Anhui, China |
| Brand Name: | Sunrover Solar |
| Model Number: | SUN535-555 DE21M(11) |
| Type: | PERC, Half Cell, Bifacial, Double-glass, Half Cut Solar Panel |
| Panel Efficiency: | 19.50%, 19.70%, 19.90%, 20.20%, 20.40% |
| Certificate: | ISO/CE/TUV/ETL |
| Warranty: | 10YEARS |
| Glass: | 3.2mm High Tranamission Low Iron |
| Frame: | Anodized Aluminium Alloy |
| Junction Box: | Split junction box (IP68, three diode) |

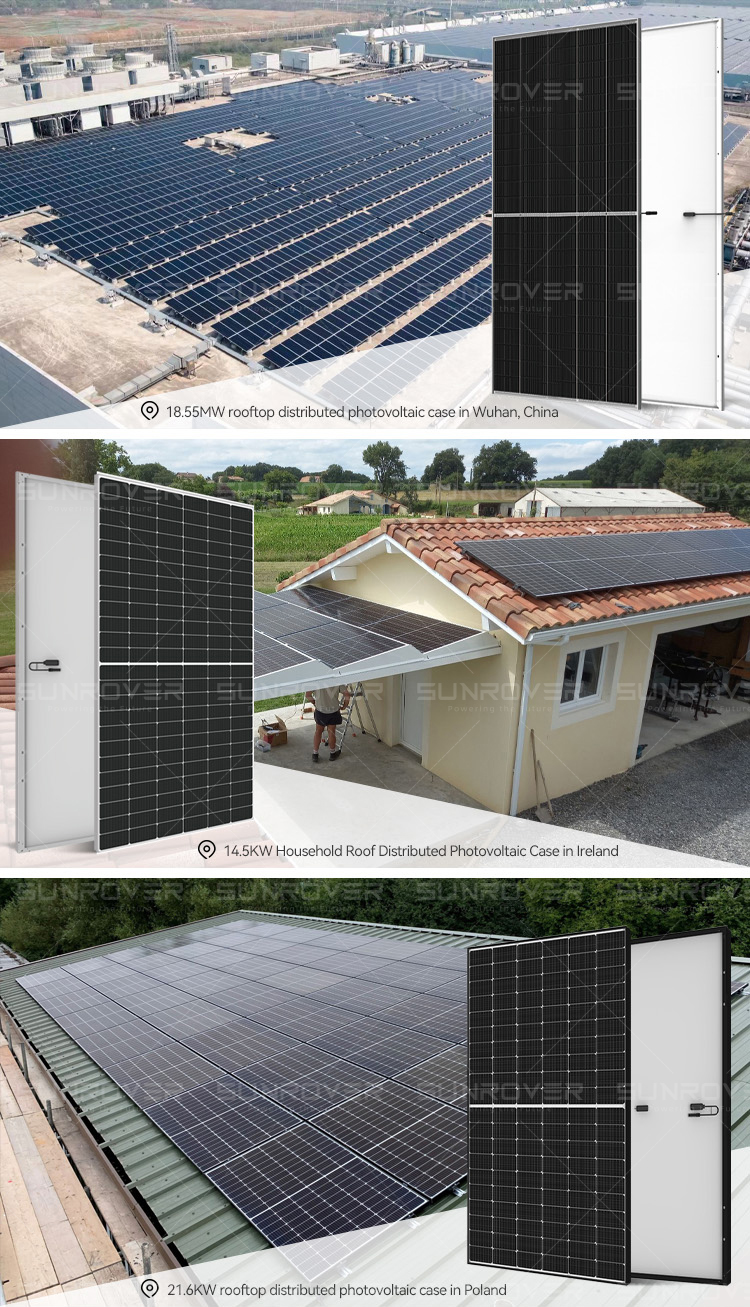

| Application: | Commercial, civil, open space, roof, lake surface, etc. |
| OEM/ODM: | Support for solar panel 450 watt stock double glass |
| Supply Ability | 10000 Piece/Pieces per Week solar panel 450 watt stock double glass |

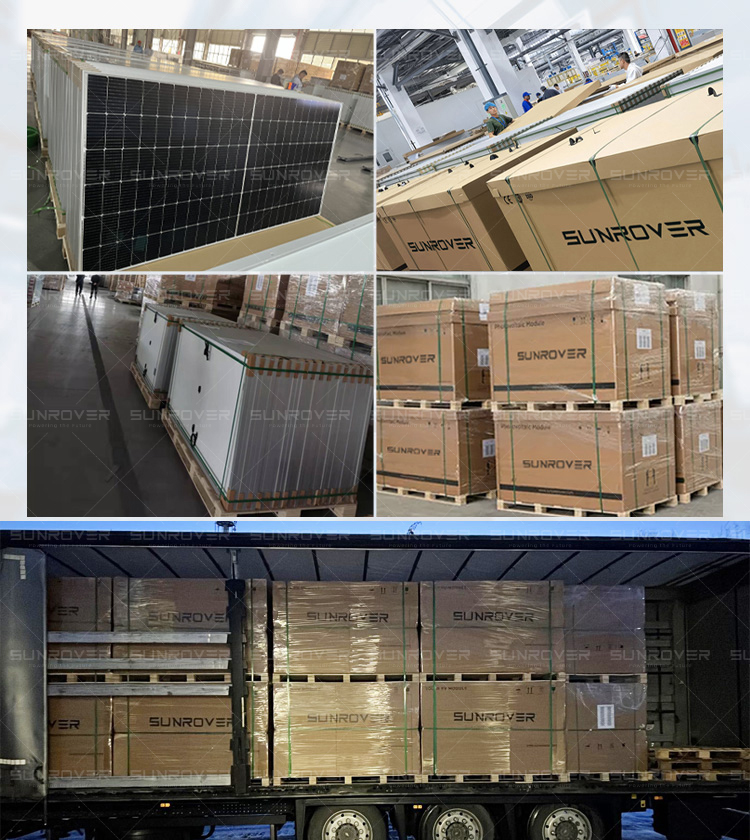

| Packaging & delivery | |
| Packaging Details | Half cell Mono solar panel from 410w to 670w stock double glass |
| 1. Standard exporting Wooden and Carton Box | |
| 2. Container: 40'HQ | |
| 3. Pallets Per Container: 22 | |
| 4. Pieces Per Container: 660 | |
| The packaging can be customized according to the needs of different customers | |
| Port | Shanghai , China |
| Quantity(watts) | 1 - 10000 | 10001 - 100000 | 100001 - 1000000 | >1000000 |
| Lead time (days) | 3 | 5 | 10 | To be negotiated |
