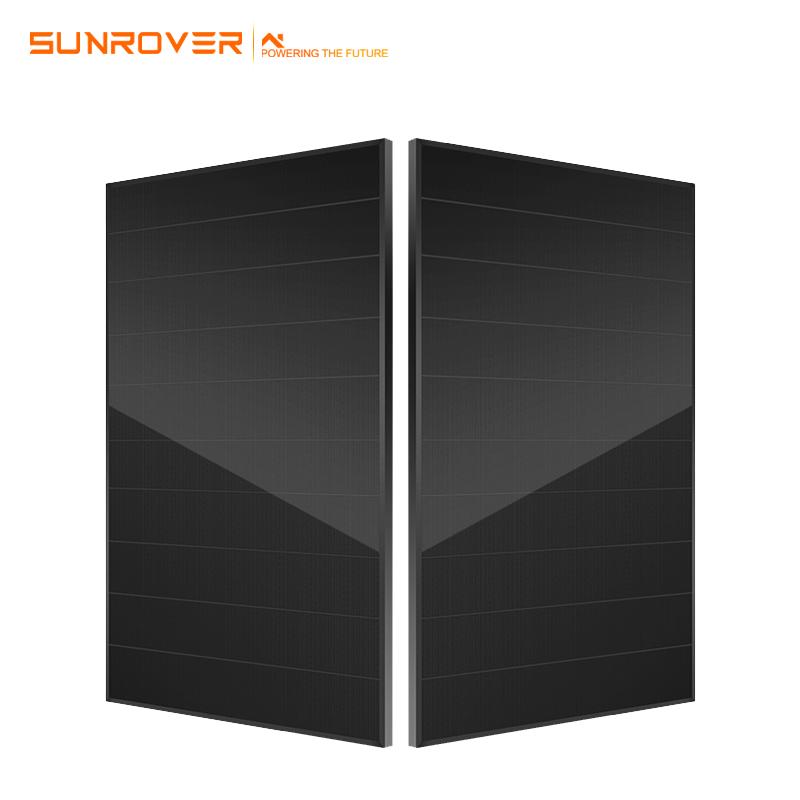

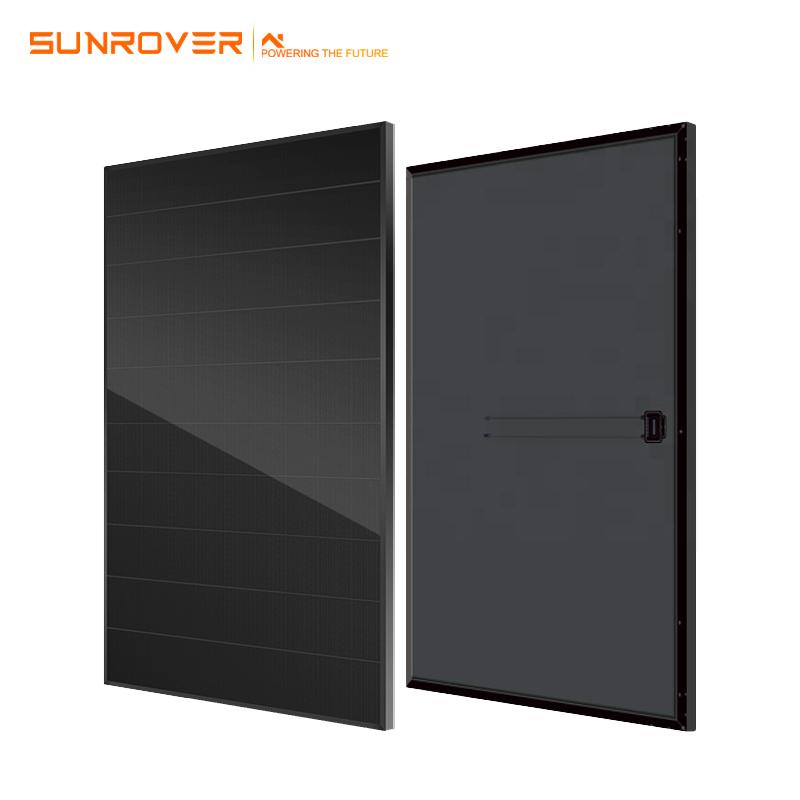

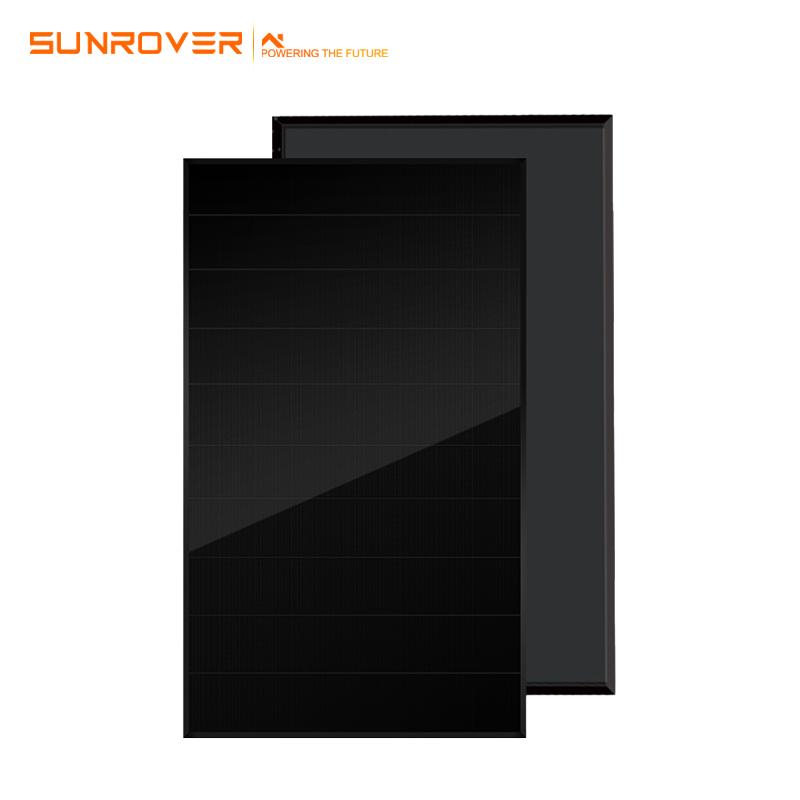

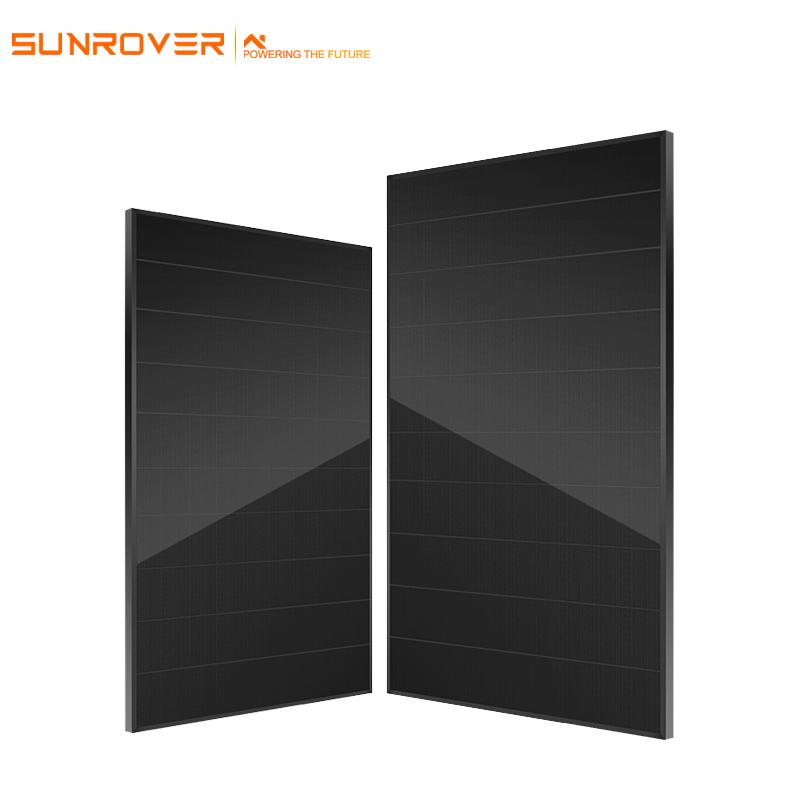

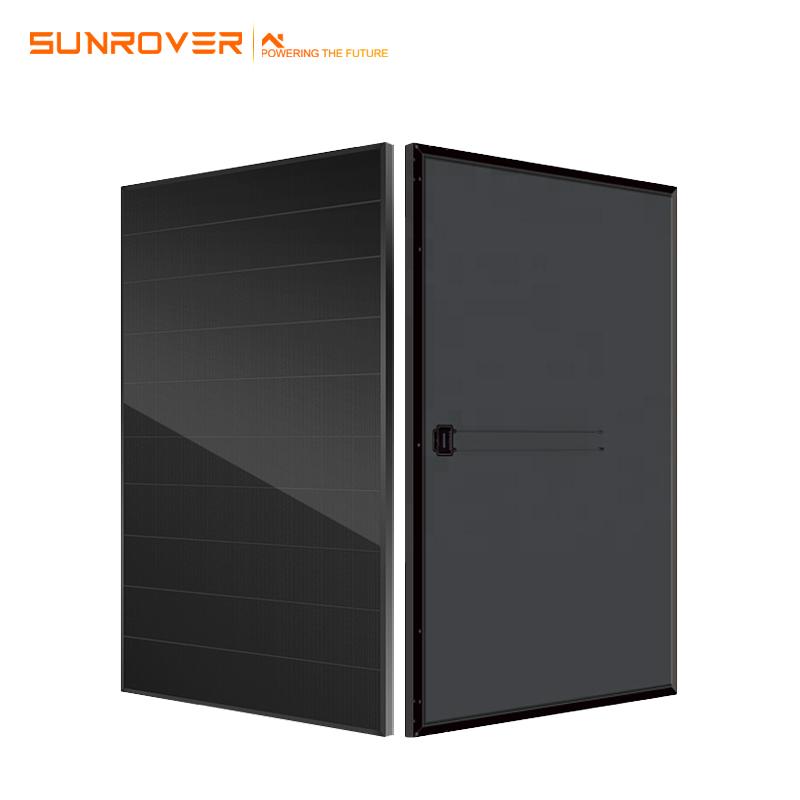

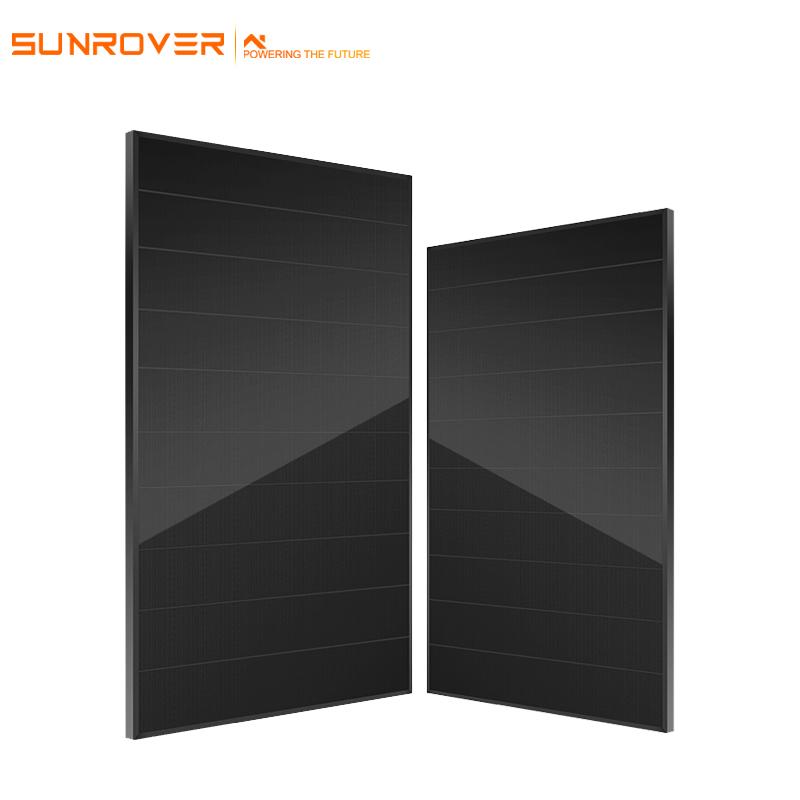

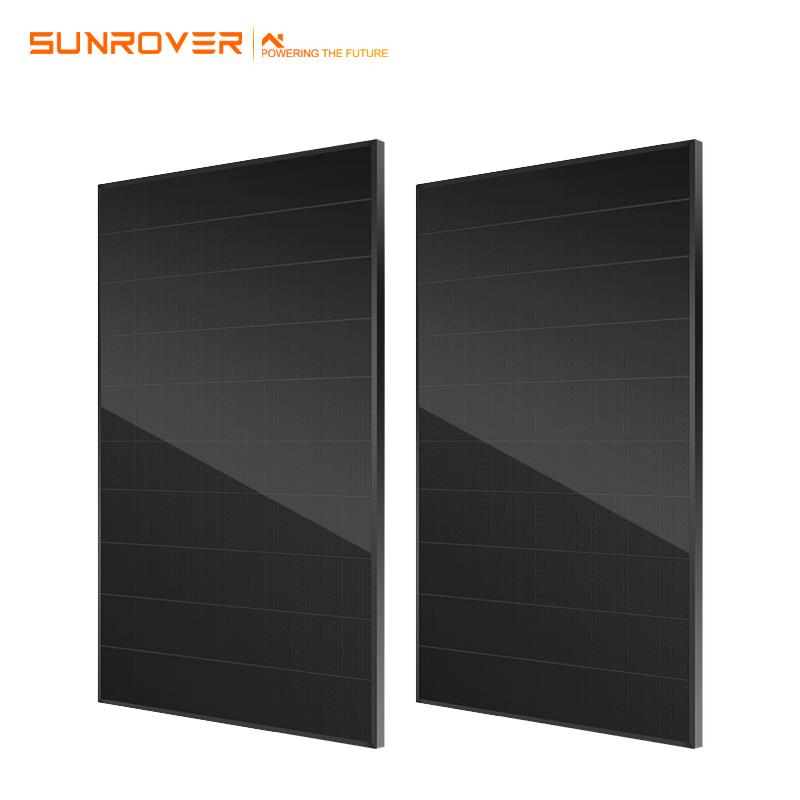

Factory direct full black shingled shingled pv module for Utility and Commercial use

There is no metal grid line on the surface of the laminated tile module, and the battery chips are seamlessly connected. 13% more battery chips are packaged. Traditional crystalline silicon modules are connected by metal grid wires, which generally reserve about 2~3mm battery chip spacing. The shingle module cuts the traditional battery chip into 4-5 pieces, and makes the edge area of the positive and negative surfaces of the battery into the main grid. The special conductive adhesive is used to interconnect the front surface edge of the previous battery chip with the back surface edge of the next battery chip, eliminating the welding of the welding strip. In a 60 type module with the same size, the laminated tile module can pack 66~68 complete battery chips, which is 13% more than the conventional packaging mode.
