Monocrystalline Silicon half cut MBB PERC Roof solar panels for sale durban
Monocrystalline Silicon half cut MBB PERC Roof solar panels for sale durban
Order(MOQ):
40HQProduct Origin:
chinaColor:
blackShipping Port:
shanghai/ningboLead Time：
3days（1—100000w）；5days（10001 —100000w）；1Weight：
21.8kgCell Type:
Mono crystallineNo.of cells:
144 cellsDimensions:
410w-430w(1762×1134×30mm)；445w-465w(2094×1038×35mm)；485w-505w(2187×1102×35mm)；Weight:
410w-430w(21.8kg)；445w-465w(23.3kg)；485w-505w(26.3kg)；Certificate:
CE/TUV/ISOPayment:
T/T / L/C / Paypal / Western UnionWarranty:
10yearsSpecification
| Module | SUN445-DE17S | SUN450-DE17S | SUN455-DE17S | SUN460-DE17S | SUN465-DE17S |
| Maximum Power(Pmax) | 445W | 450W | 455W | 460W | 465W |
| Maximum Power Voltage(Vmp) | 41.30V | 41.50V | 41.70V | 41.90V | 42.10V |
| Maximum Power Current(Imp) | 10.78A | 10.85A | 10.92A | 10.98A | 11.05A |
| Open-circuit Voltage(Voc) | 49.10V | 49.30V | 49.50V | 49.70V | 49.90V |
| Short-circuit Current(Isc) | 11.53A | 11.60A | 11.66A | 11.73A | 11.80A |
| Module Efficiency STC(%) | 20.50% | 20.70% | 20.90% | 21.20% | 21.39% |
| Operating Temperature(℃) | -40℃~+85℃ | ||||
| Maximum system voltage | DC 1500V | ||||
| Maximum series fuse rating | 20A | ||||
| Power tolerance | 0-+5W | ||||
| Temperature coefficients of Pmax | -0.350%℃ | ||||
| Temperature coefficients of Voc | -0.270%℃ | ||||
| Temperature coefficients of Isc | 0.048%℃ | ||||
| Nominal operating cell temperature(NOCT) | |||||
Product Advantage：
Resistance to salt-spray corrosion：(IEC61701, certified to TUV test standard)
Resistance to ammonia corrosion：(IEC62716,certified to TUV test standard)
Fire safety：(Class C, certified to TUV test standards)
Attenuation passed TUV system：voltage endurance test
Excellent power output ofmodules in low lightenvironment
100% double EL test Enablingremarkable reduction ofhidden crack rate of modules。
Product Parameters:
Green Technology Creates Golden Future
PV-Module：10 years professional brand,10 years quality pursue，10 years professional photovoltaic products manufacturer
Monocrystalline Module 435-460W
Maximum Power Output：460W
Maximum Module Efficiency：21.3%
Project Case
Certifications

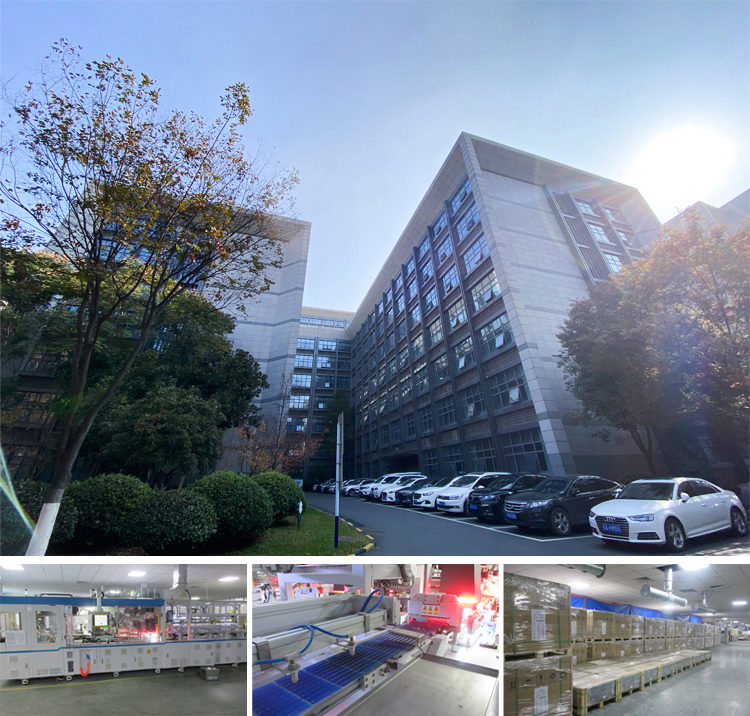

Company Profile
