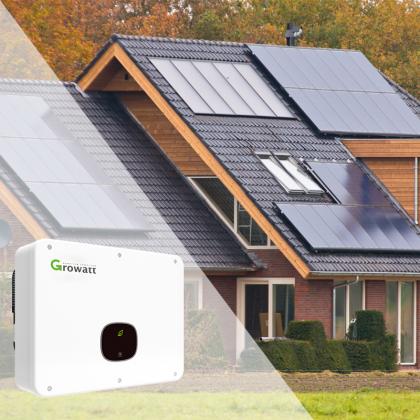

Growatt Off Grid Solar Inverter for Home Appliances and Personal

1. Easy to operate, convenient and fully functional.

2. Suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.

3. Smart diagnosis, high switch frequency, WiFi/GPRS Real time monitoring.

4. Sunrover solar energy system product supply chain has received favors and praises from various overseas home use customers, small business customers , government projects.

Our Advantages:

1. Sunrover is an emerging brand in the photovoltaic industry. Sunrover's customers are located on all continents. We provide the highest quality products and the most professional services. We provide different design solutions for large, medium and small customers. We continue to develop and improve technology to bring a better experience to our users.
2. All products have standard packaging, and can also provide the required services according to the packaging needs of customers.
3. Every product is in stock in the warehouse, and a professional foreign trade team serves every customer, with fast delivery and safe arrival.
4. Our main product is Solar panles, solar power system, solar inverter, solar battery

   Overview
   Essential details
   Place of Origin:	Anhui, China
   Brand Name:	Growatt
   Model Number:	SPF 3500-5000ES
   Input Voltage:	230V
   Output Voltage:	120V-430V
   Output Current:	80A-100A
   Output Frequency:	50/60Hz
   Output Type:	Single
   Size:	330*485*135mm
   Type:	DC/AC Inverters
   Inverter Efficiency:	93.00%
   Certificate:	CE,TUV
   Warranty:	5 Years
   Weight:	11.5kg/12.0kg
   Product name:	Growatt SPF3500ES SPF5000ES 24V 48V Off Grid Solar Inverter
   Inverter type:	Off-grid Power Inverter
   Communication:	WIFI/GPRS
   AC Input Voltage:	230V
   Maximum PV Array Power:	5500W
   Battery voltage:	48V
   MPPT Range @ Operating Voltage:	120VDC ~ 430VDC
   Waveform:	Pure sine wave
   Operating Temperature:	0℃ - 55℃
   Parallel Capability:	Yes, 6 units
   Supply Ability
   Supply Ability	10000 Set/Sets per Week
   Packaging & delivery
   Packaging Details	NW:12kg
   	GW:15kg
   	Size:485/330/135mm
   	Carton Size:580*550*250mm
   Port	Shanghai/Ningbo Port

   Lead time:
   Quantity(pieces)	1 - 100	101 - 1000	1001 - 10000
   Lead time (days)	5	10	30



   	SPF 3500ES	SPF 5000ES
   Battery Voltage	48VDC
   Battery Type	Lithium/Lead-acid
   Inverter Output
   Rated Power	3500VA/3500W	5000VA/5000W
   Parallel Capability	Yes,6 units maximum
   AC Voltage Regulation(Battery Mode)	230VAC ±5%@50/60Hz
   Surge Power	7000VA	10000VA
   Efficiency (Peak)	93%
   Waveform	Pure sine wave
   Transfer Time	10ms typical,20ms Max
   Solar Charger
   Maximum PV Array Power	4500W	6000W
   MPPT Range@Operating Voltage	120VDC-430VDC
   Number of Independent MPPT Trackers/String Per MPPT Tracker	1/1
   Maximum PV Array Open Circuit Voltage	450VDC
   Maximum Solar Charge Current	80A	100A
   AC Charger
   Charger Current	60A	80A
   AC Input Voltage	230VAC
   Selectable Voltage Range	170-280 VAC(For Personal Computers);90-280 VAC(For Home Appliances)
   Frequency Range	50Hz/60Hz(Auto sensing)
   Physical
   Protection Degree	IP20
   Dimension(W/H/D)	330x485x135mm
   Net Weight	11.5kg	12kg
   General Data
   Humidity	5% to 95% Relative Humidity(Non-condensing)
   Altitude	﹤2000m
   Operating temperature	0℃-55℃
   Storage Temperature
