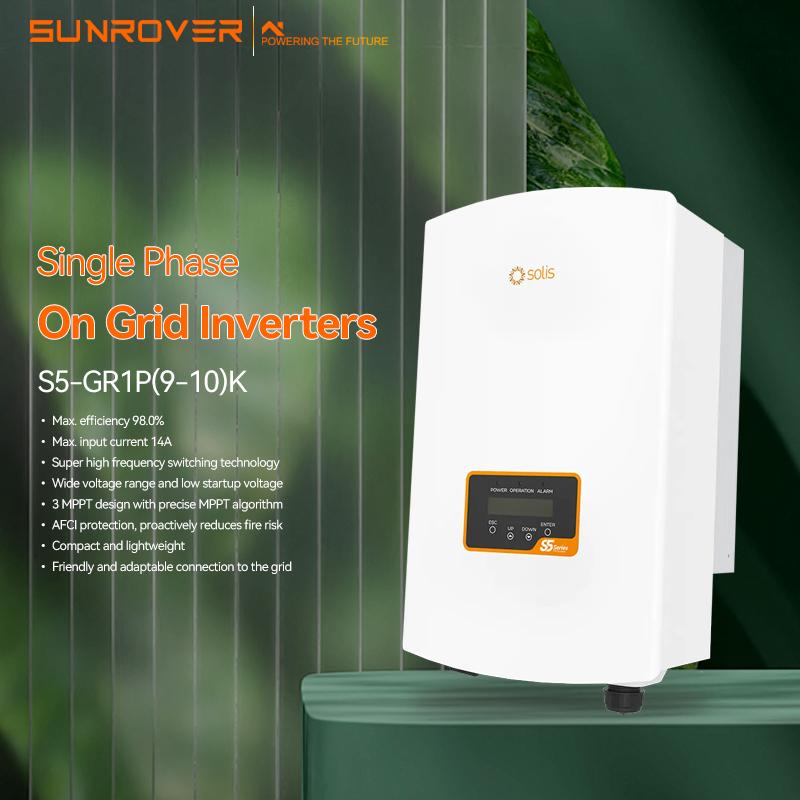

Models
|
9K
|
10K
|
|
Input DC
|
||
|
Recommended max. PV power
|
13.5 kW
|
15 kW
|
|
Max. input voltage
|
600 V
|
|
|
Rated voltage
|
330 V
|
|
|
Start-up voltage
|
120 V
|
|
|
MPPT voltage range
|
100-500 V
|
|
|
Max. input current
|
14 A / 14 A / 14 A
|
|
|
Max. short circuit current
|
22 A / 22 A / 22 A
|
|
|
MPPT number/Max. input strings number
|
3/3
|
|
|
Output AC
|
||
|
Rated output power
|
9 kW
|
10 kW
|
|
Max. apparent output power
|
9.9 kVA
|
10 kVA
|
|
Max. output power
|
9.9 kW
|
10 kW
|
|
Rated grid voltage
|
1/N/PE, 220 V / 230 V
|
|
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|
|
Rated grid output current
|
40.9 A / 39.1 A
|
45.5 A / 43.5 A
|
|
Max. output current
|
41.3 A
|
45.9 A
|
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
|
THDi
|
<3%
|
|
|
Efficiency
|
|
|
|
Max. efficiency
|
98.0%
|
|
|
EU efficiency
|
97.1%
|
|
|
Protection
|
|
|
|
DC reverse-polarity protection
|
Yes
|
|
|
Short circuit protection
|
Yes
|
|
|
Output over current protection
|
Yes
|
|
|
Surge protection
|
Yes
|
|
|
Grid monitoring
|
Yes
|
|
|
Anti-islanding protection
|
Yes
|
|
|
Temperature protection
|
Yes
|
|
|
Integrated AFCI 2.0
|
Optional
|
|
|
Integrated DC switch
|
Yes
|
|
|
General Data
|
|
|
|
Dimensions (W*H*D)
|
333*579*253 mm
|
|
|
Weight
|
18.5 kg
|
|
|
Topology
|
Transformerless
|
|
|
Self-consumption (night)
|
<1 W
|
|
|
Operating ambient temperature range
|
-25 ~ +60°C
|
|
|
Relative humidity
|
0-100%
|
|
|
Ingress protection
|
IP66
|
|
|
Noise emission (typical)
|
<30 dB(A)
|
|
|
Cooling concept
|
Natural convection
|
|
|
Max. operation altitude
|
4000 m
|
|
|
Grid connection standard
|
G99, EN 50549-1, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
|
|
|
Safety/EMC standard
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
|
|
|
Features
|
|
|
|
DC connection
|
MC4 connector
|
|
|
AC connection
|
OT Terminal
|
|
|
Display
|
LCD
|
|
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
|
