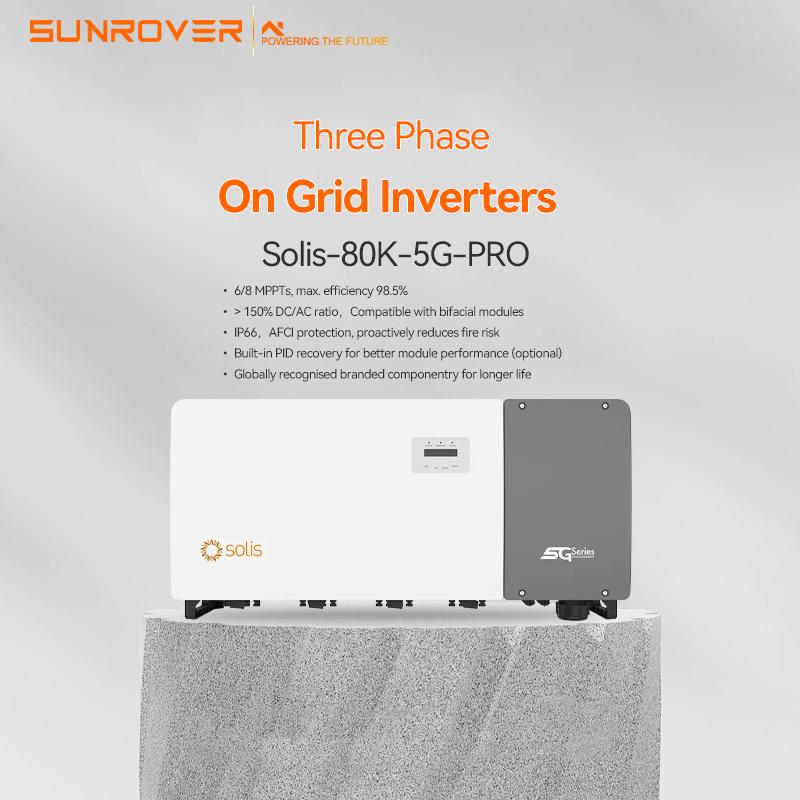

Models
|
80K
|
|
Input DC
|
|
|
Max. input voltage
|
1100 V
|
|
Rated voltage
|
600 V
|
|
Start-up voltage
|
180 V
|
|
MPPT voltage range
|
160-1000 V
|
|
Max. input current
|
3*(40 A / 32 A)
|
|
Max. short circuit current
|
6*50 A
|
|
MPPT number/Max. input strings number
|
6/12
|
|
Output AC
|
|
|
Rated output power
|
80 kW
|
|
Max. apparent output power
|
88 kVA
|
|
Max. output power
|
88 kW
|
|
Rated grid voltage
|
3/N/PE, 220 V / 380 V, 230 V / 400 V
|
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|
Rated grid output current
|
121.6 A / 115.5 A
|
|
Max. output current
|
133.7 A
|
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
<3%
|
|
Efficiency
|
|
|
Max. efficiency
|
98.5%
|
|
EU efficiency
|
98.0%
|
|
Protection
|
|
|
DC reverse-polarity protection
|
Yes
|
|
Short circuit protection
|
Yes
|
|
Output over current protection
|
Yes
|
|
Surge protection
|
DC Type II / AC Type II
|
|
Grid monitoring
|
Yes
|
|
Anti-islanding protection
|
Yes
|
|
Temperature protection
|
Yes
|
|
Strings monitoring
|
Yes
|
|
I/V Curve scanning
|
Yes
|
|
Integrated AFCI
|
Yes
|
|
Integrated PID recovery
|
Optional
|
|
Integrated DC switch
|
Yes
|
|
Integrated AC switch
|
Optional
|
|
General Data
|
|
|
Dimensions (W*H*D)
|
1065*585*363 mm
(with or without AC switch)
|
|
Weight
|
78 kg
|
|
Topology
|
Transformerless
|
|
Self-consumption (night)
|
<2 W
|
|
Operating ambient temperature range
|
-30 ~ +60°C
|
|
Relative humidity
|
0-100%
|
|
Ingress protection
|
IP66
|
|
Cooling concept
|
Intelligent redundant fan-cooling
|
|
Max. operation altitude
|
4000 m
|
|
Grid connection standard
|
G99, IEC61727, EN50549-1/2
|
|
Safety/EMC standard
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
|
|
Features
|
|
|
DC connection
|
MC4 connector
|
|
AC connection
|
OT terminal (max. 240 mm²)
|
|
Display
|
LCD
|
|
Communication
|
RS485, Optional: Wi-Fi, GPRS, PLC
|
