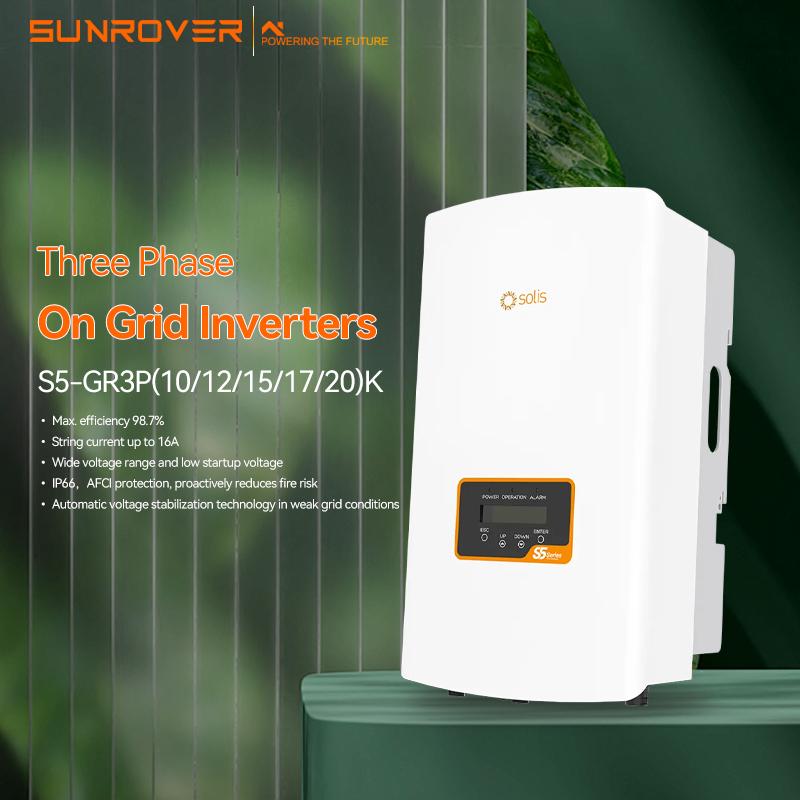

Models
|
10K
|
12K
|
15K
|
17K
|
20K
|
|
Input DC
|
|||||
|
Recommended max. PV power
|
15 kW
|
18 kW
|
22.5 kW
|
25.5 kW
|
30 kW
|
|
Max. input voltage
|
1100 V
|
||||
|
Rated voltage
|
600 V
|
||||
|
Start-up voltage
|
180 V
|
||||
|
MPPT voltage range
|
160-1000 V
|
||||
|
Max. input current
|
16 A / 16 A
|
32 A / 32 A
|
|||
|
Max. short circuit current
|
20 A / 20 A
|
40 A / 40 A
|
|||
|
MPPT number/Max. input strings number
|
2/2
|
2/4
|
|||
|
Output AC
|
|
|
|
|
|
|
Rated output power
|
10 kW
|
12 kW
|
15 kW
|
17 kW
|
20 kW
|
|
Max. apparent output power
|
11 kVA
|
13.2 kVA
|
16.5 kVA
|
18.7 kVA
|
22 kVA
|
|
Max. output power
|
11 kW
|
13.2 kW
|
16.5 kW
|
18.7 kW
|
22 kW
|
|
Rated grid voltage
|
3/N/PE, 220 V / 380 V, 230 V / 400 V
|
||||
|
Rated grid frequency
|
50 Hz / 60 Hz
|
||||
|
Rated grid output current
|
15.2 A /
14.4 A
|
18.2 A /
17.3 A
|
22.8 A /
21.7 A
|
25.8 A /
24.6 A
|
30.4 A /
28.9 A
|
|
Max. output current
|
15.9 A
|
19.1 A
|
23.8 A
|
27 A
|
31.8 A
|
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
||||
|
THDi
|
<2%
|
||||
|
Efficiency
|
|
|
|
|
|
|
Max. efficiency
|
98.5%
|
98.6%
|
98.7%
|
||
|
EU efficiency
|
97.9%
|
98.0%
|
98.1%
|
||
|
Protection
|
|
|
|
|
|
|
DC reverse-polarity protection
|
Yes
|
||||
|
Short circuit protection
|
Yes
|
||||
|
Output over current protection
|
Yes
|
||||
|
Surge protection
|
Yes
|
||||
|
Grid monitoring
|
Yes
|
||||
|
Anti-islanding protection
|
Yes
|
||||
|
Temperature protection
|
Yes
|
||||
|
Integrated AFCI 2.0
|
Optional
|
||||
|
Integrated DC switch
|
Yes
|
||||
|
General Data
|
|
|
|
|
|
|
Dimensions (W*H*D)
|
310*563*219 mm
|
||||
|
Weight
|
17.9 kg
|
19.6 kg
|
20.8 kg
|
||
|
Topology
|
Transformerless
|
||||
|
Self-consumption (night)
|
<1 W
|
||||
|
Operating ambient temperature range
|
-25 ~ +60°C
|
||||
|
Relative humidity
|
0-100%
|
||||
|
Ingress protection
|
IP66
|
||||
|
Noise emission (typical)
|
<30 dB(A)
|
<60 dB(A)
|
|||
|
Cooling concept
|
Natural convection
|
Intelligent redundant fan-cooling
|
|||
|
Max. operation altitude
|
4000 m
|
||||
|
Grid connection standard
|
G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 /
UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
|
||||
|
Safety/EMC standard
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
|
||||
|
Features
|
|||||
|
DC connection
|
MC4 connector
|
||||
|
AC connection
|
Quick connection plug
|
||||
|
Display
|
LCD
|
||||
|
Communication
|
RS485, Optional: Wi-Fi, GPRS
|
||||
