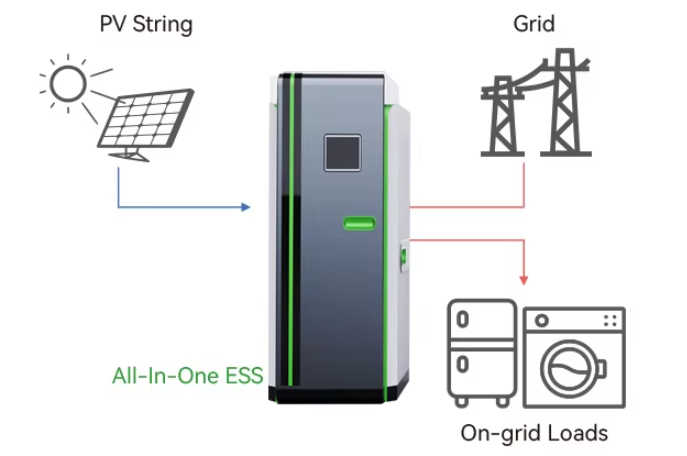

Work Modes-General Mode

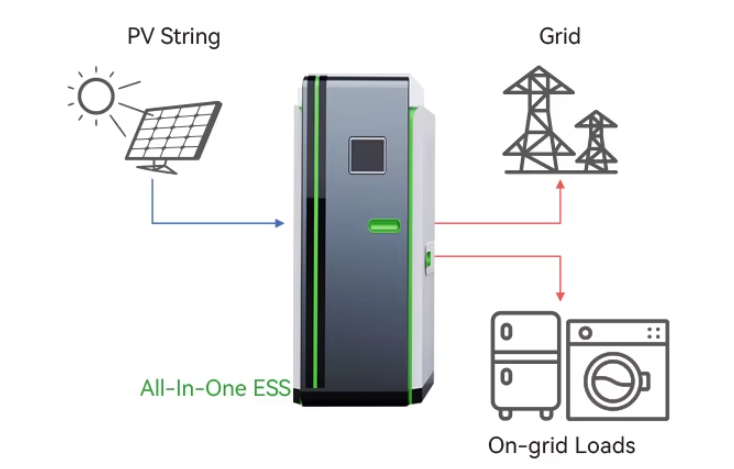

In general mode, when the PV power is sufficient, power from the PV will firstlysupply loads, then excess power charge battery, and any surplus power will befed to the grid.
In general mode, when the PV power is insufficient to satisfy loads, the battery will discharge power to fill the power gap,
and the grid will join in if it's still not enough.

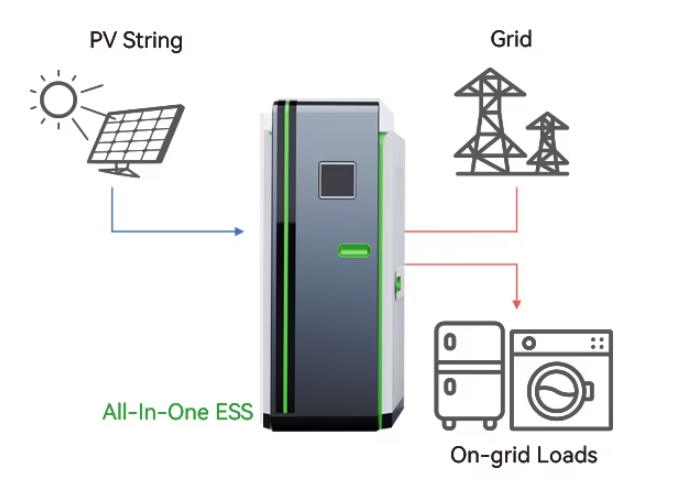

Work Modes-Peak Load shifting

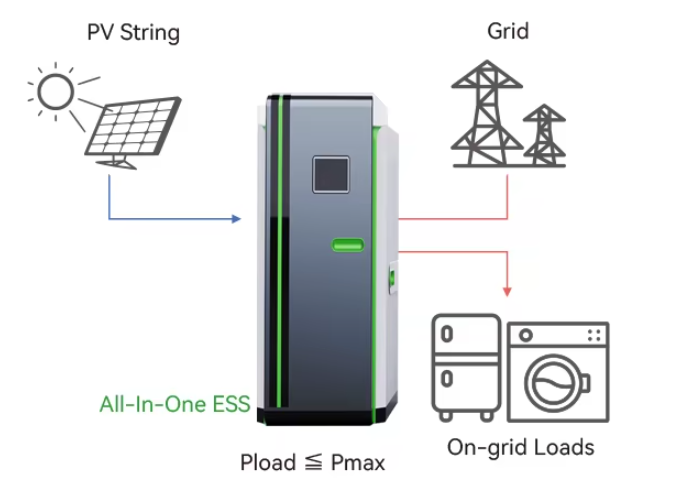

When the Pload ≦ Pmax(Power contracted with the grid), PV power will charge battery first and the load is supplied by the grid;
when the battery is full, PV will supply the load together with grid while battery doesn't.

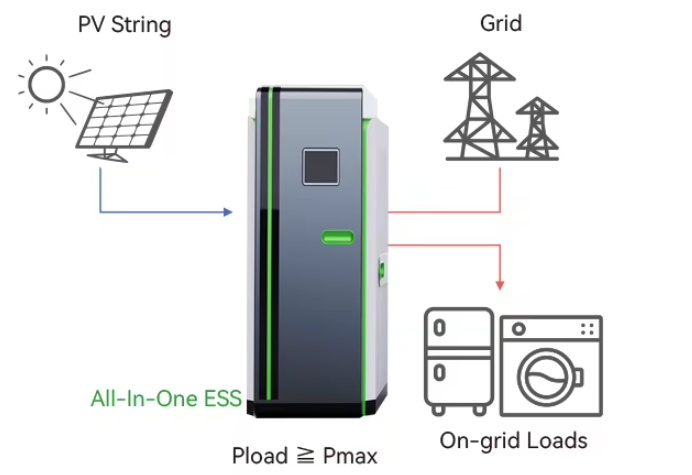

When the Pload ≧ Pmax(Power contracted with the grid), the inverter will take power from PV, battery and grid to offset the gap
power between Pmax and Pload

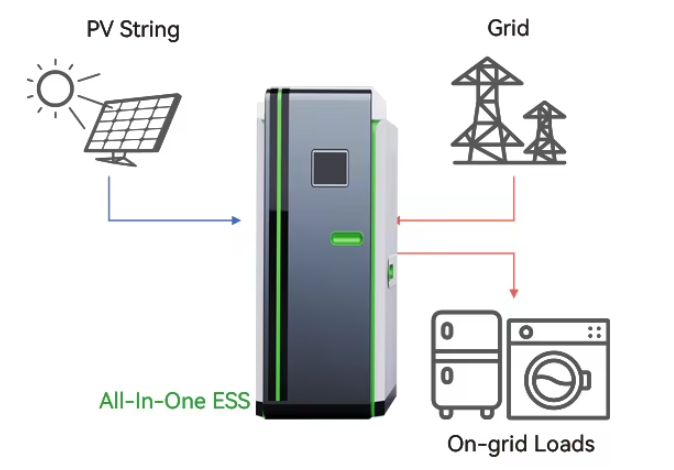

Work Modes-Economic Mode
This mode usually uses in the places where has peak and valley electricity prices to help customers optimize their energy cost. Customer can charge power from grid or PV in valley hours by setting on the App.
Customer can also discharge power in peak hours by setting on the App, and in this case, battery will discharge power
to supply loads or feed to grid.

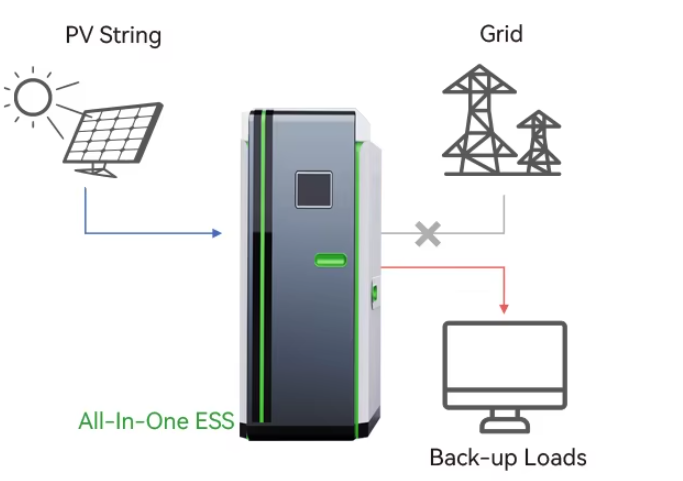

Work Modes-Ups Mode
In this working mode, power from PV will firstly charge the battery until it's full,and loads will be supplied by the
grid during charging period. Battery will not discharge power as long as grid is connected.
When the grid fails, and PV power is insufficient to meet the loads' consumption,the battery will take part in discharging
power to supply loads connected to the back- up port.
System Characteristics
Input: Support Generator
Build in Anti-feed-in Function UPS
Function: Switch Time < 10ms Smart Monitoring & Remote Firmware Upgrade
AFCI (OptiCooperate Inverter Brandsonal) & Rapid Shutdown Ready
