single phase on grid inverter for home use

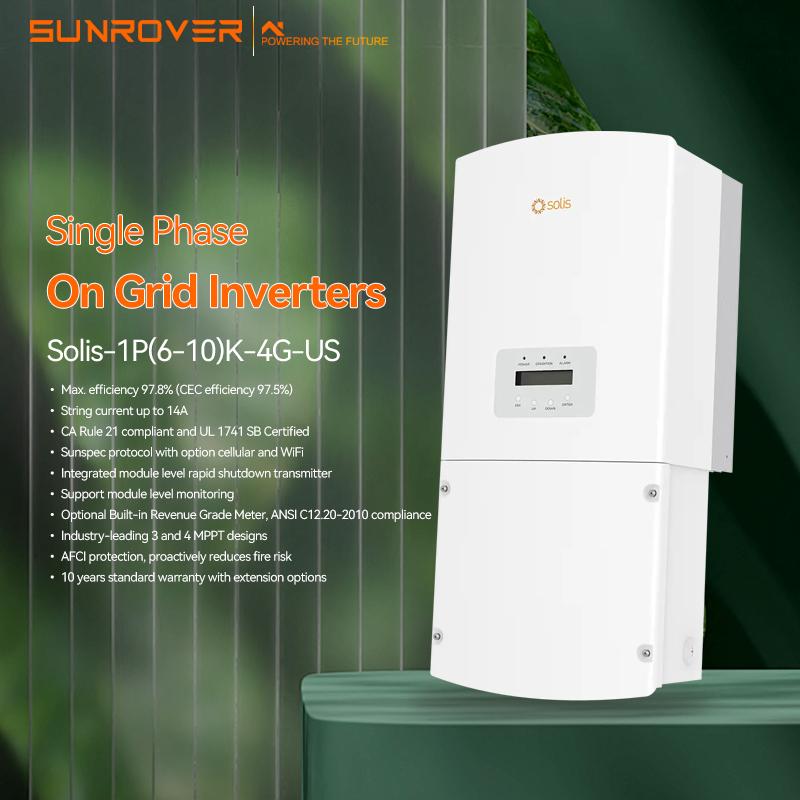

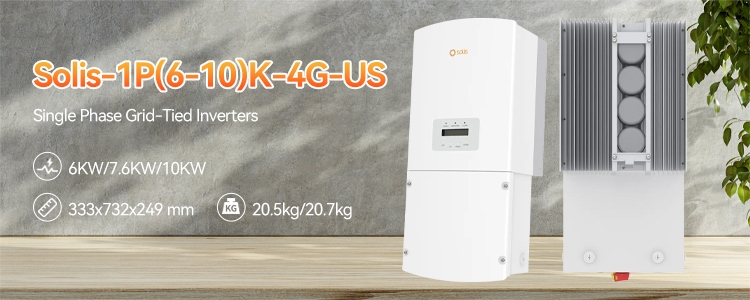

6KW 7.6KW 10KW US Market Solis Solar Inverter



  • Item NO.:

    Solis-1P(6-10)K-4G-US
  • Type:

    Grid-Tied Inverters
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Certificate:

    CE/TUV
  • Warranty:

    10 years

Solar  inverter

Features:
Max. efficiency 97.8% (CEC efficiency 97.5%)
String current up to 14A
CA Rule 21 compliant and UL 1741 SB Certified
Sunspec protocol with option cellular and WiFi
Integrated module level rapid shutdown transmitter
Support module level monitoring
Optional Built-in Revenue Grade Meter, ANSI C12.20-2010 compliance
Industry-leading 3 and 4 MPPT designs
AFCI protection, proactively reduces fire risk
10 years standard warranty with extension options
Models
6K
7.6K
10K
Input DC

Max. input voltage
600 V
Rated voltage
330 V
Start-up voltage
120 V
MPPT voltage range
100 - 500 V
Max. input current
14 A / 14 A / 14 A
14 A / 14 A / 14 A / 14 A
Max. short circuit current
22 A / 22 A / 22 A
22 A / 22 A / 22 A / 22 A
MPPT number/Max. input strings number
3/3
4/4
Output AC

Rated output power
6 kW
7.6 kW
10 kW
Max. apparent output power
6 kVA
7.6 kVA
10 kVA
Max. output power
6 kW
7.6 kW
10 kW
Rated grid voltage
1Ф/PE, 240 V / 208 V
Rated grid frequency
60 Hz
Max. output current for 240V grid
25 A
31.7 A
41.7 A
Max. output current for 208V grid
28.8 A
36.5 A
43.3 A
Power factor
>0.99 (0.8 leading - 0.8 lagging)
THDi
<3%
Efficiency

Max. efficiency
97.8%
CEC efficiency
97.5%
Protection

DC reverse-polarity protection
Yes
Ground fault monitoring
Yes
Anti-islanding protection
Yes
Integrated AFCI
Yes
Integrated DC switch
Yes
Rapid shutdown
Built-In APS or Tigo Transmitter
Surge Protection
DC Type III / AC Type III
Compliant MLRSD Products
TS4-A-F/2F/O, APSmart RSD-S / RSD-D
General Data

Dimensions (W*H*D)
13.1*28.8*9.8 in (333*732*249 mm)
Weight
45.2 lbs (20.5 kgs)
45.6 lbs (20.7 kgs)
Topology
Transformerless
Self-consumption (night)
<1 W
Relative humidity
0-100%
Operating ambient temperature range
-13°F to 140°F (-25°C to 60°C)
Storage environment
-13°F to 176°F (-25°C to 80°C)
Ingress protection
TYPE 4X
Noise emission (typical)
<30 dB(A)
Cooling concept
Natural convection
Max. operation altitude
13,120 ft (4000 m)
Compliance
UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB,
California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
Features

DC connection
2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, Screw clamp terminal
AC connection
2 knockout for 1"conduit at bottom, 4 knockout for 3/4"conduit at side and back, OT terminal
Display
LCD
Communication
RS485, Optional: Cellular, Wi-Fi
