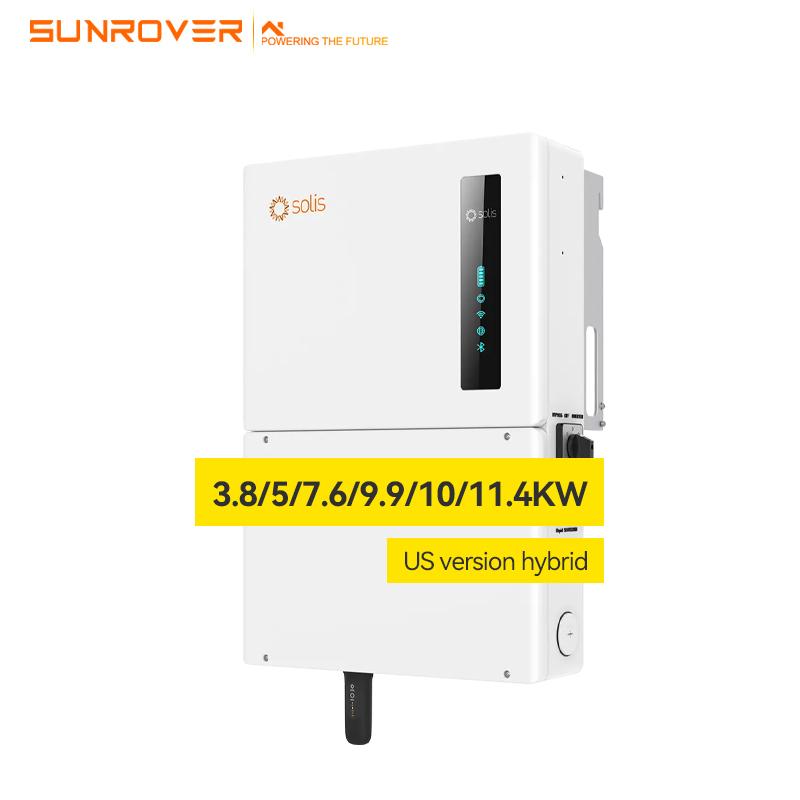

Solis Single Phase High Voltage Energy Storage Inverters

Solis 3.8KW 5KW 7.6KW 9.9KW 10KW 11.4KW  Energy Storage Inverters

  • Item NO.:

    S6-EH1P(3.8-11.4)K-H-US
  • Type:

    Energy Storage Inverter
  • Payment:

    T/T / L/C / Paypal / Western Union
  • Certificate:

    CE/TUV
  • Warranty:

    10 years

Solis US Inverter

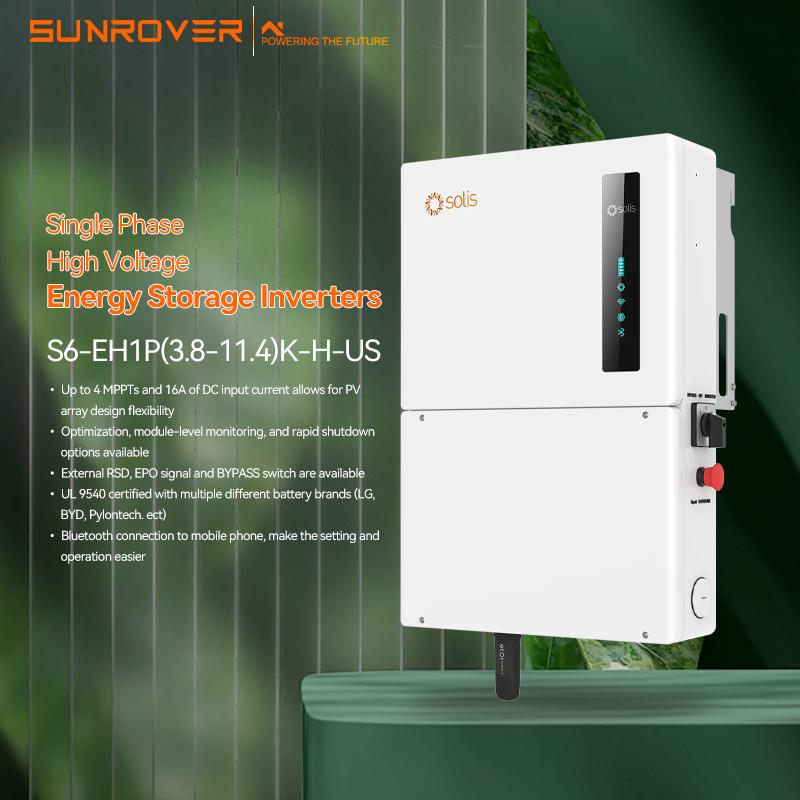

Features:
Up to 4 MPPTs and 16A of DC input current allows for PV array design flexibility
Optimization, module-level monitoring, and rapid shutdown options available
External RSD, EPO signal and BYPASS switch are available
UL 9540 certified with multiple different battery brands (LG, BYD, Pylontech. ect)
Bluetooth connection to mobile phone, make the setting and operation easier
Automatic UPS switching and up to 170% (130A) 300ms surge power back up overload
capacity support industral air conditioner
Intelligent AC coupling scheme, easily upgrade existing grid-connected systems
Whole-home backup, generator integration, and load shading function with the new SolisHub
Supports 1ph and 3ph flexible connection on both the Grid and Backup Port



Models
3.8K
5K
7.6K
9.9K
10K
11.4K
DC Input (PV)
Max. input voltage
600 V
Rated voltage
380 V
Start-up voltage
80 V
MPPT voltage range
80-520 V
Max. input current per string
16 A
Max. short circuit current per string
25.6 A
Number of MPPTs/Number of strings per MPPT
2/1
3/1
4/1
Energy Storage
Battery type
Lithium-ion
Battery voltage range
120-500 V
Maximum charge/discharge current
25 A
50 A
Battery communication
CAN/RS485
Number of batteries per inverter
See Battery Compatibility Sheet
AC Output (Grid)
Rated output power
3.8 kW
5 kW
7.6 kW
9990 W
10 kW
11.4 kW
Max. apparent output power
3.8 kVA
5 kVA
7.6 kVA
9990 VA
10 kVA
11.4 kVA
Rated output voltage
240 V
Rated frequency
60 Hz
Rated output current
15.8 A
20.8 A
31.7 A
41.7 A
41.7 A
47.5 A
Max. output current
15.8 A
20.8 A
31.7 A
41.7 A
41.7 A
47.5 A
THDi
<3%
AC Input (Grid)
Input voltage range
211-264 V
Max. input current
23.8 A
31.2 A
47.6 A
62.6 A
62.6 A
71.3 A
Frequency range
58.8-61.2 Hz
AC Output (Backup and Off-grid)
Rated output power
3.8 kW
5 kW
7.6 kW
9990 W
10 kW
11.4 kW
Max. apparent output power
6.1 kVA, 10 sec
8 kVA, 10 sec
12.2 kVA, 10 sec
16 kVA, 10 sec
16 kVA, 10 sec
18.2 kVA, 10 sec
Back-up switch time
<10 ms
Phase Power
240 V Split-Phase
Rated output voltage (L1-L2)
240 V
AC output voltage range
211-264 V
Rated grid frequency
60 Hz
Frequency range
55-65 Hz
Rated AC output current
15.8 A
20.8 A
31.7 A
41.7 A
41.7 A
47.5 A
Max. output overcurrent protection, 10 sec
25.4 A
33.3 A
50.7 A
66.7 A
66.7 A
76 A
Max. allowable phase imbalance
100%
Backup support configurations
Whole-home and dedicated loads
Power factor
>0.99 (0.8 leading - 0.8 lagging)
THDv (@linear load)
<3%
Efficiency
PV Max. efficiency
97.0%
97.6%
PV CEC efficiency
96.5%
97.0%
Battery charged by PV Max. efficiency
98.5%
Battery charged/discharged to AC Max. efficiency
97.0%
Protection
Ground fault detection
Yes
Residual (leakage) current detection
Yes
Integrated AFCI
Yes
DC reverse-polarity protection
Yes (PV only)

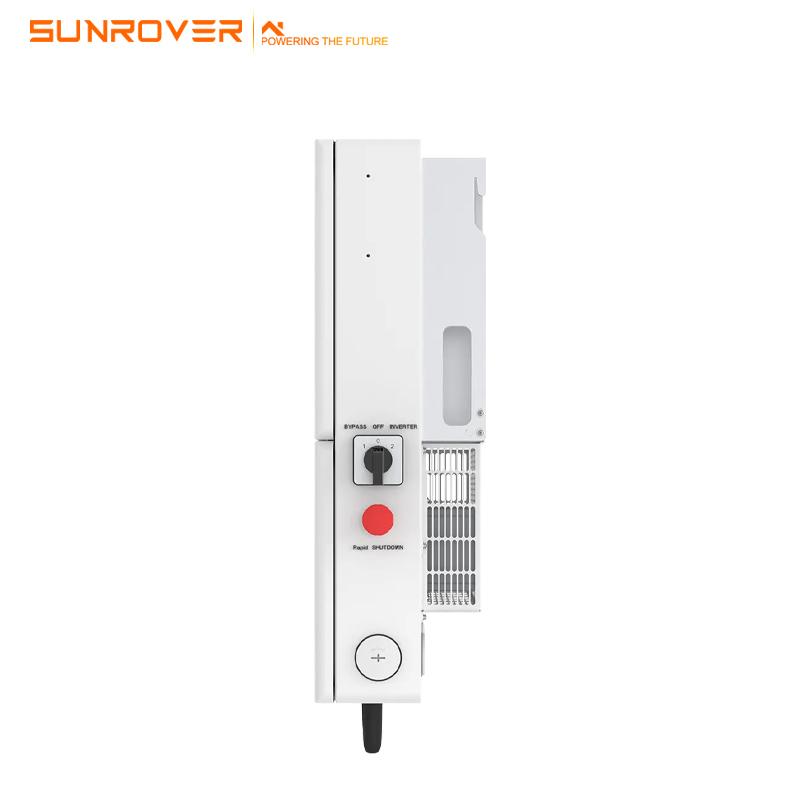

Manual inverter bypass switch
Yes
Rapid Shutdown NEC 2017
Integrated SunSpec-certified Transmitter
Compatible RSD Receivers
See MLRSD Compatibility Sheet
Protection class/Over voltage category
I/II

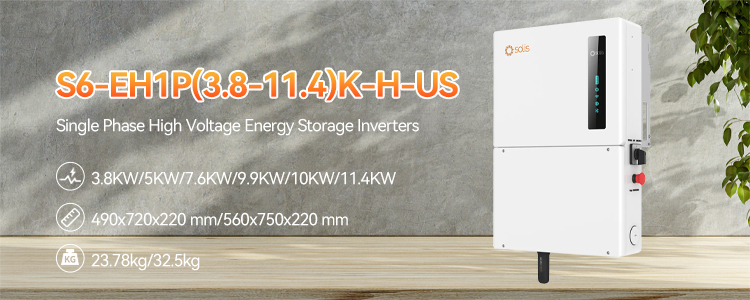

General Data
Dimensions (W*H*D)
19.21*28.35*8.66 in (490*720*220 mm)
22.05*29.53*8.66 in (560*750*220 mm)
Weight
52.43 lbs lbs (23.78 kgs)
71.74 lbs (32.54 kgs)
Topology
Transformerless
Self-consumption (night)
< 20 W
Operating ambient temperature range
-13 °F to 140 °F (-25°C to 60°C)
Ingress protection
TYPE 4X

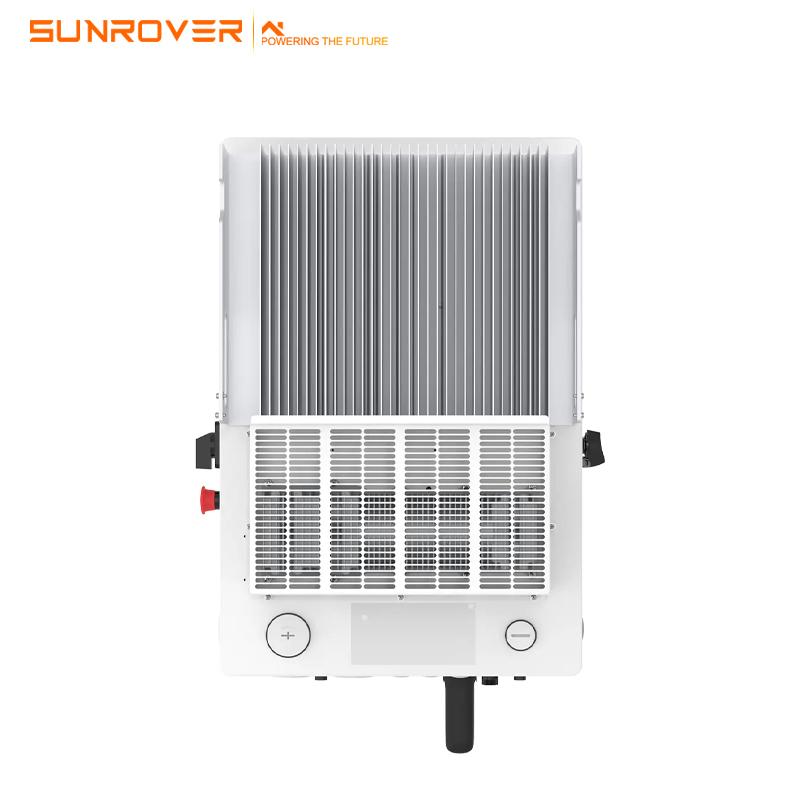

Cooling method
Natural convection
Mounting type
Wall Bracket
Max. operation altitude
13,120 ft (4000 m)
Compliance
UL 1741, UL 1741SB, IEEE1547-2018&2020, UL 1699B, UL 1998,
California Rule 21, NEC 690.12-2020, CAN/CSA C22.2107.1-1, FCC Part 15 Class B
Generator support
Yes; up to 25 kW (with a Solis Hub)
Features

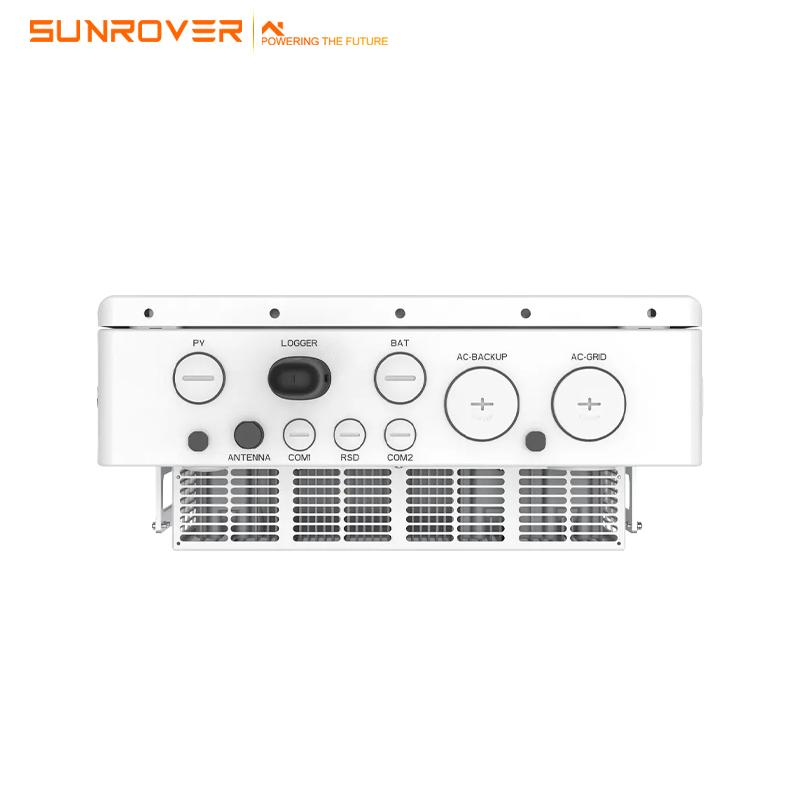

DC connection
1 in. knockouts for conduit (x2) on the side and bottom; Spring clamp terminals
AC connection
1.5 in. knockouts for conduit (x3) on the side and bottom; Spring clamp terminals
Interface
LED indicator lights, Bluetooth/Mobile application
Monitoring platform
SolisCloud (modbus map and API sharing available upon request)
Revenue Grade Meter
Integrated ANSI C12.20 option
Communication
RS485, Cellular, Wi-Fi, Optional: LAN
Integrated RSD Transmitter Brands
See the MLRSD Compatibility Sheet
