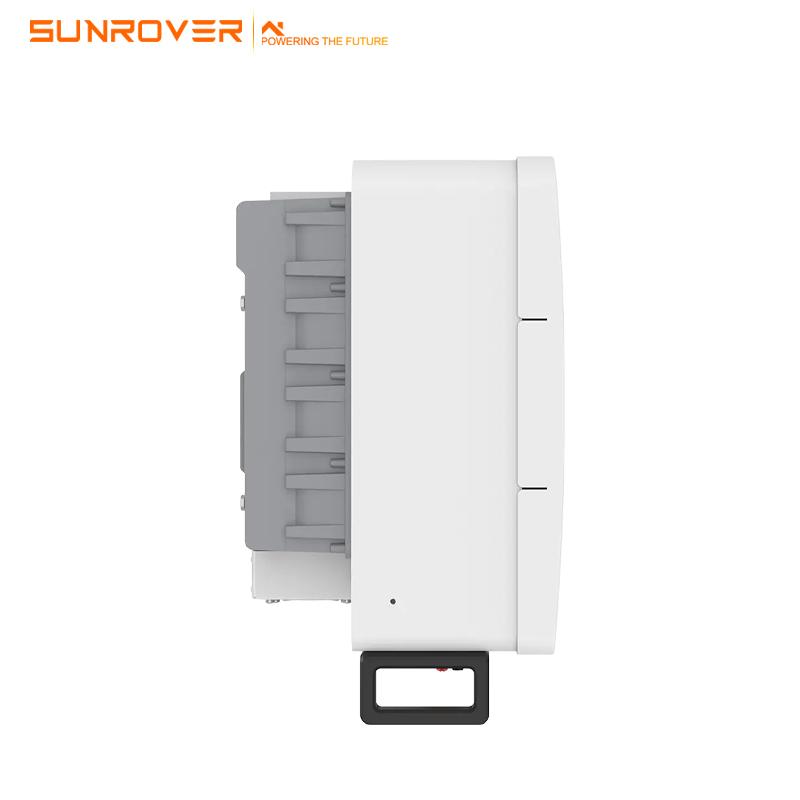

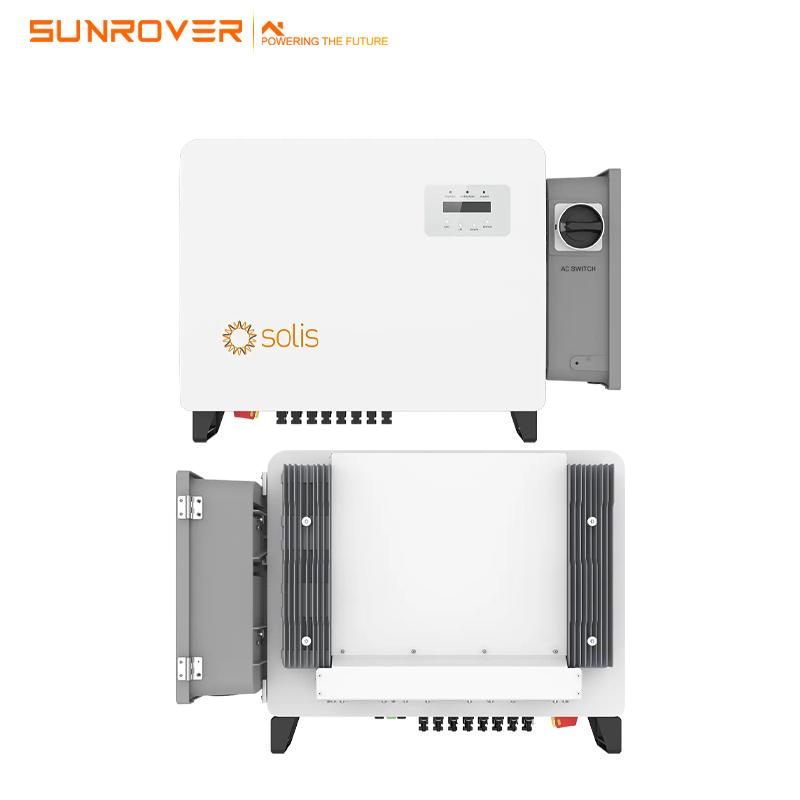

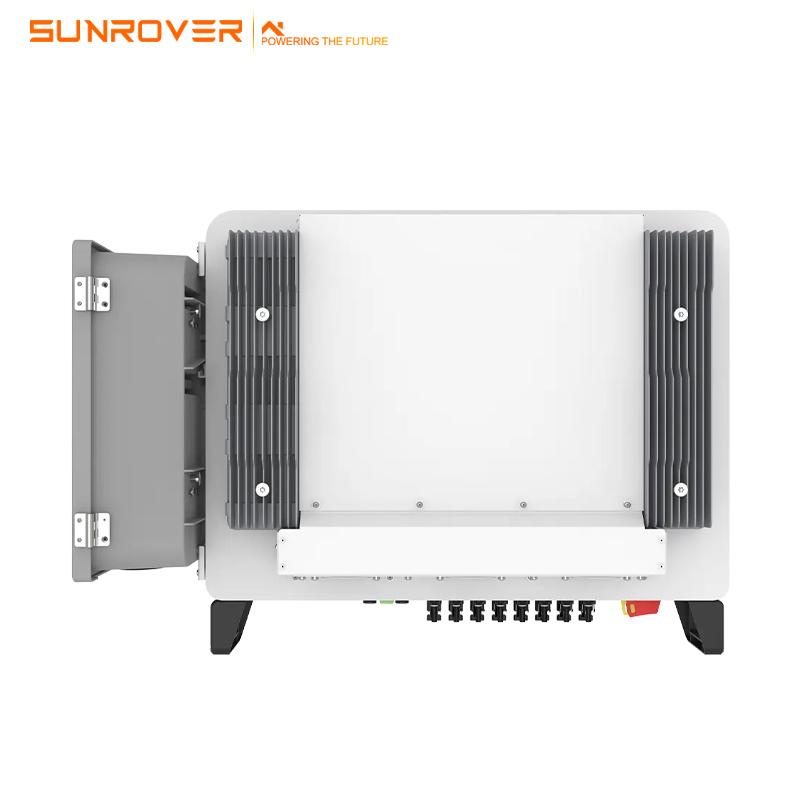

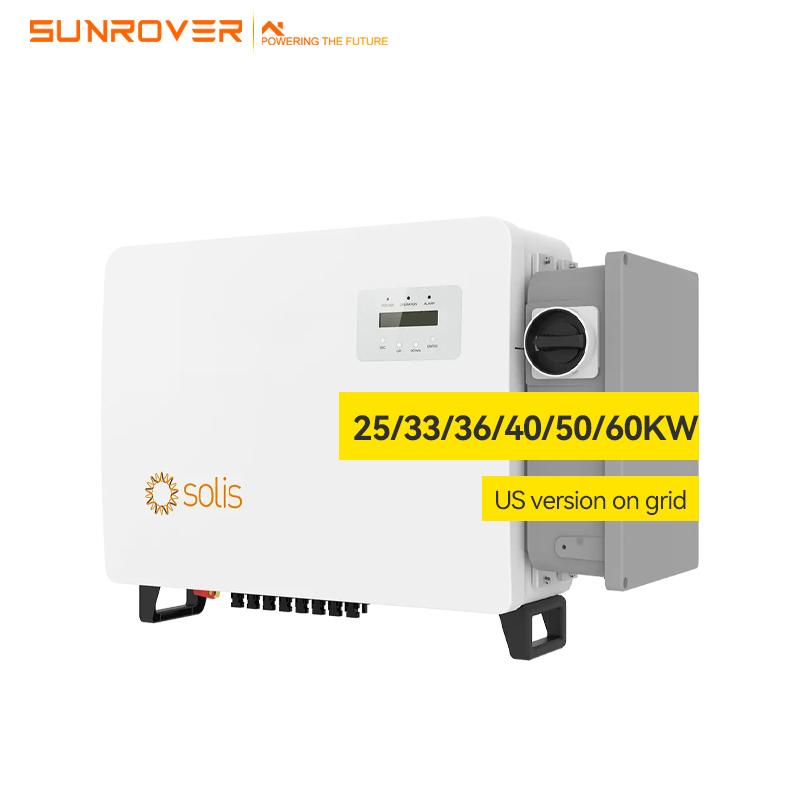

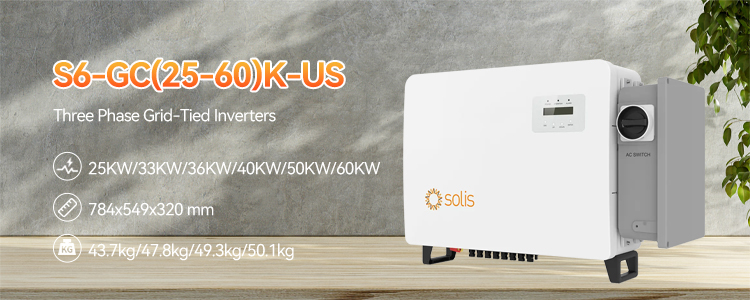

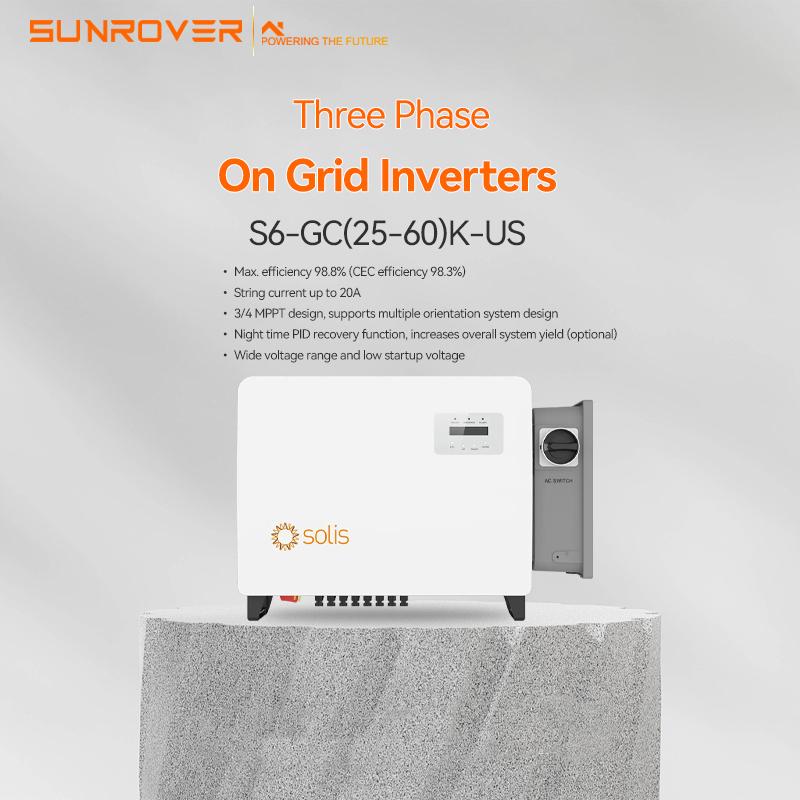

25KW 33KW 36KW 40KW 50KW 60KW Solis Inverter For Photovoltaic System
25KW 33KW 36KW 40KW 50KW 60KW Solis Inverter For Photovoltaic System
Item NO.:
S6-GC(25-60)K-USType:
Grid-Tied InverterPayment:
T/T / L/C / Paypal / Western UnionCertificate:
CE/TUVWarranty:
10 years
|
Models
|
25K
|
33K
|
36K
|
40K
|
50K
|
60K
|
|
Input DC
|
||||||
|
Max. input voltage
|
1000 V
|
|||||
|
Rated voltage
|
720 V
|
|||||
|
Start-up voltage
|
180 V
|
|||||
|
MPPT voltage range
|
180-1000 V
|
|||||
|
Max. input current
|
3*40 A
|
4*40 A
|
||||
|
Max. short circuit current
|
3*63 A
|
4*63 A
|
||||
|
MPPT number/Max. input strings number
|
3/6
|
4/8
|
||||
|
Output AC
|
||||||
|
Rated output power
|
25 kW
|
33 kW
|
36 kW
|
40 kW
|
50 kW
|
60 kW
|
|
Max. apparent output power
|
25 kVA
|
33 kVA
|
36 kVA
|
40 kVA
|
50 kVA
|
60 kVA
|
|
Max. output power
|
25 kW
|
33 kW
|
36 kW
|
40 kW
|
50 kW
|
60 kW
|
|
Rated grid voltage
|
3Ф/PE, 480 V
|
|||||
|
Rated grid frequency
|
60 Hz
|
|||||
|
Max. output current
|
30.1 A
|
39.7 A
|
43.3 A
|
48.1 A
|
60.1 A
|
72.2 A
|
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|||||
|
THDi
|
<3%
|
|||||
|
Efficiency
|
||||||
|
Max. efficiency
|
98.8%
|
|||||
|
CEC efficiency
|
98.3%
|
|||||
|
Protection
|
||||||
|
DC reverse-polarity protection
|
Yes
|
|||||
|
Short circuit protection
|
Yes
|
|||||
|
Output over current protection
|
Yes
|
|||||
|
Surge protection
|
DC Type II / AC Type II
|
|||||
|
Grid monitoring
|
Yes
|
|||||
|
Anti-islanding protection
|
Yes
|
|||||
|
Temperature protection
|
Yes
|
|||||
|
Strings monitoring
|
Yes
|
|||||
|
I/V Curve scanning
|
Yes
|
|||||
|
Integrated AFCI
|
Yes
|
|||||
|
Integrated PID recovery
|
Optional
|
|||||
|
Integrated DC switch
|
Yes
|
|||||
|
Integrated AC switch
|
Yes
|
|||||
|
General Data
|
||||||
|
Dimensions (W*H*D)
|
30.9*21.6*12.6 in (784*549*320 mm)
|
|||||
|
Weight
|
96.3 lbs (43.7 kgs)
|
105.4 lbs (47.8 kgs)
|
108.7 lbs (49.3 kgs)
|
110.5 lbs (50.1 kgs)
|
||
|
Topology
|
Transformerless
|
|||||
|
Self-consumption (night)
|
<1 W
|
|||||
|
Relative humidity
|
0-100%
|
|||||
|
Operating ambient temperature range
|
-13°F to 140°F (-25°C to 60°C)
|
|||||
|
Ingress protection
|
TYPE 4X
|
|||||
|
Noise emission (typical)
|
≤55 dB(A)
|
|||||
|
Cooling concept
|
Natural convection
|
|||||
|
Max. operation altitude
|
13,120 ft (4000 m)
|
|||||
|
Compliance
|
UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB,
California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
|
|||||
|
Features
|
||||||
|
DC connection
|
MC4 connector
|
|||||
|
AC connection
|
OT terminal (4 AWG to 3/0 AWG)
|
|||||
|
Display
|
LCD
|
|||||
|
Communication
|
Modbus RTU (Sunspec compliant), RS485, Optional: Cellular, Wi-Fi
|
|||||
