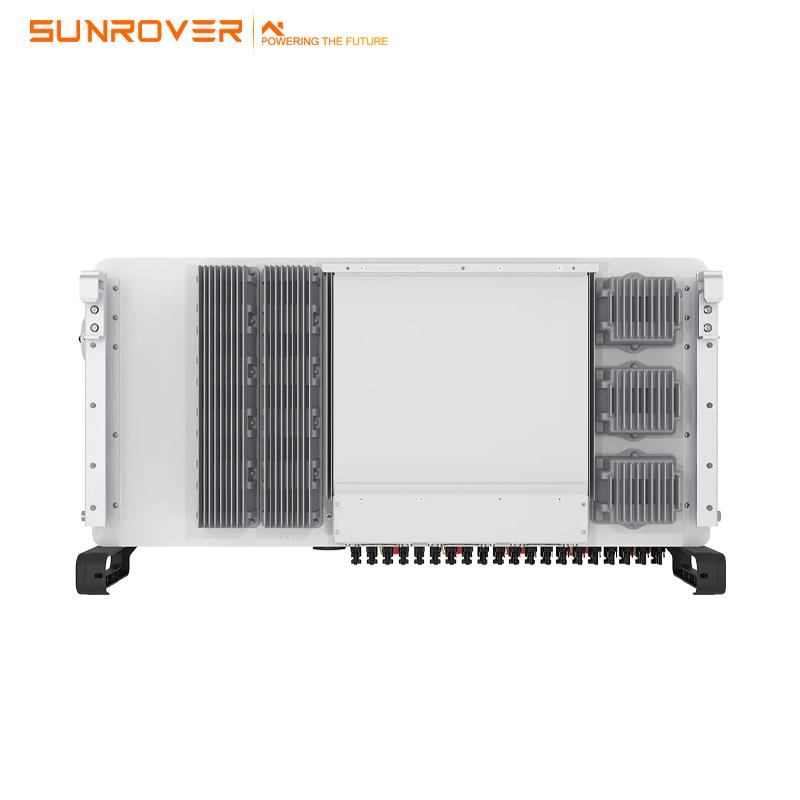

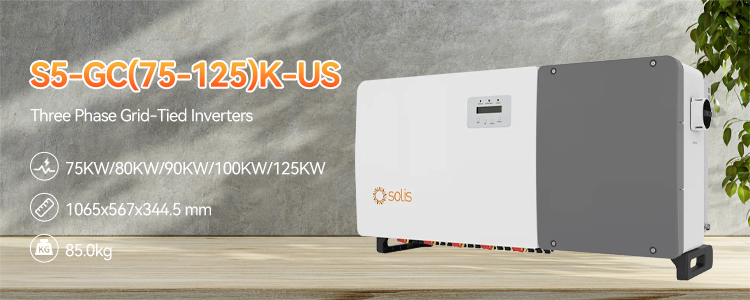

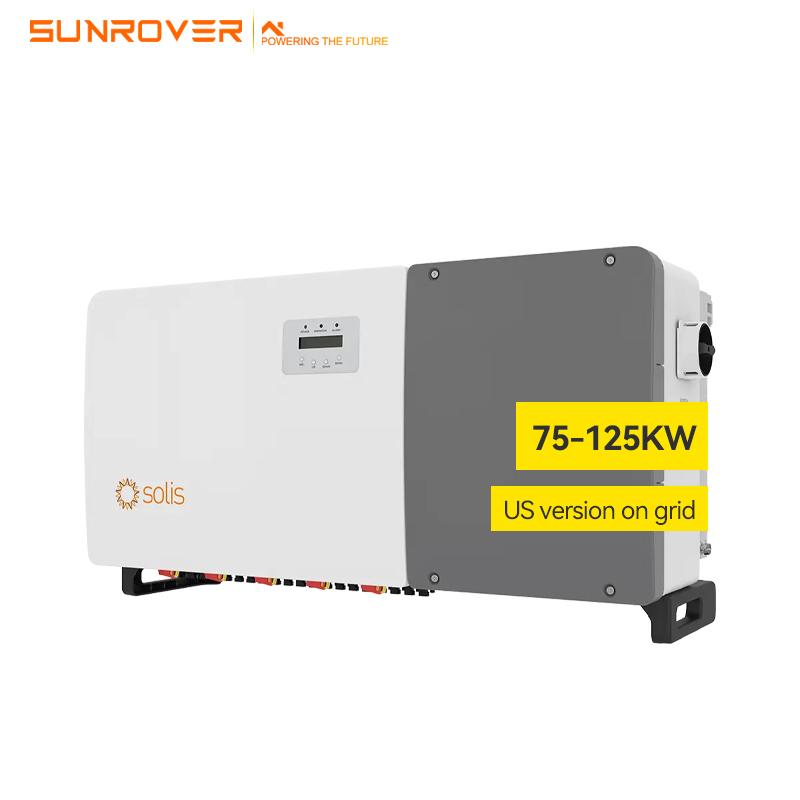

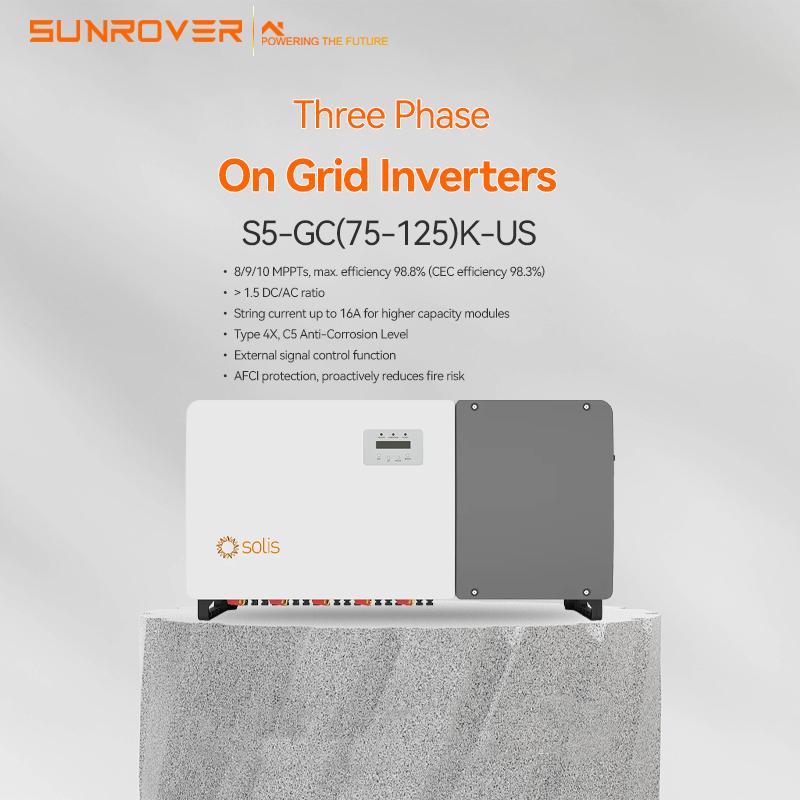

75KW 80KW 90KW 100KW 125KW Solis Inverter Price Supplier
Brand:
SunroverItem NO.:
S5-GC(75-125)K-USType:
Grid-Tied InvertersMax.Power:
125KWPayment:
T/T / L/C / Paypal / Western UnionCertificate:
CE/TUVWarranty:
10 years
|
Models
|
75K
|
80K
|
90K
|
100K
|
125K
|
|
Input DC
|
|||||
|
Max. input voltage
|
1000 V
|
||||
|
Rated voltage
|
600 V
|
720 V
|
|||
|
Start-up voltage
|
195 V
|
||||
|
MPPT voltage range
|
180-1000 V
|
||||
|
Max. input current
|
8*32 A
|
9*32 A
|
10*32 A
|
||
|
Max. short circuit current
|
8*50 A
|
9*50 A
|
10*50 A
|
||
|
MPPT number/Max. input strings number
|
8/16
|
9/18
|
10/20
|
||
|
Output AC
|
|||||
|
Rated output power
|
75 kW
|
80 kW
|
90 kW
|
100 kW
|
125 kW
|
|
Max. apparent output power
|
75 kVA
|
80 kVA
|
90 kVA
|
100 kVA
|
125 kVA
|
|
Max. output power
|
75 kW
|
80 kW
|
90 kW
|
100 kW
|
125 kW
|
|
Rated grid voltage
|
3Ф/PE, 480 V
|
||||
|
Rated grid frequency
|
60 Hz
|
||||
|
Max. output current
|
90.2 A
|
96.2 A
|
108.3 A
|
120.3 A
|
150.4 A
|
|
Power Factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
||||
|
THDi
|
<3%
|
||||
|
Efficiency
|
|||||
|
Max. efficiency
|
98.7%
|
98.8%
|
|||
|
CEC efficiency
|
98.3%
|
98.2%
|
|||
|
Protection
|
|||||
|
DC reverse-polarity protection
|
Yes
|
||||
|
Surge protection
|
DC Type II / AC Type II
|
||||
|
Ground fault monitoring
|
Yes
|
||||
|
Anti-islanding protection
|
Yes
|
||||
|
Strings monitoring
|
Yes
|
||||
|
I/V Curve scanning
|
Yes
|
||||
|
Rapid shutdown
|
Yes
|
||||
|
Integrated AFCI
|
Yes
|
||||
|
Integrated PID recovery
|
Yes
|
||||
|

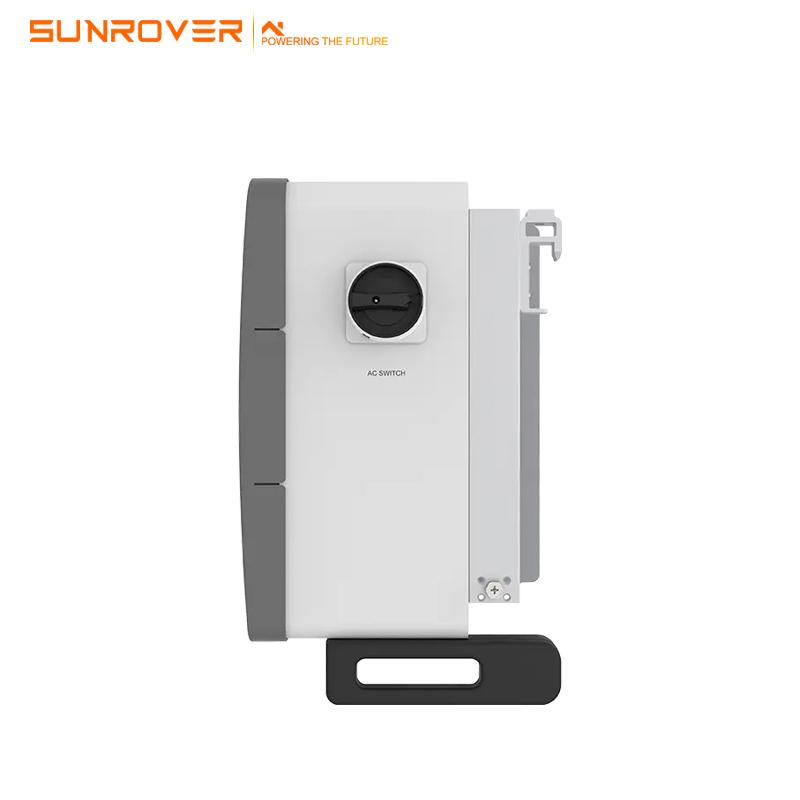

AC switch
|
Yes
|
||||
|
General Data
|
|
||||
| Dimensions (W*H*D) |
41.9*22.3*13.6 in (1065*567*344.5 mm)
|
||||
| Weight |
187 lbs (85 kgs)
|
200 lbs (91 kgs)
|
|||
| Topology |
Transformerless
|
||||
|
Self-consumption (night)
|
<2 W
|
||||
|
Relative humidity
|
0-100%
|
||||
| Operating ambient temperature range |
-22°F to 140°F (-30°C to +60°C )
|
||||
| Storage environment |
-40°F to 176°F (-40°C to 80°C)
|
||||
| Ingress protection |
TYPE 4X
|
||||
| Cooling concept |
Intelligent redundant fan-cooling
|
||||
| Max. operation altitude |
13,120 ft (4000 m)
|
||||
| Compliance |
UL1741SB, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB,
California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
|
||||
|

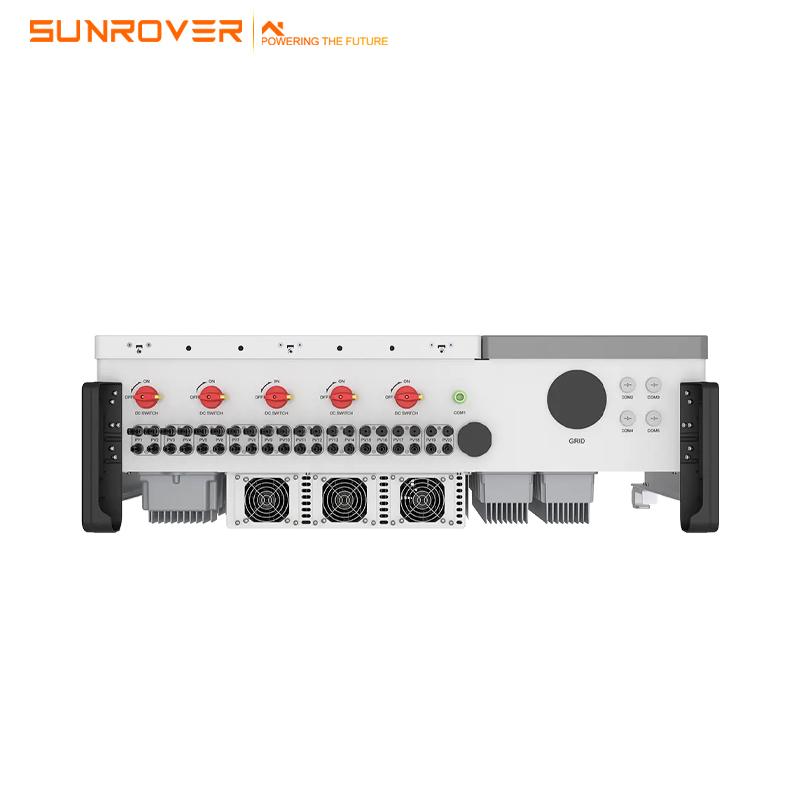

Features
|
|||||
|
DC connection
|
MC4 connector
|
||||
|
AC connection
|
OT Terminal (max. 350 MCM)
|
||||
|
Display
|
LCD
|
||||
|
Communication
|
RS485, Optional: Wi-Fi, Cellular
|
||||
